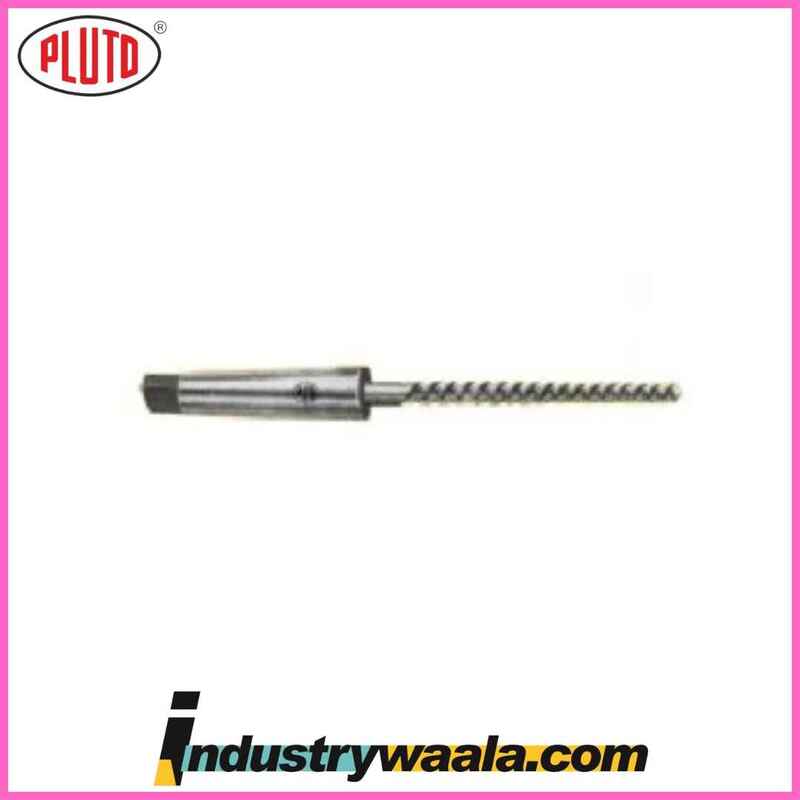

Pluto 7/32 X 3.3/16 X 6.1/8 X 0.220 Inch Machine Taper Pin Reamers

The Pluto 7/32 X 3.3/16 X 6.1/8 X 0.220 Inch Machine Taper Pin Reamers is a precision tool designed for reaming tapered holes to accommodate 7/32 inch taper pins. These taper pin reamers are essential for ensuring precise hole alignment and providing a secure fit for taper pins, which are widely used in mechanical and industrial applications for part alignment, fastening, and assembly.

This reamer is constructed from High-Speed Steel (HSS), offering excellent durability, heat resistance, and long-lasting performance during high-speed machining operations.

Pluto 7/32 X 3.3/16 X 6.1/8 X 0.220 Inch Machine Taper Pin Reamers

Key Specifications:

• Diameter:
  • 7/32 inch (0.21875") – Designed to ream holes that accommodate 7/32 inch taper pins. These pins are typically used for aligning components in mechanical, automotive, and industrial machinery.
• Flute Length:
  • 3.3/16 inches (3.1875") – The extended flute length ensures effective chip removal, reducing the risk of clogging and enabling smoother, more efficient reaming operations.
• Overall Length:
  • 6.1/8 inches (6.125") – The overall length allows for deeper hole reach, providing flexibility for a wide range of machining applications, including those that require longer reamers.
• Taper Pin Reamer Dimensions:
  • Major Diameter: 0.220 inches – The major diameter matches the broader end of the taper pin hole, ensuring the correct fit for the 7/32 inch taper pin.
  • Minor Diameter: Typically, the minor diameter would be slightly smaller, fitting the narrower end of the taper pin, ensuring a precise and snug fit.
• Material:
  • High-Speed Steel (HSS) – Known for its ability to withstand high temperatures and maintain sharp cutting edges, HSS makes the reamer suitable for working with a wide range of tough materials, including steel, aluminum, and cast iron.
• Shank Type:
  • Machine Reamer – This reamer is designed for use with machine tools such as drill presses, milling machines, and lathes, ensuring consistent, high-precision results across a range of applications.

Applications:

The Pluto 7/32 X 3.3/16 X 6.1/8 X 0.220 Inch Machine Taper Pin Reamer is ideal for applications where 7/32 inch taper pins are used to align, fasten, or secure parts. Some common applications include:

1. Machine Assembly:
   The reamer is essential for creating tapered holes to fit 7/32 inch taper pins used in machine components. These pins are crucial for ensuring the precise alignment of parts in mechanical and industrial machinery.
2. Toolmaking:
   Toolmakers use these reamers for creating tapered holes in tools, fixtures, and jigs where 7/32 inch taper pins are used to align components during the manufacturing process.
3. Automotive:
   In the automotive industry, 7/32 inch taper pins are often used for securing and aligning parts in machinery, engines, and chassis components. This reamer ensures the necessary precision for high-performance automotive manufacturing.
4. Aerospace:
   Aerospace components often rely on precision parts, and taper pins are used for critical alignments. The Pluto 7/32 X 3.3/16 X 6.1/8 X 0.220 Inch Machine Taper Pin Reamer ensures the accurate hole size needed for taper pins in aircraft and space vehicle assemblies.
5. General Engineering:
   This reamer is widely used in general engineering and manufacturing industries to create precise tapered holes for 7/32 inch taper pins that are essential for part alignment and fastening.

Advantages:

1. Precision:
   The reamer ensures that 7/32 inch taper pins fit snugly into the reamed holes, providing a secure and precise alignment for parts in mechanical assemblies.
2. Durability:
   Constructed from High-Speed Steel (HSS), this reamer is designed to withstand high temperatures and retain its cutting edge even during prolonged use, offering a longer tool life.
3. Efficient Chip Removal:
   The reamer’s long flute length ensures efficient removal of chips, minimizing clogging and allowing for smoother operation during reaming, which enhances the overall machining process.
4. Versatility:
   This reamer is capable of working with various materials, including steel, cast iron, and aluminum, making it versatile and suitable for a wide range of industrial applications.
5. Smooth Finish:
   The reamer produces a clean, smooth, and accurate hole with minimal burrs, reducing the need for secondary operations such as deburring and improving the overall quality of the finished part.
6. Machine Tool Compatibility:
   Designed for use with various machine tools, the reamer provides reliable, repeatable results across different machining setups, whether for high-volume production or custom work.

Conclusion:

The Pluto 7/32 X 3.3/16 X 6.1/8 X 0.220 Inch Machine Taper Pin Reamer is an essential tool for creating precision tapered holes for 7/32 inch taper pins. With its HSS construction, efficient chip removal, and smooth reaming performance, this reamer is ideal for machine assembly, toolmaking, automotive, aerospace, and general engineering applications.

Its precision, durability, and versatility make it a crucial component for ensuring proper alignment and secure fastening of parts in a variety of industries.
