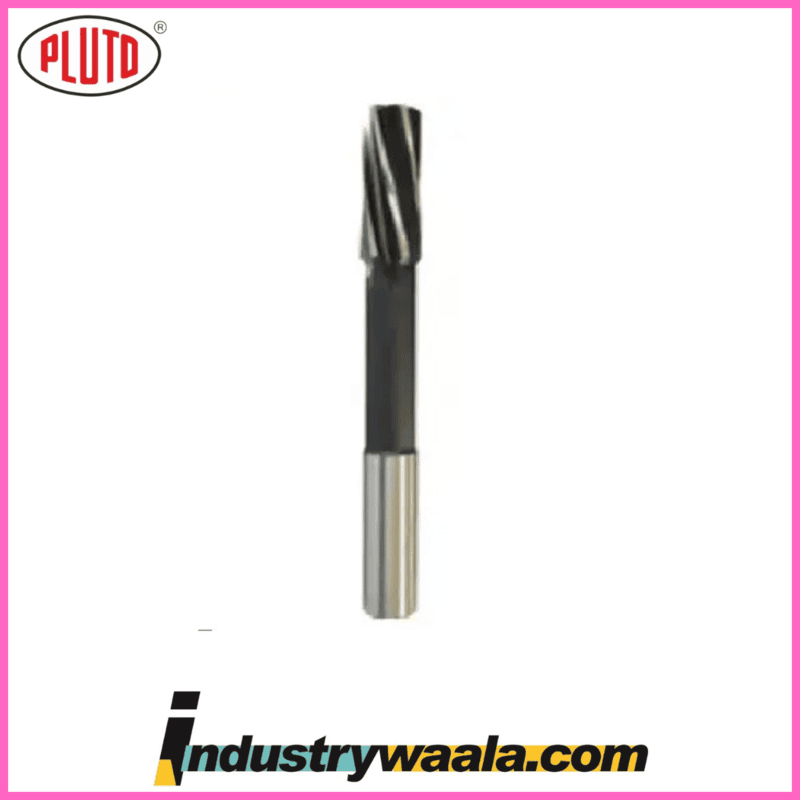

Pluto 1/4 X 3.3/8 X 4.5/8 X 0.253 X 0.1827 Inch Hand Taper Pin Reamers

Product Description for Pluto 1/4" X 3-3/8" X 4-5/8" X 0.253" X 0.1827" Hand Taper Pin Reamers:

Pluto Hand Taper Pin Reamers are precision tools designed for creating and finishing tapered holes, specifically for taper pins. Tapered holes are often used in various types of mechanical assemblies where parts need to be securely joined with a tapered pin. These reamers are typically used manually or in lathes and other machine tools to finish or enlarge the hole to a precise size and taper.

Key Features:

1. Cutting Diameter (1/4"):
   • The 1/4" refers to the initial diameter at the small end (smallest diameter) of the taper pin reamer. This is the starting size that the reamer is intended to cut, designed to produce the correct hole size for the corresponding taper pin.
2. Taper Lengths (3-3/8" and 4-5/8"):
   • 3-3/8" and 4-5/8" likely represent the overall lengths of the reamer, or the tapered cutting section. These lengths determine how deep the reamer can cut and how much of a taper it can achieve.
   • These lengths suggest the reamer is designed for creating deeper tapers, ideal for pin applications requiring a precise fit.
3. Cutting Edge Diameters (0.253" and 0.1827"):
   • The 0.253" and 0.1827" measurements likely correspond to specific points on the reamer where the diameter changes. These are critical to producing the correct taper geometry:
     • 0.253" may correspond to a section of the reamer or the diameter of the hole at a certain length along the taper.
     • 0.1827" might represent the diameter at the larger end of the reamer's cutting section or the maximum width of the hole at a certain length along the tapered area.
     • Taper pins typically have a 1:48 taper ratio, meaning for every 1 unit of length along the pin, the diameter changes by 1/48 of an inch, which aligns with the dimensions you’ve provided.
4. Hand Taper Pin Reamer:
   • A hand taper pin reamer is specifically designed for manual reaming. It is usually operated by hand, providing the flexibility to finish taper holes with accuracy. These reamers may also be used in machine setups, though they are particularly suited for hand use in smaller production or repair work.
5. Taper Geometry:
   • The reamer is designed to create a specific tapered hole with a gradual reduction in diameter. This allows taper pins (which are slightly tapered) to fit tightly into the hole and lock into place, often used for alignment or fastening in mechanical assemblies. The reamer's design ensures that the hole conforms precisely to the taper's specifications.
6. Material and Durability:
   • Typically made from High-Speed Steel (HSS) or carbide, these hand taper pin reamers are durable and can be used on tough materials like steel, aluminum, and cast iron.
   • HSS is most common for general use due to its balance of strength, toughness, and heat resistance, making it ideal for cutting operations on metals.

Applications:

• Taper Pin Holes: These reamers are designed for creating tapered holes that are used to fit taper pins securely in mechanical assemblies.
• Precision Fitting: Often used when parts need to be aligned and fastened with tapered pins. Taper pins are commonly used in machinery, automotive, and structural applications.
• Manual or Light Machine Tool Use: While they can be used in CNC or lathes, these reamers are particularly suited for manual use for smaller batches or repairs, where exactness is needed but a machine tool may not be available.

Benefits:

• Precision: The reamer ensures a smooth, accurate taper that will perfectly match the corresponding taper pin. This ensures proper pin fit and secure fastening.
• Durability: Made from HSS or carbide, these reamers are designed to last longer and handle hard materials with ease.
• Versatility: These reamers can be used in a range of materials, especially those requiring precise hole formation for fitting taper pins.
• Ease of Use: Since these are hand reamers, they offer a great level of control for finishing and resizing taper holes without the need for complex machinery.

Conclusion:

The Pluto 1/4" X 3-3/8" X 4-5/8" X 0.253" X 0.1827" Hand Taper Pin Reamers are designed for precision finishing of taper pin holes. Their manual operation allows for tight control over hole dimensions, making them ideal for high-accuracy applications where tapered pins are used for fitting or alignment. Whether you're working in mechanical assembly, repairs, or small-scale manufacturing, these reamers provide an effective solution for taper pin installation.
