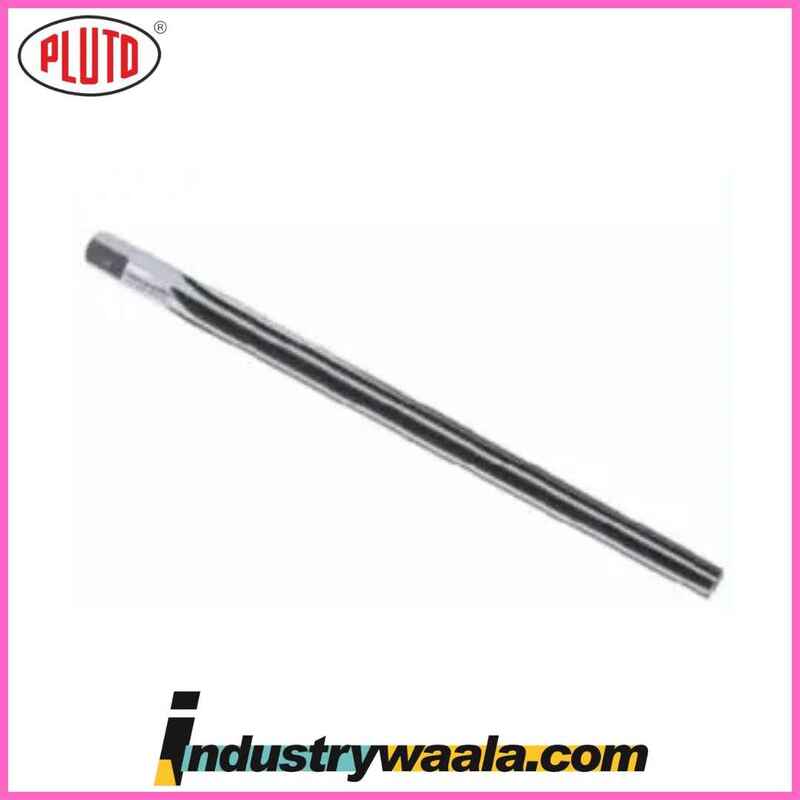

Pluto 7/8 X 9.1/2 X 12 X 0.885 X 0.3871 Inch Hand Taper Pin Reamers

Detailed Breakdown:

1. Brand: Pluto

• Pluto is a recognized name in the manufacturing of high-quality cutting tools, including reamers, taps, drills, and other precision instruments. Pluto reamers are known for their durability, accuracy, and performance in industrial applications, ensuring consistent results for mechanical and engineering tasks.

2. Type of Tool: Hand Taper Pin Reamer

• This is a hand-operated reamer specifically designed to ream tapered holes for taper pins. Taper pins are used in various applications to align, fasten, and secure parts with a friction-fit, where the pin’s taper ensures a tight, secure fit into the hole.
• This type of reamer is ideal for manual operation, providing precise control over the reaming process. It is often used in situations where machine reaming is not feasible or when delicate adjustments are required.

3. Tool Dimensions:

• 7/8 Inch: The smallest diameter (starting diameter) of the reamer. This dimension represents the narrowest point of the reamer, where it first enters the hole.
• 9-1/2 Inches: The overall length of the reamer, which indicates how long the tool is from tip to shank. The overall length determines how deep the reamer can reach into the hole.
• 12 Inches: This is the cutting length (flute length), which is the portion of the reamer that does the actual cutting or reaming. This length defines how much material the reamer can remove and ensures that the hole is tapered to the correct dimensions over the full depth.
• 0.885 Inch: This represents the diameter of the reamer at a specific point along the taper, typically corresponding to the size of the reamed hole at a given depth.
• 0.3871 Inch: This is another measurement indicating the diameter of the reamer at a specific location along the taper, contributing to the precise taper angle and hole dimensions.

4. Purpose:

• The Pluto Hand Taper Pin Reamer is designed to finish or enlarge a pre-drilled hole into a tapered hole that matches the taper of a taper pin. The reamer ensures that the hole has the exact size, smoothness, and taper angle needed for the taper pin to fit securely.
• Taper pins are widely used in machinery, jigs, fixtures, and mechanical assemblies where alignment and secure fastening are necessary.

5. Material and Durability:

• This reamer is generally made from high-speed steel (HSS) or a similar durable material that is suitable for cutting through hard metals such as steel, stainless steel, and various alloys. HSS tools are known for their ability to withstand high temperatures and maintain sharpness under tough working conditions.
• The tool is designed for durability, ensuring that it can handle extended use in demanding environments, providing long-lasting performance.

6. Hand Operation:

• As a hand reamer, it is intended to be used manually. This gives the user the ability to precisely control the reaming process and make fine adjustments to the hole's size and taper.
• Hand reamers are useful when working in tight spaces, where machine tools may not fit, or when a fine, controlled finish is required. The user applies rotational force while guiding the reamer to create the desired tapered hole.

7. Applications:

• Taper Pin Holes: The primary use for this reamer is to enlarge and smooth holes for taper pins. The taper pin is inserted into the reamed hole, where it creates a secure, friction-fit.
• Mechanical Assemblies: This reamer is essential in industries like aerospace, automotive, and toolmaking where precise mechanical assemblies are critical. The tool ensures the correct taper and dimensions for aligning parts or securing fasteners.
• Jigs and Fixtures: The tool is commonly used in tooling applications like jigs and fixtures, where precision is necessary to align components correctly.
• Maintenance and Repair: The reamer can be used for repairing worn or damaged holes or for creating taper holes in maintenance applications.

8. Key Benefits:

• Precision: The reamer ensures that holes are tapered to the exact specifications required for taper pins, ensuring a perfect fit and precise alignment.
• Durability: The high-quality HSS construction makes the reamer capable of enduring tough conditions and offering long-lasting cutting performance.
• Control: Manual operation gives the user more control over the process, making it ideal for detailed work, fine adjustments, and working in confined spaces.
• Versatility: The reamer can be used in various applications, including machinery, jigs, fixtures, tooling, and maintenance tasks, offering flexibility in its use across multiple industries.

Conclusion:

The Pluto 7/8 X 9-1/2 X 12 X 0.885 X 0.3871 Inch Hand Taper Pin Reamer is a high-precision tool designed for reaming tapered holes to fit taper pins securely. With its HSS construction and manual operation, this reamer offers durability, control, and precision, making it ideal for use in a wide range of applications, from mechanical assemblies to maintenance and repair work. Whether working with machinery, jigs, or fixtures, the Pluto hand reamer ensures that tapered holes are created with exacting standards, ensuring secure alignment and fastening in critical applications.
