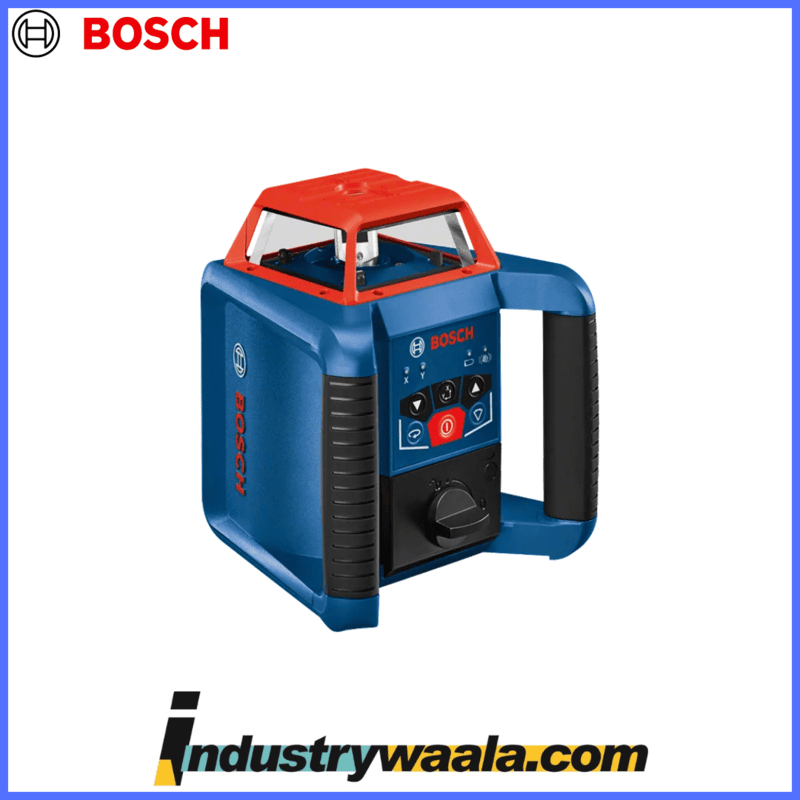

Bosch GRL 350 HV Professional Rotation Laser

The Bosch GRL 350 HV Professional is a robust and precise rotation laser designed for a variety of leveling and alignment tasks in construction and renovation. It offers versatility with both horizontal and vertical leveling capabilities, making it suitable for a wide range of applications. Here’s a detailed overview of the Bosch GRL 350 HV Professional:

Bosch GRL 350 HV Professional Rotation Laser Overview

Key Specifications:

• Laser Type: Class 2 laser
• Laser Rotating Speed:
  • Variable (typically 600, 300, and 150 RPM)
• Accuracy:
  • ±1/16 inch at 100 feet (±1.5 mm at 30 m)
• Working Range:
  • Up to 1,000 feet (300 meters) with a receiver
• Self-Leveling Range: ±5 degrees
• Mounting:
  • Includes a standard 5/8" tripod thread
• Power Supply:
  • Typically uses 4 x 1.5V D batteries or an optional rechargeable battery pack
• Dimensions:
  • Approximately 8.3 x 8.3 x 8.3 inches (210 x 210 x 210 mm)
• Weight:
  • Around 3.3 kg (7.3 lbs)
• Protection Rating:
  • IP54 (Dust and splash water resistant)

Features:

1. Horizontal and Vertical Laser Rotation:
   • Projects a rotating laser beam for both horizontal and vertical leveling, providing accurate alignment for various tasks such as grading, aligning, and setting elevations.
2. High Accuracy:
   • Offers high precision with an accuracy of ±1/16 inch at 100 feet (±1.5 mm at 30 m), ensuring reliable results for large and small-scale projects.
3. Variable Rotating Speeds:
   • Features adjustable rotating speeds (typically 600, 300, and 150 RPM) to suit different tasks and visibility conditions. Faster speeds are useful for large areas, while slower speeds are ideal for precise measurements.
4. Wide Working Range:
   • Effective over a range of up to 1,000 feet (300 meters) when used with a receiver, making it suitable for extensive outdoor or indoor projects.
5. Self-Leveling Mechanism:
   • Automatically levels itself within a ±5-degree range. If the laser is outside of this range, it will alert you, ensuring accurate projection.
6. Versatile Mounting:
   • Includes a standard 5/8" mounting thread for easy attachment to tripods or other mounting systems, providing stability and flexibility in positioning.
7. Durability:
   • Built to withstand harsh job site conditions with an IP54 rating, offering protection against dust and splashes of water.
8. User-Friendly Operation:
   • Simple controls for easy operation, allowing you to switch between horizontal and vertical modes quickly and adjust settings as needed.
9. Optional Accessories:
   • Can be used with various receivers, tripods, and other accessories to enhance functionality and convenience.

Using the Bosch GRL 350 HV Professional:

1. Setup:
   • Insert the batteries or rechargeable battery pack as per the instructions in the user manual.
   • Mount the laser on a stable tripod using the 5/8" thread.
2. Self-Leveling:
   • Ensure the device is positioned on a stable and level surface within its self-leveling range
