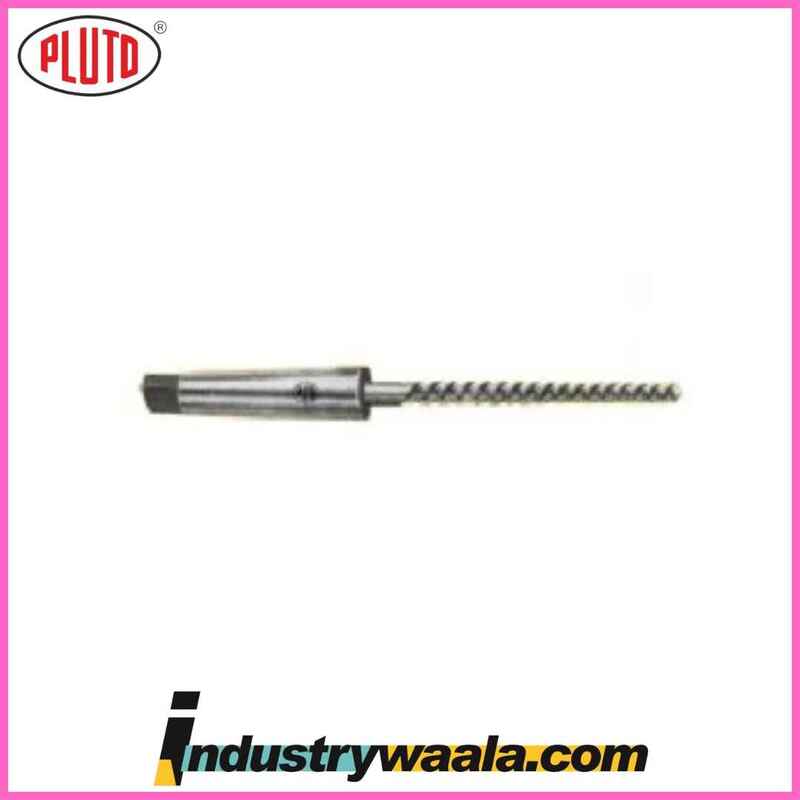

Pluto 1/4 X 3.7/8 X 6.13/16 X 0.253 Inch Machine Taper Pin Reamers

The Pluto 1/4 X 3.7/8 X 6.13/16 X 0.253 Inch Machine Taper Pin Reamers is a precision tool designed for creating tapered holes that accommodate 1/4 inch taper pins. These reamers are essential in applications where precise alignment and secure fastening are required, particularly in industries like machine assembly, toolmaking, aerospace, and automotive.

The reamer is constructed from high-speed steel (HSS), a material known for its durability, heat resistance, and cutting efficiency. It is ideal for use with machine tools such as drill presses, milling machines, and lathes to produce high-quality, accurate taper pin holes.

Pluto 1/4 X 3.7/8 X 6.13/16 X 0.253 Inch Machine Taper Pin Reamers

Key Specifications:

• Diameter:
  • 1/4 inch (0.25") – This reamer is designed to create tapered holes that accommodate 1/4 inch taper pins, which are commonly used in light-duty machinery and alignment applications.
• Flute Length:
  • 3.7/8 inches (3.875") – The long flute length ensures efficient chip removal and smooth cutting during the reaming process, which helps maintain the tool's cutting performance and extends its life.
• Overall Length:
  • 6.13/16 inches (6.875") – The overall length provides ample reach, allowing the reamer to be used for both shallow and deeper reaming applications, ensuring versatility in different setups.
• Taper Pin Reamer Dimensions:
  • Major Diameter: 0.253 inches – The reamer’s major diameter matches the larger end of the tapered hole, which is necessary for ensuring a proper fit for 1/4-inch taper pins.
  • Minor Diameter: Estimated to be around 0.19 inches (based on typical taper pin geometry) — The smaller end of the reamed hole corresponds to the narrow side of the taper pin.
• Material:
  • High-Speed Steel (HSS) – The HSS construction ensures that the reamer can withstand high temperatures and maintain sharpness, making it ideal for machining tougher materials like steel, cast iron, and aluminum.
• Shank Type:
  • Machine Reamer – Designed for use with machine tools like drill presses, lathes, and milling machines. This ensures that the reamer delivers consistent results with high precision for mass production and detailed work.

Applications:

The Pluto 1/4 X 3.7/8 X 6.13/16 X 0.253 Inch Machine Taper Pin Reamer is used for creating tapered holes in a variety of applications that require the use of 1/4-inch taper pins for aligning, securing, or fastening components. Some common applications include:

1. Machine Assembly:
   Used to ream holes for taper pins that align and secure components in mechanical and industrial machines. Taper pins are critical for ensuring precise alignment of parts in complex assemblies.
2. Toolmaking:
   Essential for toolmakers who need to create precise tapered holes to accommodate taper pins in jigs, fixtures, molds, and dies. Accurate taper pin holes are crucial for ensuring the proper fit and operation of tools.
3. Automotive:
   The reamer is used in automotive manufacturing for aligning components such as engine parts, chassis assemblies, and transmission components where taper pins are used to secure or align parts.
4. Aerospace:
   In the aerospace industry, taper pins and reamers like this are used in critical applications where precise part alignment is required, such as in landing gear, wing assemblies, and other high-stress components.
5. General Engineering:
   Widely used in general manufacturing and engineering applications that require precision reaming of tapered holes to accommodate taper pins for fasteners and alignment purposes.

Advantages:

1. Precision:
   The reamer provides an accurate and precise tapered hole that accommodates 1/4-inch taper pins, ensuring a snug and reliable fit for alignment and fastening.
2. Durability:
   Constructed from High-Speed Steel (HSS), the reamer is built to endure tough machining operations and maintain cutting performance even at high temperatures, extending tool life.
3. Efficient Chip Removal:
   The long flute length of 3.875 inches ensures efficient chip removal, reducing the risk of clogging and overheating, which helps maintain the reamer’s cutting efficiency.
4. Versatility:
   The reamer is ideal for a wide range of materials, including steel, aluminum, and cast iron, making it suitable for use in a variety of industries and applications.
5. Smooth Finish:
   The reamer produces a smooth, burr-free finish, which minimizes the need for additional finishing steps and ensures a precise hole for taper pins.
6. Machine Tool Compatibility:
   The reamer is designed to be used with machine tools such as drill presses, lathes, and milling machines, ensuring consistent and repeatable results during reaming operations.

Conclusion:

The Pluto 1/4 X 3.7/8 X 6.13/16 X 0.253 Inch Machine Taper Pin Reamer is a high-performance tool designed for reaming precise tapered holes for 1/4-inch taper pins. Its HSS construction, long flute length, and high durability make it ideal for applications in machine assembly, toolmaking, automotive, aerospace, and general engineering.

This reamer ensures tight tolerances, accurate alignment, and a smooth, burr-free finish, making it an essential tool for industries that require precision taper pin hole creation.
