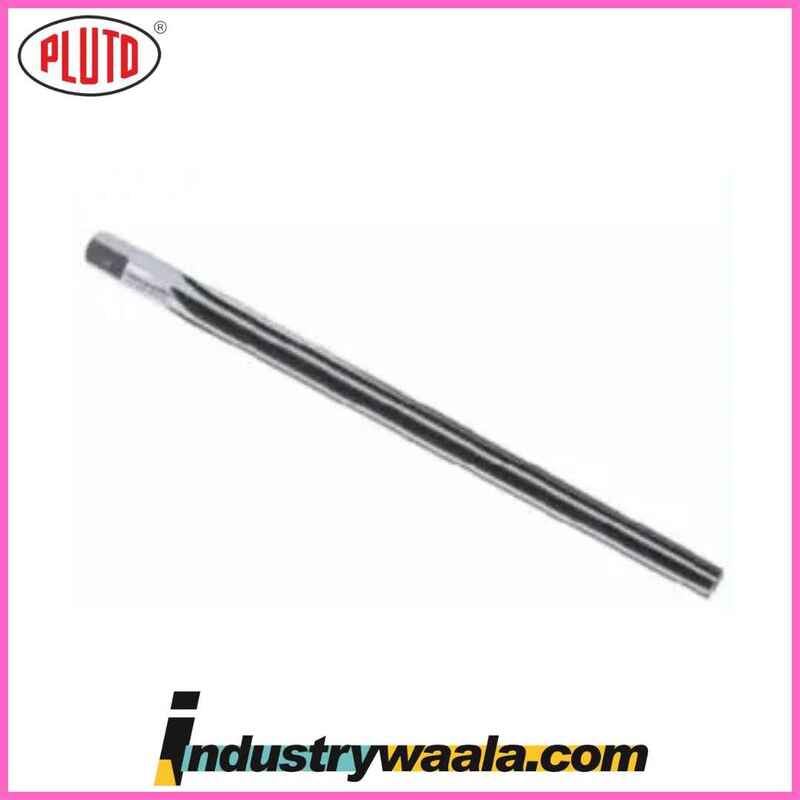

Pluto 13/32 X 5.3/4 X 7.1/2 X 0.412 X 0.2922 Inch Hand Taper Pin Reamers

The Pluto 13/32 X 5.3/4 X 7.1/2 X 0.412 X 0.2922 Inch Hand Taper Pin Reamer is a specialized tool designed to ream tapered holes to fit 13/32 inch taper pins. This reamer is primarily used in applications where precision alignment and secure fastening are required, such as in machinery assembly, jigs, fixtures, tooling, and repair work. Taper pin reamers are essential for ensuring the correct taper angle and fit for taper pins, which are widely used in mechanical and structural applications for alignment purposes.

Key Features and Specifications:

1. Size and Dimensions:
   • Reamer Diameter: The reamer has a cutting diameter of 13/32 inch (approximately 10.32mm), designed to create tapered holes that accommodate 13/32 inch taper pins. This size is ideal for applications where small taper pins are used for precision alignment.
   • Flute Length: The flute length is 5.3/4 inches (approximately 146mm), allowing for deeper reaming operations and providing enough cutting surface for smooth operation.
   • Overall Length: The overall length of the reamer is 7.1/2 inches (approximately 191mm), providing a longer reach for reaming deeper holes or for applications that require a tool with extended length.
   • Shank Diameter: The shank diameter is 0.412 inches (approximately 10.47mm), which ensures a secure fit into a hand tool holder or drill chuck, providing stable operation during manual reaming.
   • Taper Pin Standard: The reamer is specifically designed to ream holes for 13/32 inch taper pins, following the standard taper pin angle (usually a 1:48 taper ratio), ensuring a precise fit for the pins.
2. Taper Design:
   • The reamer has a tapered cutting edge, which is designed to create a hole that gradually increases in diameter as it goes deeper, following the taper pin standard. The reamed hole allows for a secure fit for 13/32 inch taper pins, which are used to align parts with accuracy.
   • Taper pins are typically used when parts need to be securely aligned in machinery, jigs, or fixtures, and the reamer ensures that the hole is correctly tapered to match the pin.
3. Cutting Material:
   • High-Speed Steel (HSS): The reamer is typically made from high-speed steel (HSS), a durable material that retains its cutting ability even at high temperatures, which is ideal for reaming tough materials such as steel, cast iron, and alloys. HSS also resists wear, ensuring the reamer stays sharp through multiple uses.
   • Carbide-Tipped Option: In some cases, the reamer may feature carbide-tipped cutting edges. This can improve tool life and cutting performance, especially in hard materials or high-volume applications where extended durability is needed.
4. Flute Design:
   • The reamer features spiral flutes, which are designed to help remove chips efficiently during the reaming process. The spiral flute design improves cutting action and reduces the risk of the reamer binding or overheating, allowing for a smooth and continuous reaming operation.
   • Spiral flutes also reduce friction between the reamer and the workpiece, which helps maintain sharpness and prolong the life of the tool.
5. Hand Tool Operation:
   • This reamer is designed for manual operation, which allows for more control and precision when reaming tapered holes. This feature is especially useful when reaming delicate materials or when exact sizing is required for the 13/32 inch taper pin.
   • Hand reamers give the operator the ability to feel the cutting process and make fine adjustments for accurate hole dimensions.

Applications:

1. Taper Pin Holes:
   • The primary application for this reamer is to create tapered holes that fit 13/32 inch taper pins. Taper pins are used in a wide range of industries for precise alignment and secure fastening of components.
2. Machinery and Equipment Assembly:
   • In machinery assembly, taper pins are often used to align and secure parts in place. This reamer ensures that the tapered holes are properly sized and tapered to fit 13/32 inch taper pins, which hold the parts in perfect alignment.
3. Jigs and Fixtures:
   • In the manufacture of jigs and fixtures, taper pins are used for precise alignment of workpieces during machining or assembly. The reamer is used to create the tapered holes in the jig or fixture, ensuring that the taper pins fit securely and align the parts accurately.
4. Tooling:
   • Tooling applications often require the alignment of components to ensure the precise positioning of parts for machining. This reamer is used to create tapered holes that fit 13/32 inch taper pins, providing an effective way to secure tooling components in place.
5. Custom Fabrication and Repair:
   • The reamer is useful in custom fabrication and repair work to restore or create tapered holes for 13/32 inch taper pins. It is ideal for situations where precision is required to fit taper pins into worn or damaged holes, ensuring a secure fit.
6. Precision Alignment:
   • Taper pins are commonly used in applications requiring precision alignment of mechanical components. This reamer ensures that 13/32 inch taper pins fit accurately, maintaining alignment and ensuring the proper function of the assembled parts.

Benefits:

• Precision Fit: This reamer ensures that the tapered holes are reamed to the correct dimensions, allowing 13/32 inch taper pins to fit precisely, which is crucial for ensuring secure alignment and proper functioning of mechanical assemblies.
• Durability: Made from high-speed steel (HSS) or carbide, the reamer offers long-lasting durability and is well-suited for use on tough materials, ensuring consistent performance throughout its lifespan.
• Smooth Cutting Action: The spiral flute design reduces friction and allows for smooth cutting action, improving both the quality of the hole and the reaming process. Efficient chip removal helps prevent the reamer from binding or overheating.
• Manual Control: The hand tool design gives the operator full control over the reaming process, ensuring that the hole is reamed to the correct specifications with high accuracy.
• Versatility: The reamer is ideal for a wide variety of applications, including machinery assembly, tooling, jig and fixture manufacturing, and custom fabrication.
• Efficient Chip Removal: The flute design helps in removing chips from the reamed hole, ensuring continuous cutting without clogging, which leads to better hole finish and tool longevity.

Conclusion:

The Pluto 13/32 X 5.3/4 X 7.1/2 X 0.412 X 0.2922 Inch Hand Taper Pin Reamer is a high-precision tool designed for creating tapered holes that accommodate 13/32 inch taper pins. It is used in a variety of applications, including machinery assembly, tooling, jigs and fixtures, and custom fabrication, where precise alignment and secure fastening are essential. With its high-speed steel construction, spiral flute design, and manual operation, the reamer ensures smooth, efficient, and accurate reaming, making it an invaluable tool for any precision machining or assembly task. Its durability and efficient chip removal make it ideal for high-quality results, ensuring the perfect fit for taper pins every time.
