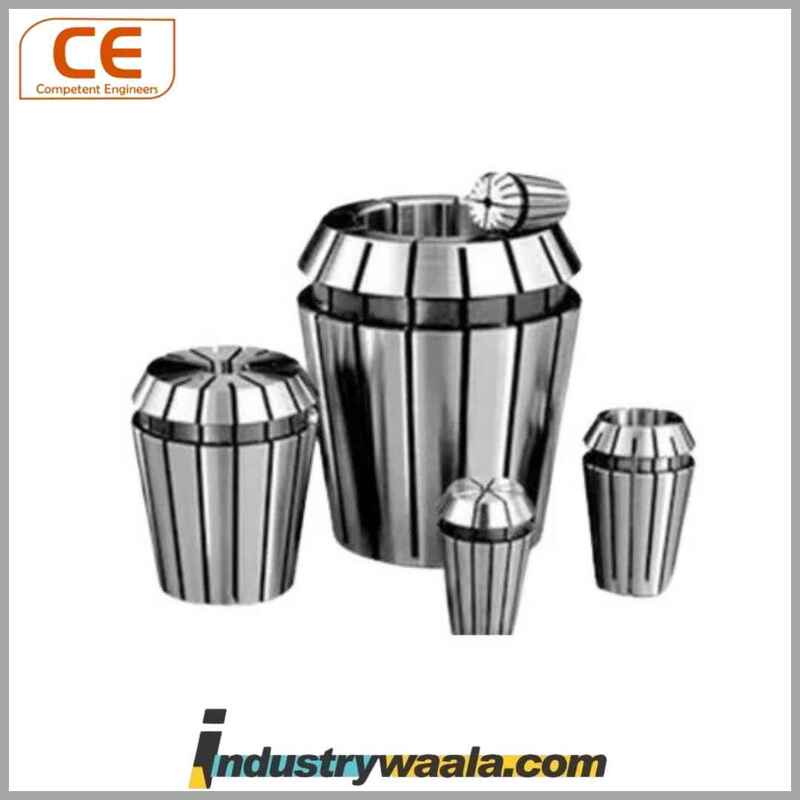

CE ER-40, 22 MM ER Collets Quantity : 2 pcs

The CE ER-40, 22 mm ER Collet is a high-precision tool designed for securely holding tools with a maximum diameter of 22 mm in ER-40 collet chucks. This collet is ideal for a wide range of CNC machining, milling, and turning operations, where stability, accuracy, and minimal runout are critical for achieving high-quality results. The CE ER-40, 22 mm ER Collet ensures that tools are held firmly and securely during machining, reducing vibration and enhancing precision in a variety of heavy-duty and high-precision applications.

Long Description:

The CE ER-40, 22 mm ER Collet features the following attributes:

1. Collet Series (ER-40):
   • The ER-40 series is one of the most widely used collet systems in the machining industry, known for its versatility and high precision.
   • The ER-40 collet system is designed to hold a wide range of tool sizes securely, ensuring stability and high performance in both high-speed and high-precision machining applications.
2. Size (22 mm):
   • The 22 mm size indicates that this collet is capable of holding tools with a diameter of up to 22 mm. This size is ideal for holding medium-sized tools such as drills, end mills, reamers, and taps, making it suitable for a variety of machining tasks in industries that require both precision and durability.
   • The collet provides secure and stable tool holding during operations that demand high accuracy and reliable performance.
3. Material and Durability:
   • The CE ER-40, 22 mm collet is constructed from high-quality, heat-treated steel or alloy material, designed to withstand the rigors of heavy-duty machining.
   • The heat-treated material provides enhanced strength, durability, and wear resistance, ensuring that the collet performs consistently over time, even in demanding applications.
4. Precision and Accuracy:
   • The collet is engineered to provide high concentricity and minimal runout, ensuring that the tool is held accurately and securely during machining operations.
   • The CE ER-40, 22 mm collet features a tapered, segmented design, which allows for uniform clamping force around the tool, reducing the chance of tool slippage and minimizing vibrations that could affect the quality of the finished workpiece.
   • The tight tolerances of the collet ensure precise and consistent tool positioning, making it an ideal choice for applications requiring high-precision results.
5. Applications:
   • The CE ER-40, 22 mm collet is versatile and can be used for a wide range of machining operations, including milling, drilling, tapping, and reaming. It is compatible with a variety of tools, including end mills, drills, and taps, which are commonly used in manufacturing and machining applications.
   • This collet is ideal for use in industries such as aerospace, automotive, medical device manufacturing, and mold-making, where precision and tool stability are paramount.
6. Design:
   • The ER-40 collet is designed with a tapered and segmented shape, which allows it to expand and contract evenly when tightened, providing a secure and stable grip on the tool.
   • The uniform clamping force of the collet ensures tool stability, which helps to reduce vibrations and tool deflection during operation. This results in smoother machining, better surface finishes, and more accurate workpieces.
7. Installation and Use:
   • The CE ER-40, 22 mm collet is designed for use with ER-40 collet chucks. It is installed into the chuck and secured with a standard ER collet nut, which tightens the collet and ensures it grips the tool securely.
   • The ER-40 collet system is easy to install and allows for quick tool changes, making it ideal for environments where efficiency and productivity are important.

Benefits:

• Precision Tool Holding: The collet provides minimal runout and ensures high concentricity, contributing to improved machining accuracy and quality.
• Durability: Made from heat-treated steel or alloy material, it offers enhanced strength, wear resistance, and longevity for demanding machining tasks.
• Versatility: Suitable for holding a wide range of tools up to 22 mm in diameter, making it versatile for different machining operations.
• Reduced Vibration: The tapered design reduces vibrations during machining, improving surface finishes and overall part accuracy.
• Quick Tool Changes: The ER-40 system allows for fast tool changes, which increases productivity and minimizes downtime.

Summary:

The CE ER-40, 22 mm ER Collet is a versatile and durable tool-holding solution designed for use in ER-40 collet chucks. It securely holds tools with a maximum diameter of 22 mm, making it ideal for a range of machining operations, including milling, drilling, and tapping. Its precision design ensures minimal runout and vibration, resulting in improved accuracy and surface finishes. The collet's high-strength construction ensures long-lasting durability, making it an essential tool for industries requiring high-precision machining, such as aerospace, automotive, and metalworking.
