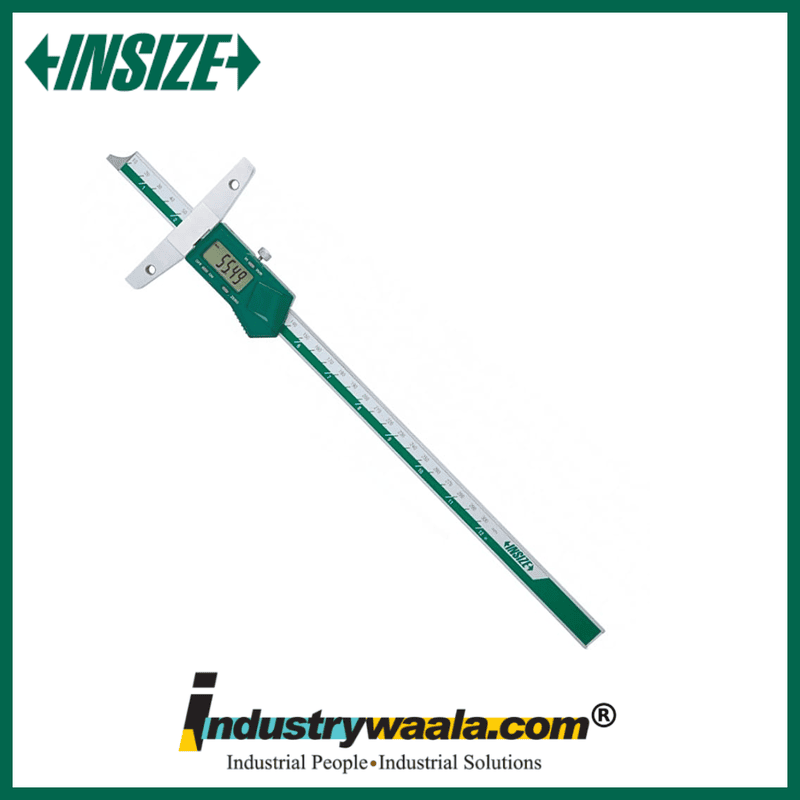

The INSIZE 1147-300 Digital Depth Gauge with Mounting Holes for Extension Base is a specialized precision measuring instrument designed for accurate measurement of deep holes, slots, grooves, steps, recesses, and other depth dimensions. Its mounting-hole design allows an extension base to be attached when additional support or a larger measuring surface is required. With a 0–300 mm / 0–12" measuring range and 0.01 mm / 0.0005" resolution, it is suitable for CNC machining, manufacturing, engineering, inspection, and quality-control applications.
Key Features
1. Mounting Holes for Extension Base
The 1147-300 features mounting holes for an extension base, providing greater flexibility when measuring larger workpieces. An extension base can provide additional surface support and help improve stability during depth measurement.
2. 0–300 mm Measuring Range
With a 0–300 mm / 0–12" measuring range, this model provides extended capacity for measuring deeper holes, slots, grooves, recesses, steps, and other internal dimensions.
3. High-Resolution Digital Display
The digital display provides 0.01 mm / 0.0005" resolution, allowing users to obtain clear and precise measurement readings. The mm/inch conversion function supports both metric and imperial measurement requirements.
4. Stable & Repeatable Measurement
The depth gauge is designed for stable positioning against the workpiece surface, helping users achieve consistent and repeatable readings. The option to attach an extension base makes it suitable for larger components and specialized measurement tasks.
5. Convenient Digital Operation
The instrument includes convenient ON/OFF, zero, and mm/inch functions. Automatic power-off helps conserve battery life, while the digital display allows measurements to be read quickly and easily.
