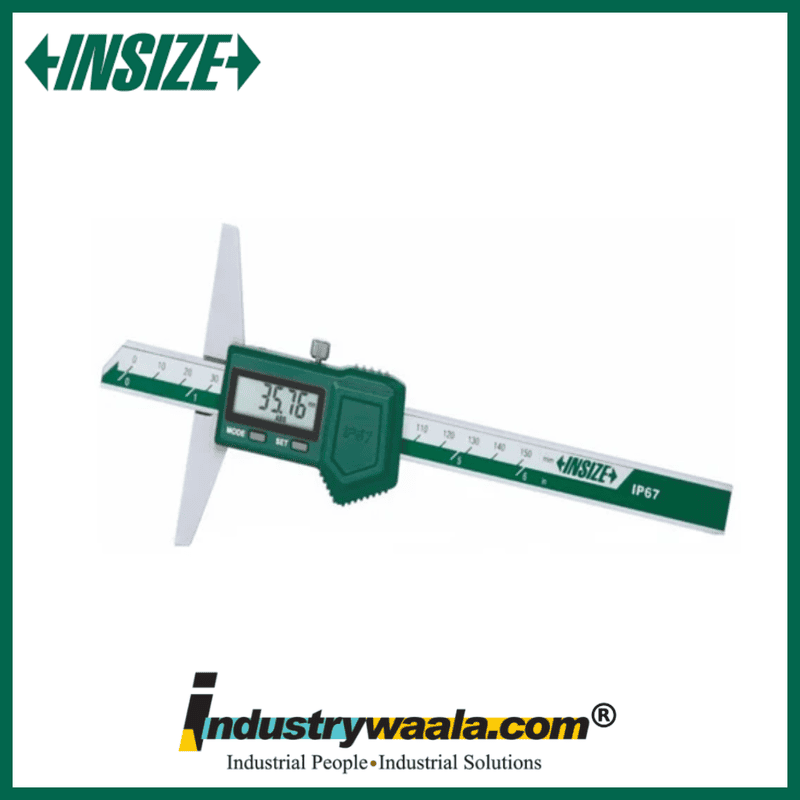

The INSIZE 1149-200 IP67 Waterproof Digital Depth Gauge is a precision measuring instrument designed for accurate measurement of holes, slots, grooves, recesses, steps, and other depth dimensions. Its IP67-rated construction provides excellent protection against dust and water, making it suitable for demanding industrial and workshop environments. With a 0–200 mm / 0–8" measuring range and 0.01 mm / 0.0005" resolution, this depth gauge is ideal for machining, manufacturing, fabrication, inspection, and quality-control applications.
Key Features
1. IP67 Waterproof & Dustproof Construction
The 1149-200 features IP67 protection, providing strong resistance against dust and water exposure. This makes it suitable for machine shops and production areas where the instrument may be exposed to coolant, cutting fluids, moisture, or dust.
2. 0–200 mm Measuring Range
The depth gauge offers a 0–200 mm / 0–8" measuring range, providing sufficient capacity for measuring deeper holes, slots, grooves, recesses, steps, and other internal depth dimensions.
3. High-Resolution Digital Display
With 0.01 mm / 0.0005" resolution, the digital display provides clear and precise measurement readings. Users can conveniently switch between mm and inch units according to their measurement requirements.
4. Stable Depth Measurement
The wide depth-measuring base provides stable positioning on the workpiece surface, helping achieve consistent and repeatable readings. It is suitable for precision inspection of machined components and industrial parts.
5. Durable & Convenient Operation
The depth gauge is designed for regular industrial use and features convenient ON/OFF, zero, and mm/inch functions. Automatic power-off helps conserve battery life, while the digital display makes readings quick and easy to interpret.
