| Model No | 1267-66 |
| Range | 0-10 mm |
| Type of Product | Chamfer Gage |
| Reading | 0.02mm |
| Weight | 4 kg |
| Dimensions (L x W x H) | 10 x 20 x 40 |

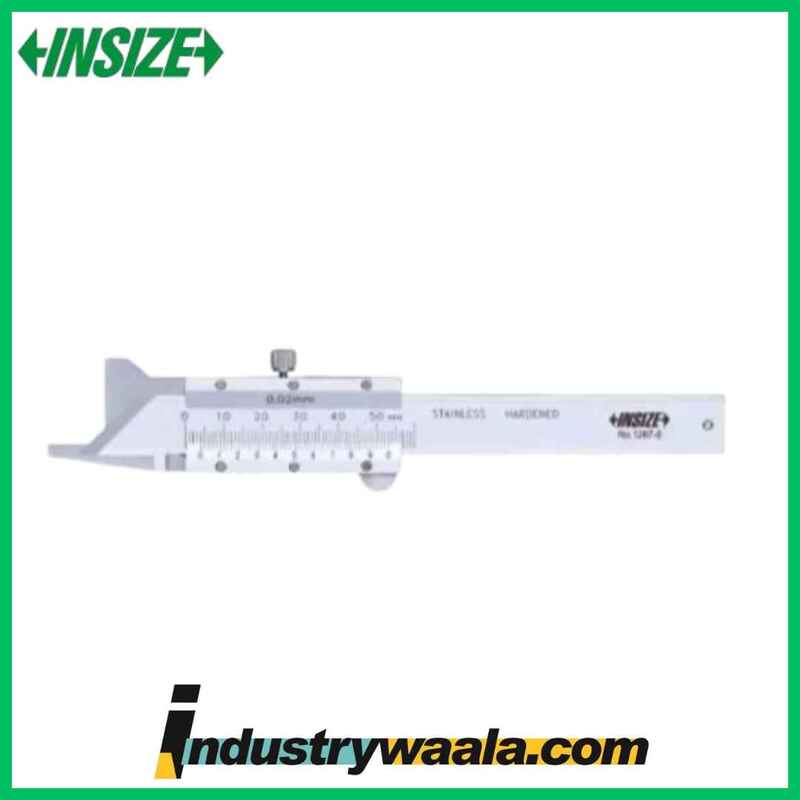

The INSIZE 1267 Series Chamfer Gauges are precision instruments designed to measure the size of chamfers on the edges of machined parts. These gauges enable direct reading of the chamfer angle and depth, eliminating guesswork and ensuring quality control in critical finishing processes.
Each model is tailored for specific measurement ranges, allowing flexibility across various component sizes. The gauges are suitable for internal and external chamfer inspections and are widely used in industries where precision and surface finishing are paramount.
Key Features
Direct reading of chamfer size (angle and depth)
High-contrast digital display for fast and easy reading
Durable construction with hardened, wear-resistant contact points
Suitable for internal and external chamfer measurements
Quick and easy operation, ideal for repetitive tasks
Compact and lightweight design for convenient handling
Models available in different measurement ranges to suit diverse applications
Applications
Used in machining and finishing industries to inspect chamfers on metal and plastic parts
Ideal for aerospace, automotive, tooling, and mechanical component manufacturing
Suitable for quality control departments, tool rooms, and precision workshops
Helpful in maintaining design and tolerance standards during production
Conclusion
The INSIZE 1267 Chamfer Gauges are essential tools for ensuring chamfer dimensions meet exact specifications. Reliable, efficient, and simple to use, they are perfect for production environments where accuracy and speed are critical.
