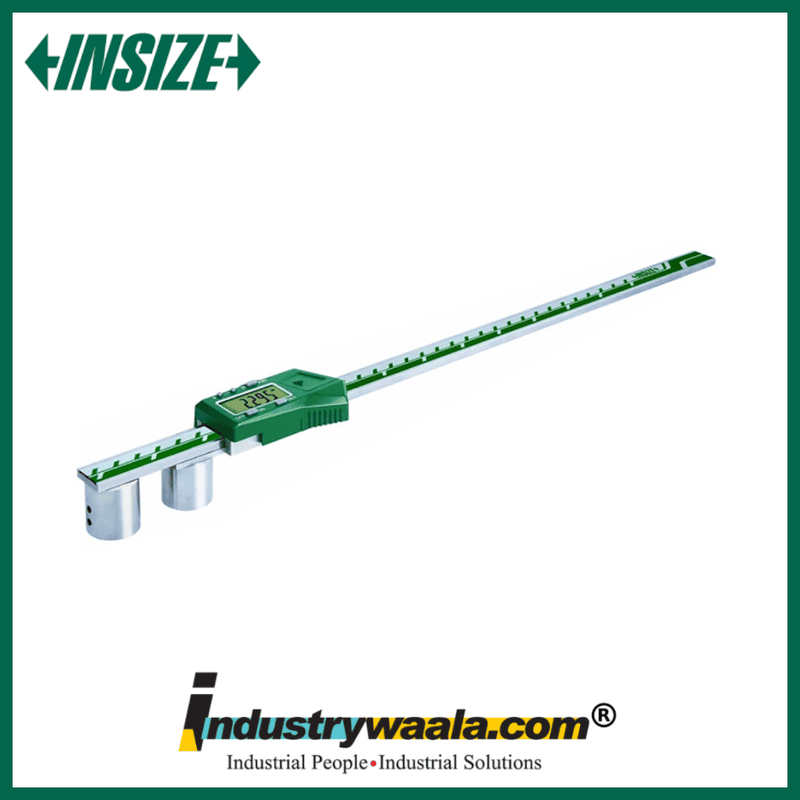

The INSIZE 1527-3001 Digital Caliper with Interchangeable Ball Tips is a specialized precision measuring instrument designed for measuring grooves, recesses, narrow spaces, and other difficult-to-access dimensions. Its interchangeable ball-tip system allows users to select different tip diameters according to the application. The caliper has a measuring range of (22.22 + D) to 300 mm, where D is the diameter of the selected ball tip, with 0.01 mm resolution and ±0.03 mm accuracy.
Key Features
- Interchangeable Ball Tips
The caliper accepts optional ball tips in different diameters, allowing it to be adapted for different groove and recessed measurement applications. - 300 mm Measuring Capacity
The 1527-3001 provides a measuring range of (22.22 + D) to 300 mm, where D represents the selected ball-tip diameter. - High-Resolution Digital Reading
It provides 0.01 mm / 0.0005" resolution for precise dimensional inspection and easy-to-read digital measurements. - Multiple Ball-Tip Options
Compatible ball tips are available in 1/16", 1/8", 3/16", 1/4", 3/8", and 1/2" diameters. The smallest tip is made from ruby, while the other listed tips use stainless steel construction. - Durable Digital Construction
The caliper is made from stainless steel and features ON/OFF, zero, mm/inch, and preset functions. It uses a CR2032 battery, has automatic power-off, and supports data output through compatible accessories.
