| Model No | 1531-200 |
| Type of Product | Keyway Symmetry Digital Caliper |
| Measurement Range (mm) | 0-350 mm |
| Resolution (mm) | 0.01 mm |
| Resolution (Inch) | 0.0005 Inch |
| Material | Stainless Steel |
| Weight | 4 kg |
| Dimensions (L x W x H) | 10 x 20 x 40 |

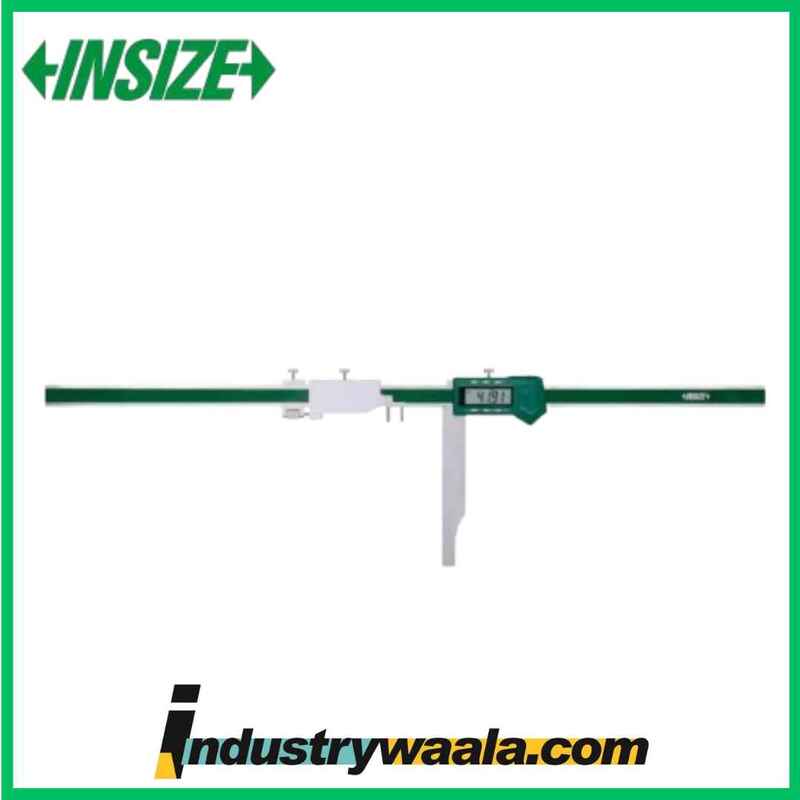

The INSIZE 1531-200 is a specialized digital caliper for keyway symmetry measurement with a maximum measuring range of 200 mm. It is designed to accurately check the symmetry of keyways relative to a shaft or slot centerline.
Key Features:
Measuring range: 0–200 mm
Resolution: 0.01 mm
Symmetry measurement made easy with specially designed jaws
Large LCD display for easy reading
Zero setting at any position
Inch/mm conversion
Battery powered (typically CR2032)
Application:
Used to check the offset of keyways and slots
Suitable for machine shops, toolrooms, and inspection departments
Conclusion:
The 1531-200 is a highly practical tool for professionals who need to inspect keyway symmetry quickly and accurately on larger components.
