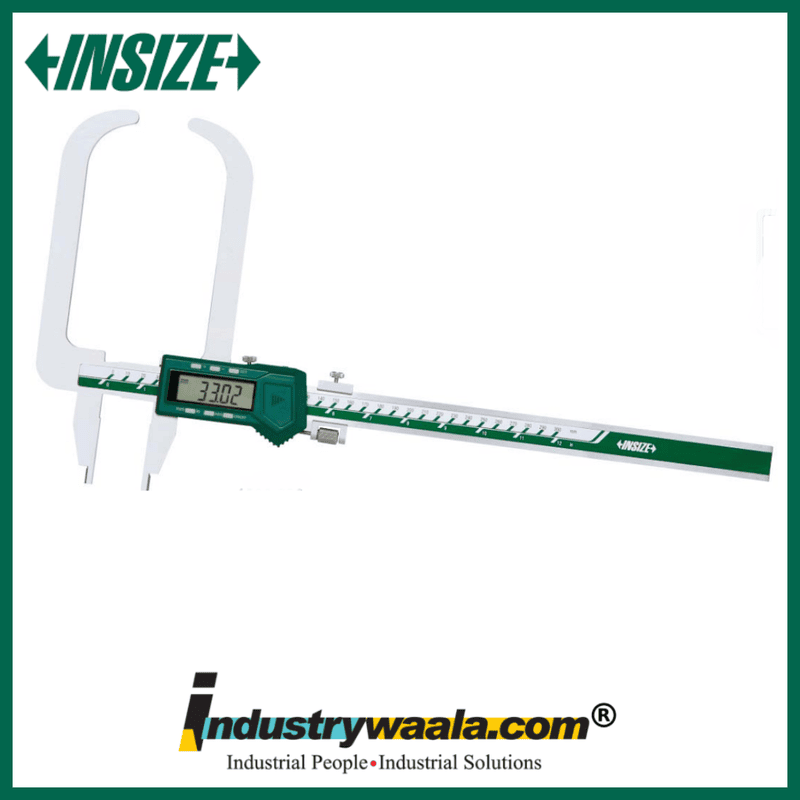

The INSIZE 1536-300 Digital Wall Thickness Caliper is a specialized precision measuring instrument designed for measuring the wall thickness of helmets, domes, curved pots, and other curved or hollow components. Its extended measuring configuration allows the jaws to reach surfaces that are difficult to access with a standard digital caliper. The model offers a 0–300 mm / 0–12 inch measuring range, 0.01 mm / 0.0005 inch resolution, and ±0.05 mm accuracy, making it suitable for industrial inspection and quality-control applications.
Key Features
1. Specialized Wall Thickness Measurement
The 1536-300 is specifically designed to measure the wall thickness of curved and hollow components, including helmets, domes, and curved pots. Its specialized jaw configuration makes it easier to access curved surfaces.
2. Wide 0–300 mm Measuring Range
With a measuring capacity of 0–300 mm / 0–12 inches, this caliper provides a wide range for industrial dimensional inspection and is suitable for larger components.
3. High-Resolution Digital Display
The instrument provides 0.01 mm / 0.0005 inch resolution, allowing users to obtain clear and precise digital readings during wall-thickness inspection.
4. Accurate & Durable Construction
The caliper offers ±0.05 mm accuracy and is manufactured from stainless steel, providing durability for regular use in engineering, manufacturing, fabrication, and inspection environments.
5. Convenient Digital Functions & Data Output
The 1536-300 features ON/OFF, zero, mm/inch, ABS, and data preset functions. It has automatic power-off and supports data output using compatible optional cables, making it useful for quality-control documentation.
