| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 2117-1001 |
| Product Type | Large Stroke Digital Indicator |
| Measuring Range | 100mm / 4" |
| Resolution | 0.001mm / 0.00005" |
| Accuracy | 9µm |
| Hysteresis | 3µm |
| Maximum Measuring Force | 3.2N |
| Back Type | Lug Back |
| Display | Digital |

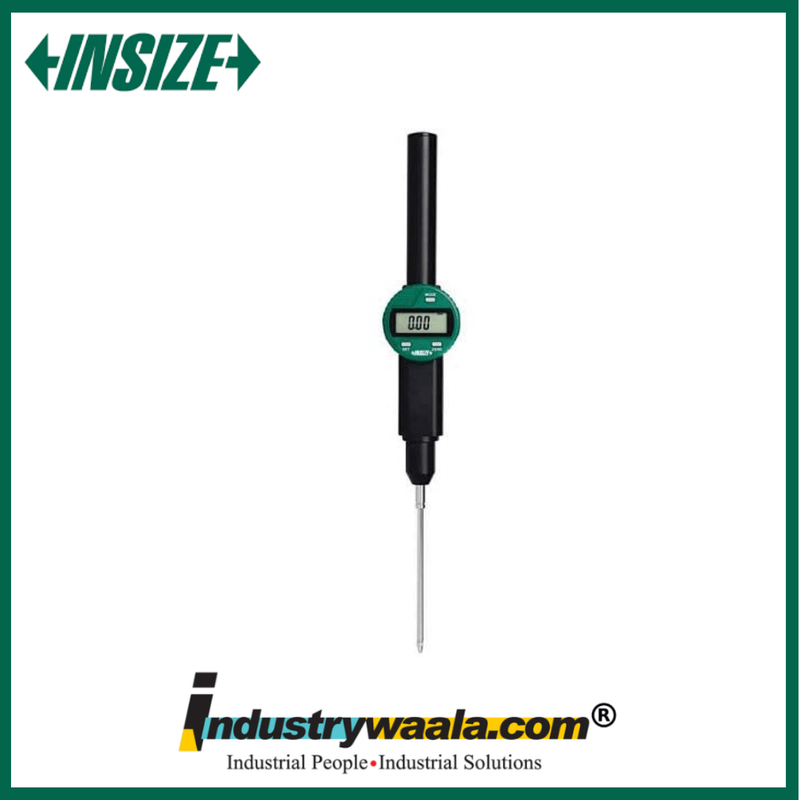

The INSIZE 2117-1001 Large Stroke Digital Indicator is a precision measuring instrument designed for dimensional inspection applications requiring a long 100mm measuring range. Its large-stroke design makes it suitable for checking movement, position and dimensional variations on large components, fixtures and inspection setups.
With a 0.001mm resolution and 9µm accuracy, the indicator provides detailed digital measurement readings for precision inspection. The lug-back design allows the indicator to be securely mounted to a suitable indicator holder or inspection fixture.
The indicator supports functions including zero setting, mm/inch conversion, data preset, tolerance setting, measuring-direction change and Max./Min./TIR measurement. It also supports absolute/incremental measurement and data output for convenient measurement data handling.
The INSIZE 2117-1001 is suitable for machine shops, manufacturing facilities, workshops, tool rooms and quality-control departments where long-stroke, high-resolution digital measurement is required.
Key Features
- 100mm / 4" measuring range for large-stroke measurement.
- 0.001mm / 0.00005" resolution for high-resolution readings.
- 9µm accuracy for precision dimensional inspection.
- Lug-back design for secure mounting on compatible indicator holders.
- Supports Max./Min./TIR measurement.
- Includes mm/inch conversion and absolute/incremental measurement.
- Supports data preset, tolerance setting and measuring-direction change.
- 3.2N maximum measuring force and 3µm hysteresis.
- CR2032 battery with automatic power-off.
- Data output available for compatible accessories.
