| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 2139-10F |
| Product Type | Digital Indicator |
| Series | INSIZE 2139 Series |
| Measuring Range | 12.7mm / 0.5" |
| Resolution | 0.01mm / 0.0005" |
| Accuracy | 20µm |
| Hysteresis | 10µm |
| Maximum Measuring Force | 1.5N |

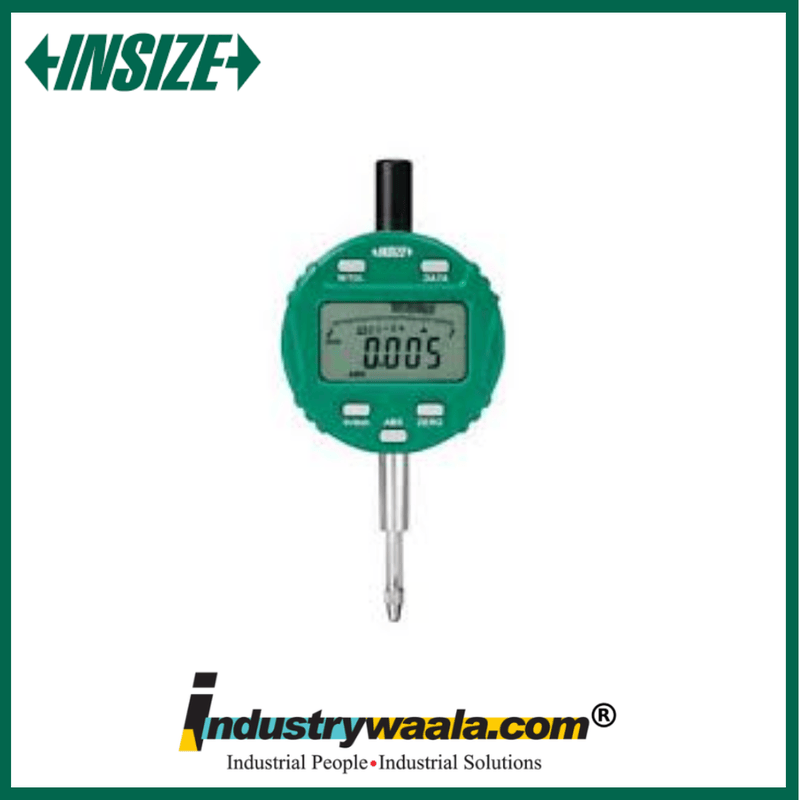

The INSIZE 2139-10F Digital Indicator is a precision measuring instrument designed for dimensional inspection, machining and quality-control applications. It features a 12.7mm / 0.5" measuring range, 0.01mm / 0.0005" resolution and 20µm accuracy, making it suitable for routine precision measurement.
The indicator features a transmission button with signal light, allowing individual measurement readings to be transmitted conveniently. The signal light provides a visual indication when data is transmitted.
Its flat back design makes the indicator suitable for compatible stands, fixtures and inspection setups. The liftable measuring cap provides convenient operation when positioning the indicator for measurement.
The INSIZE 2139-10F provides a digital display with an analog pointer and supports useful functions including zero setting, tolerance Go/No-Go display, data preset, measuring-direction change, Max./Min./TIR measurement, inch/metric conversion and absolute/incremental measurement. The display can also be rotated up to 320° for convenient viewing.
Key Features
- 12.7mm / 0.5" measuring range for dimensional inspection.
- 0.01mm / 0.0005" resolution for detailed measurement readings.
- 20µm accuracy for precision measurement applications.
- Flat back design for convenient mounting on compatible fixtures and stands.
- Transmission button with signal light for convenient data transfer.
- Liftable measuring cap for easier positioning and operation.
- Digital display with analog pointer and 320° rotatable display.
