| Model | 4801 |
| Type | Gauge |
| Quantity | 1 |

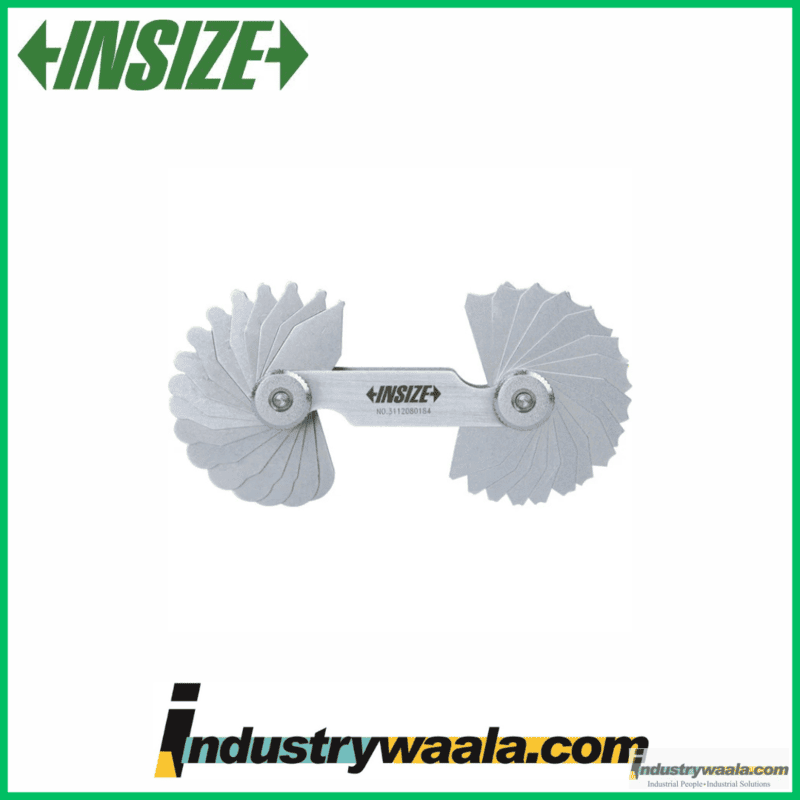

Insize 4801 Radius Gauge
The Insize 4801 Radius Gauge is a high-precision inspection tool used to quickly and accurately check the concave and convex radii of machined components. Designed for use in quality control, toolrooms, and workshops, this gauge is ideal for verifying the radius of curves and rounded edges with ease and confidence.
✓ Key Features:
Model: 4801 Series
Type: Radius Gauge Set
Measurement Range: Available in sets covering a wide range of radii (e.g., 1 mm to 7 mm or 7.5 mm to 15 mm, depending on the set)
Blades Included: Multiple individual blades with fixed radius profiles (both concave and convex on each blade)
Material: High-quality stainless steel — wear-resistant and corrosion-proof
Finish: Satin chrome or matte finish to reduce glare and improve reading clarity
Markings: Clearly etched size markings on each blade for quick identification
Storage: Supplied in a protective case or holder for organized storage and easy access
🛠️ Applications:
Checking external (convex) and internal (concave) radii on components
Used in machining, metal fabrication, tool and die making, inspection, and engineering design
Ideal for radius confirmation, edge profiling, and verifying part conformance to specs
Common in quality assurance, product development, and prototyping labs
🎯 Benefits:
Fast and convenient way to verify radii without complex instruments
Simple to use — just match the blade to the part and visually check fit
Provides both concave and convex measurements on each blade
Durable stainless steel construction ensures long-term accuracy
Lightweight, portable, and ready for use in shop or field conditions
The Insize 4801 Radius Gauge is a must-have tool for machinists, inspectors, engineers, and fabricators who need a reliable and efficient solution for radius measurement and verification.
