| Brand Name : | Insize |
| Model No : | 4846-1 |
| Range : | Weld Seam Height: 0-50 mm, Angle: 30° to 90° |
| Type of Product : | Fillet Welding Gage |
| Graduation : | 2 mm, 2.5° |
| Material : | Stainless Steel |
| Weight | 4 kg |
| Dimensions (L x W x H) | 10 x 20 x 40 |

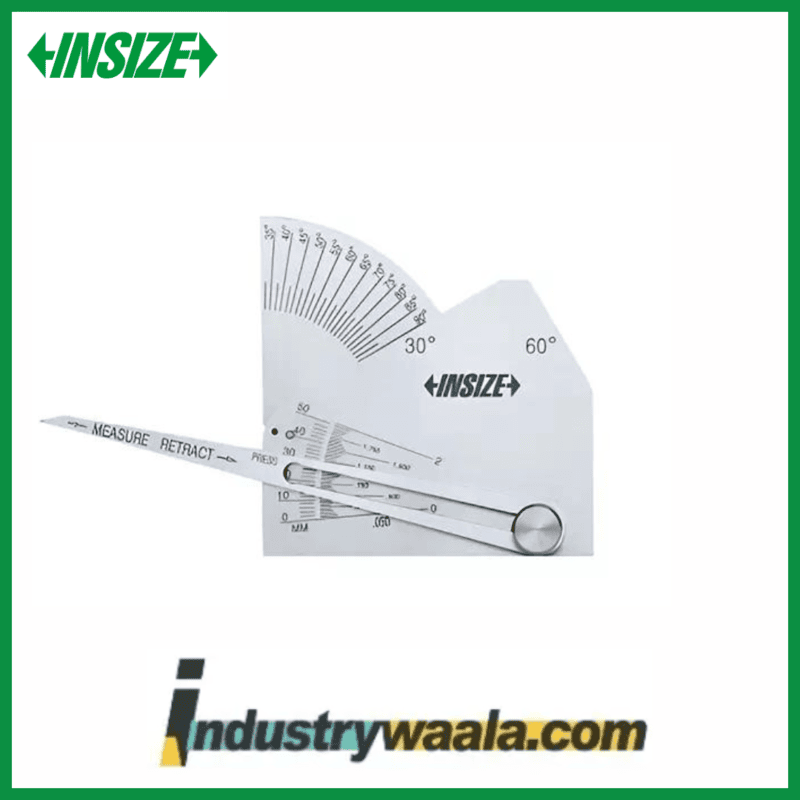

The Insize 4846-1 Fillet Welding Gauge is a precision instrument designed to measure and inspect fillet welds with high accuracy. This gage is crucial for ensuring that fillet welds meet specific size, angle, and quality requirements in welding applications. Its robust design and clear measurement scales make it an essential tool for quality control and inspection tasks.
Key Features:
Measurement Range:
The INSIZE 4846-1 is designed to measure a variety of fillet weld sizes and angles, making it versatile for different welding standards and applications. It is suitable for a range of weld leg lengths and configurations.High-Precision Measurement:
Provides accurate readings of fillet weld leg lengths and angles, essential for verifying weld quality and compliance with engineering and construction specifications.Durable Construction:
Made from high-quality materials, the gage is built to withstand the demanding conditions of industrial environments. Its sturdy construction ensures long-lasting performance and reliability.Clear Graduations and Markings:
Features a well-marked scale with precise graduations for easy reading and accurate measurement. The clear markings help in quickly assessing weld dimensions and ensuring they meet required standards.Versatile and User-Friendly Design:
The gage is designed for ease of use in various welding applications, including structural and pipe welding. Its ergonomic handle ensures comfortable handling and efficient measurement.Calibration and Adjustment Features:
Includes calibration and zero setting capabilities to maintain measurement accuracy and consistency over time. These features ensure reliable performance and adherence to specifications.
Applications:
Ideal for measuring and inspecting fillet welds in welding inspections, quality control, and construction projects.
Suitable for use in fabrication shops, manufacturing facilities, and construction sites where precise weld measurements are necessary.
Commonly used by welders, inspectors, and engineers to ensure fillet welds conform to specific standards and quality requirements.
Conclusion:
The Insize 4846-1 Fillet Welding Gauge offers precision, durability, and ease of use for measuring fillet welds. Its high-quality construction, clear scale, and ergonomic design make it an essential tool for accurate weld inspection and quality control in various industrial and construction applications.
