| Specification | Details |
|---|---|
| Brand | INSIZE |
| Model | 6282-0901 |
| Product Type | Conical Point |
| Category | Dial Indicator Accessory |
| Measuring Face Material | Steel |
| Point Type | Conical Point |
| Type | D |
| Length | 15mm |
| Secondary Dimension | 8mm |

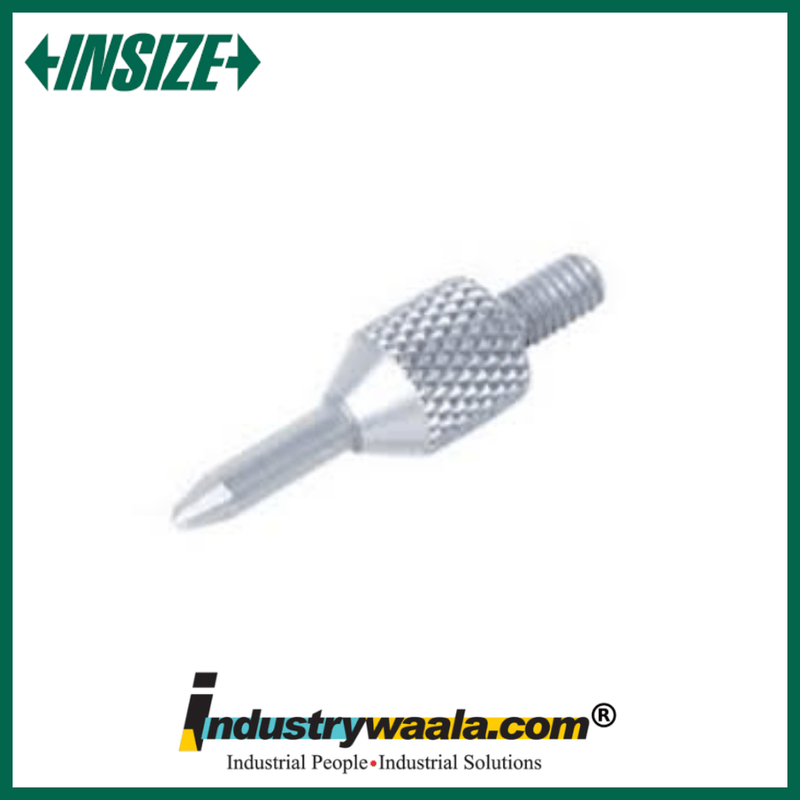

The INSIZE 6282-0901 Steel Conical Point is a precision contact-point accessory designed for compatible INSIZE dial indicators and measuring instruments. Its long conical design provides a focused measuring contact for inspection of grooves, edges, recesses and other suitable component features.
Made with a steel measuring face, the 6282-0901 features a 15mm length and 90° conical tip. The design also incorporates an 8mm secondary dimension and a Ø1mm tip detail. Its M2.5 × 0.45 mounting thread allows installation on compatible measuring instruments.
The INSIZE 6282-0901 is suitable for machine shops, CNC machining facilities, tool rooms, manufacturing units and quality-control departments. It can be used as a replacement or application-specific contact point for precision dimensional measurement.
Key Features
- Long conical-point design for focused measurement contact.
- Steel measuring face for practical industrial use.
- 15mm point length for extended measurement access.
- 90° conical tip for suitable groove and feature inspection.
- 8mm secondary dimension.
- Ø1mm tip detail.
- M2.5 × 0.45 mounting thread.
- Suitable as a replacement or measuring accessory.
- Useful for precision dimensional inspection.
