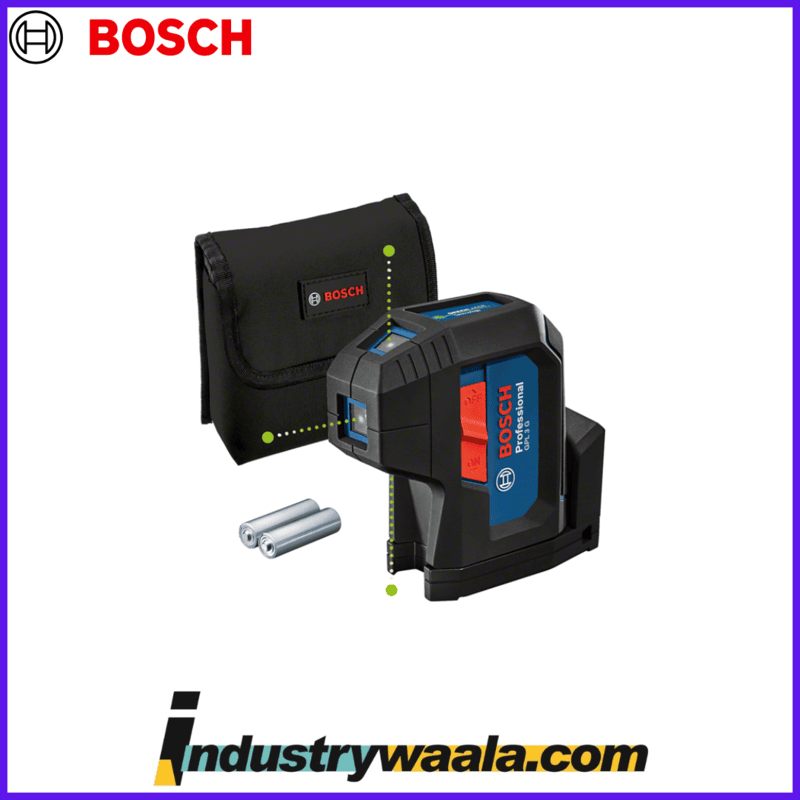

Bosch GPL 3 G Professional Point Laser

The Bosch GPL 3 G Professional Point Laser is a precision tool designed for accurate point-to-point alignment and leveling. It is favored for its bright green laser, which offers high visibility even in well-lit conditions. Here’s a comprehensive overview of the Bosch GPL 3 G Professional:

Bosch GPL 3 G Professional Point Laser Overview

Key Specifications:

• Laser Type: Class 2 laser
• Laser Points: 3-point laser (horizontal, vertical, and plumb points)
• Laser Color: Green
• Accuracy:
  • ±1/8 inch at 33 feet (±3 mm at 10 m)
• Working Range:
  • Up to 100 feet (30 meters) with visible points
• Mounting:
  • Includes a magnetic bracket with a 1/4" thread for easy mounting on metal surfaces or tripods.
• Power Supply:
  • Typically uses 2 x 1.5V AA batteries
• Dimensions:
  • Approximately 4.2 x 3.4 x 2.6 inches (106 x 86 x 66 mm)
• Weight:
  • Around 0.3 kg (0.66 lbs)
• Protection Rating:
  • IP54 (Dust and splash water resistant)

Features:

1. Green Laser Points:
   • Projects bright green laser points, which are more visible compared to red lasers, making it easier to see in bright conditions and over longer distances.
2. Three Laser Points:
   • Provides three fixed laser points for precise alignment and leveling: one horizontal point, one vertical point, and one plumb point. This makes it ideal for transferring reference points from floor to ceiling or wall to wall.
3. High Accuracy:
   • Delivers precise alignment with an accuracy of ±1/8 inch at 33 feet (±3 mm at 10 m), suitable for various alignment and leveling tasks.
4. Versatile Mounting:
   • Comes with a magnetic bracket that allows easy attachment to metal surfaces. It also includes a 1/4" mounting thread for use with tripods, offering stability and flexibility in positioning.
5. Compact and Lightweight:
   • The compact and lightweight design makes it easy to handle and transport, ideal for use on the go.
6. Durability:
   • Rated IP54 for dust and splash water resistance, making it suitable for use in various job site conditions.
7. User-Friendly Operation:
   • Simple controls for easy operation. The device is straightforward to set up and use for accurate point alignment and leveling.

Using the Bosch GPL 3 G Professional:

1. Setup:
   • Insert the batteries as per the instructions in the user manual.
   • Attach the laser to a metal surface using the magnetic bracket or mount it on a tripod using the 1/4" thread.
2. Projecting Laser Points:
   • Turn on the laser using the control button. The device will project three laser points: horizontal, vertical, and plumb.
3. Using the Laser Points:
   • Align the laser points with your reference points to ensure accurate placement. The horizontal and vertical points help with alignment across different planes, while the plumb point is useful for transferring reference points vertically.
4. Post-Use:
   • Turn off the device to conserve battery life.
   • Store the laser level in its protective case to prevent damage and ensure longevity.

Maintenance:

• Battery Replacement: Replace the batteries as needed. Follow the instructions in the user manual for proper battery replacement.
• Cleaning: Wipe the device with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Calibration: The device generally maintains its calibration. If you experience accuracy issues, consult the user manual or Bosch support.

Troubleshooting:

• Laser Points Not Visible: Check battery levels and ensure the device is properly powered. If the points are still not visible, the device may require service.
• Accuracy Issues: Ensure the device is positioned correctly and check that it is mounted securely. Perform recalibration if necessary.
• Self-Leveling Errors: Verify that the device is level and properly mounted. Adjust the setup if needed.

For detailed instructions, troubleshooting, and additional support, refer to the user manual provided with the Bosch GPL 3 G Professional Point Laser or visit the Bosch website for further resources and support.
