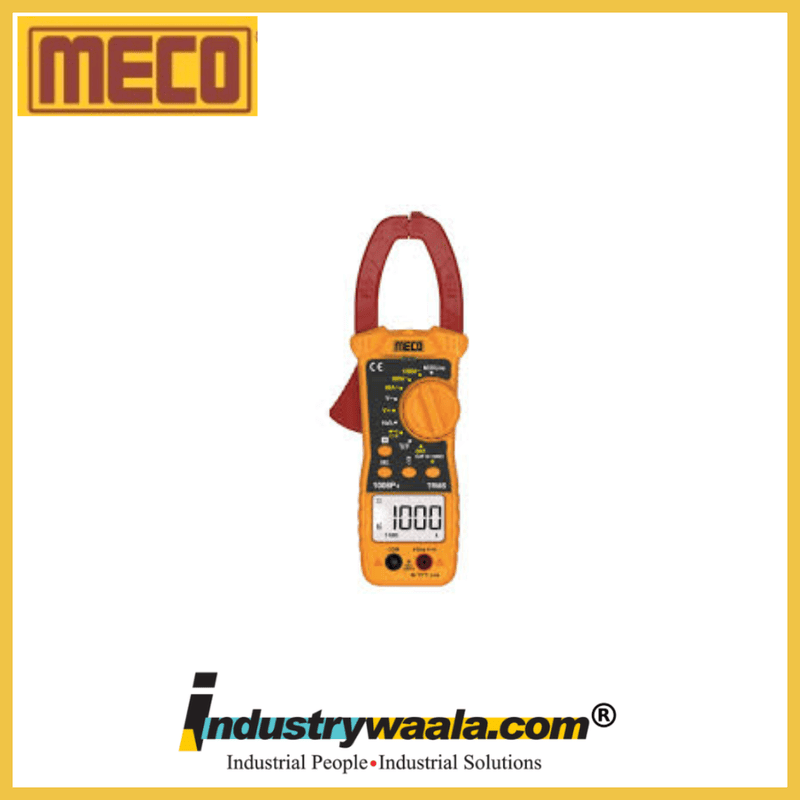

| Product Name | MECO 1008P+ Digital Clampmeter |
| Product Type | AC TRMS Digital Clampmeter / Tong Tester |
| Display | 3⅚ Digit LCD |
| Counts | 6000 Counts |
| Measurement Type | True RMS |
| Ranging | Auto / Manual |
| AC Current | Up to 1000A |
| AC Voltage | Up to 1000V |
| DC Voltage | Up to 1000V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 9.999MHz |
| Duty Cycle | 0.1% – 99.9% |
| Temperature | Yes |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes |
| Data Hold | Yes |
| Display Feature | Backlight |
| Torchlight | Yes |
| Battery | 2 × 1.5V AAA Batteries |
| Safety Category | CAT III 1000V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 8.9 x 4.3 x 24.1 cm |
The MECO 1008P+ Digital Clampmeter is a high-performance AC True RMS digital clamp meter designed for professional electricians, engineers, service technicians, and industrial maintenance professionals. Its clamp-style design allows users to measure current safely without disconnecting the electrical circuit, making it highly suitable for power systems, electrical panels, motors, and industrial equipment testing.
Equipped with advanced True RMS (TRMS) technology, the MECO 1008P+ provides accurate measurement results even when testing modern electrical loads with complex or distorted waveforms. The instrument features a 3⅚-digit, 6000-count LCD display that offers clear and precise readings for professional applications.
The clamp meter supports AC current measurement up to 1000A, along with AC voltage and DC voltage up to 1000V, making it suitable for heavy-duty electrical inspection. It also measures resistance up to 60MΩ, capacitance up to 60mF, frequency up to 9.999MHz, duty cycle, and temperature measurement using a K-Type thermocouple.
The MECO 1008P+ comes with multiple professional features including Auto and Manual Ranging, Data Hold, Backlight Display, Torchlight, Non-Contact Voltage (NCV) detection with LED, buzzer and electric field strength indication, Live Test function, Diode Test, Audible Continuity, Auto Power Off, and Low Battery Indication. These functions improve safety, efficiency, and convenience during electrical testing operations.
With a compact ergonomic design and 38 mm maximum cable diameter jaw opening, the MECO 1008P+ can easily measure current on various cable sizes. Its rugged construction makes it suitable for industrial environments, electrical workshops, maintenance departments, and field service applications.
Key Features:
Professional AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Auto & Manual Ranging Function
AC Current Measurement Up to 1000A
AC Voltage Measurement Up to 1000V
DC Voltage Measurement Up to 1000V
Resistance Measurement Up to 60MΩ
Capacitance Measurement Up to 60mF
Frequency Measurement Up to 9.999MHz
Duty Cycle Measurement (0.1% ~ 99.9%)
Temperature Measurement
K-Type Thermocouple Support
Non-Contact Voltage (NCV) Detection
LED & Buzzer Voltage Warning
Live Test Function
Audible Continuity Test
Diode Test Function
Data Hold Function
Backlight Display
Clamp Area Torchlight
Auto Power Off
Low Battery Indication
Large Jaw Opening for Cable Measurement
