| Model | MECO 101P+TRMS |
| Display | 3¾ Digit LCD |
| Display Count | 4000 Counts |
| Ranging | Auto Ranging |
| AC Measurement | True RMS |
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 750V |
| DC Current | Up to 10A |
| AC Current | Up to 10A |
| Resistance | Up to 40MΩ |
| Capacitance | Up to 4.000mF |
| Frequency | Up to 4.000MHz |
| Functions | REL Δ, Data Hold, Diode Test, Continuity |
| Display Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Safety Category | CAT III 600V / CAT II 1000V |
| Power Supply | 2 × 1.5V AAA Batteries |
| Battery Life | Approx. 200 Hours |
| Weight | 1 kg |
| Dimensions (L x W x H) | 3.6 x 14.2 x 6.8 cm |

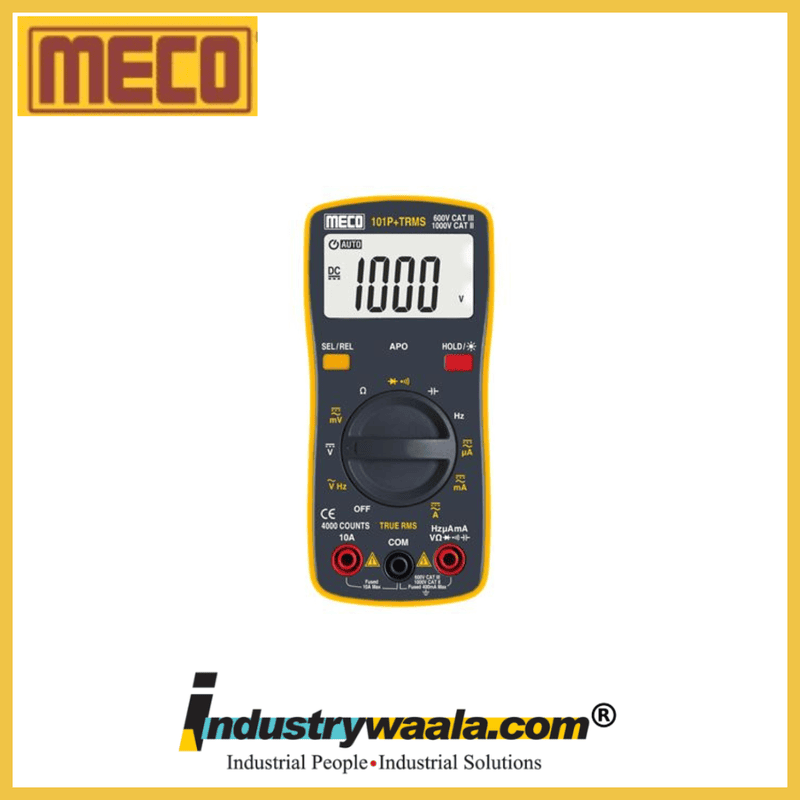

The MECO 101P+TRMS Digital Multimeter is a professional-grade True RMS digital multimeter that combines high accuracy with exceptional portability. Featuring a 3¾-digit LCD display with 4000 counts, this compact instrument automatically selects the appropriate measurement range, making electrical testing faster, easier, and more accurate.
Designed with True RMS technology, the 101P+TRMS provides precise AC voltage and current measurements, even on non-linear or distorted waveforms commonly found in industrial equipment, inverters, UPS systems, HVAC installations, and power electronics.
The meter measures a comprehensive range of electrical parameters including DC Voltage up to 1000V, AC Voltage up to 750V, DC & AC Current up to 10A, Resistance up to 40MΩ, Capacitance up to 4mF, and Frequency up to 4MHz. Additional functions such as Diode Test, Audible Continuity, Relative Measurement (REL Δ), Data Hold, Auto Power Off, and Low Battery Indication make it an ideal all-purpose multimeter for professionals.
Its backlit LCD display ensures clear visibility in dimly lit work areas, while the rugged pocket-sized housing provides excellent durability and portability. The meter complies with CAT III 600V / CAT II 1000V safety standards, making it suitable for industrial, commercial, and residential electrical work.
Whether you're diagnosing electrical faults, servicing industrial equipment, maintaining HVAC systems, testing automotive electronics, inspecting solar installations, or performing laboratory experiments, the MECO 101P+TRMS delivers reliable, accurate, and convenient performance in a compact handheld design.
Key Features:
- 3¾ Digit LCD Display with 4000 Counts
- True RMS (TRMS) Measurement
- Auto-Ranging Digital Multimeter
- Pocket-Size Lightweight Design
- DC Voltage Measurement up to 1000V
- AC Voltage Measurement up to 750V
- DC Current Measurement up to 10A
- AC Current Measurement up to 10A
- Resistance Measurement up to 40MΩ
- Capacitance Measurement up to 4.000mF
- Frequency Measurement up to 4.000MHz
- Relative Measurement (REL Δ)
- Data Hold Function
- Diode Test
- Audible Continuity Buzzer
- LCD Display with Backlight
- Auto Power Off
- Low Battery Indication
- CAT III 600V / CAT II 1000V Safety Rating
- Ideal for Industrial, Automotive, HVAC, Solar & Electrical Applications
