| Product Name | MECO 1080P+ Digital Clampmeter |
| Product Type | DC / AC True RMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Display Count | 6000 Counts |
| Measurement Type | True RMS |
| DC Current | Up to 1000A |
| AC Current | Up to 1000A |
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 1000V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 10MHz |
| Duty Cycle | Yes |
| Temperature | -20°C to 1000°C |
| NCV Detection | Yes |
| Live Wire Detection | Yes |
| Data Hold | Yes |
| MAX/MIN | Yes |
| Relative (REL) | Yes |
| Continuity Test | Audible |
| Diode Test | Yes |
| Backlight | Yes |
| Torchlight | Yes |
| Auto Power Off | Yes |
| Battery | 2 × 1.5V AA Batteries |
| Safety Category | CAT III 1000V / CAT IV 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9.4 x 4.3 x 25.3 cm |

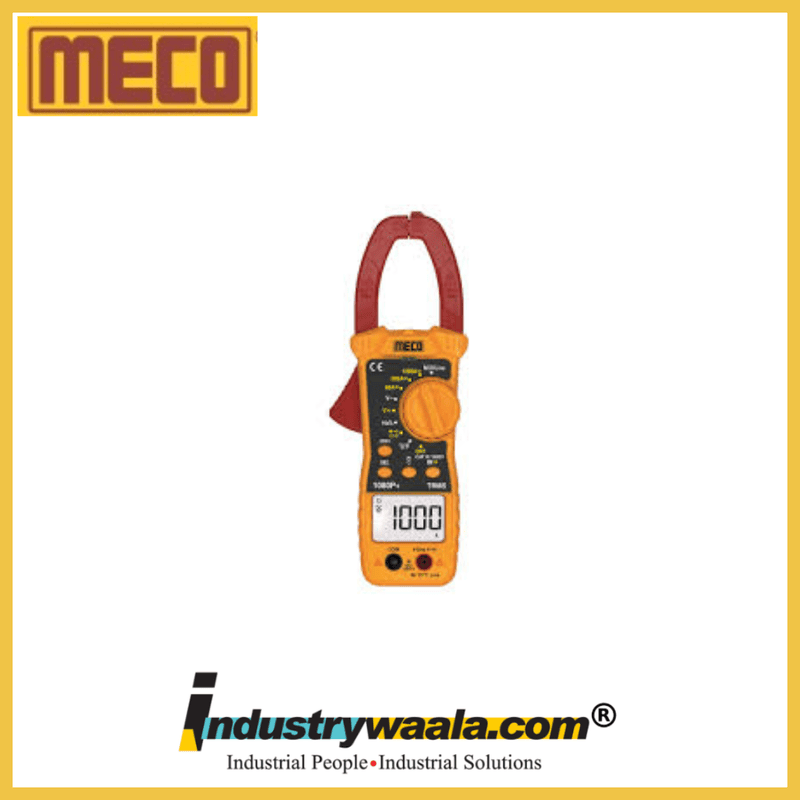

The MECO 1080P+ Digital Clampmeter is a premium True RMS DC/AC digital clamp meter engineered to provide highly accurate electrical measurements for professional maintenance, troubleshooting, and installation work. Designed for modern electrical systems, the meter accurately measures both sinusoidal and non-linear waveforms, making it suitable for testing variable frequency drives (VFDs), UPS systems, inverters, renewable energy installations, and industrial automation equipment.
Its advanced clamp design enables safe current measurement without disconnecting the conductor, minimizing downtime and improving operator safety. The large 3⅚-digit, 6000-count LCD display with bright backlight provides excellent readability even in dimly lit electrical panels and maintenance areas.
The MECO 1080P+ measures DC and AC current up to 1000A and DC/AC voltage up to 1000V, making it suitable for heavy-duty electrical applications. In addition to current and voltage, it offers resistance measurement up to 60MΩ, capacitance up to 60mF, frequency measurement up to 10MHz, duty cycle, and temperature measurement using a K-Type thermocouple, providing comprehensive electrical diagnostic capabilities.
For enhanced safety and convenience, the clamp meter incorporates True RMS technology, Non-Contact Voltage (NCV) detection, Live Wire Detection, Data Hold, MAX/MIN recording, Relative (REL) mode, audible continuity, diode testing, Auto Power Off, Low Battery Indication, and a built-in LED torchlight for working in confined or poorly illuminated spaces. The large clamp jaw allows easy measurement of thick conductors and industrial power cables.
Built with a rugged housing and ergonomic grip, the MECO 1080P+ Digital Clampmeter is an ideal measuring instrument for industrial maintenance, electrical contractors, power utilities, HVAC servicing, renewable energy systems, manufacturing plants, and professional field technicians requiring reliable, accurate, and durable electrical testing equipment.
Key Features:
Professional DC / AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Measures 1000A DC Current
Measures 1000A AC Current
Measures 1000V DC Voltage
Measures 1000V AC Voltage
Resistance Measurement up to 60MΩ
Capacitance Measurement up to 60mF
Frequency Measurement up to 10MHz
Duty Cycle Measurement
Temperature Measurement with K-Type Thermocouple
Non-Contact Voltage (NCV) Detection
Live Wire Detection
MAX/MIN Recording
Relative (REL) Function
Data Hold Function
Audible Continuity Test
Diode Test Function
LCD Backlight
Built-in LED Torchlight
Auto Power Off
Low Battery Indication
Large Clamp Jaw
Rugged Industrial Design
CAT III 1000V / CAT IV 600V Safety Rating
