| Model | MECO 108P+TRMS |
| Display | 3⅚-Digit LCD |
| Display Count | 6000 Counts |
| Measurement | TypeTrue RMS |
| Ranging | Auto Ranging |
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 1000V |
| DC Current | Up to 10A |
| AC Current | Up to 10A |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 9.999mF |
| Frequency | Up to 10MHz |
| Duty Cycle | Yes |
| Temperature | -20°C to 1000°C |
| NCV Test | Yes |
| LIVE Test | Yes |
| Diode Test | Yes |
| Continuity | Audible |
| Data Hold | Yes |
| REL Δ | Yes |
| Display Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Safety Category | CAT III 600V / CAT II 1000V |
| Power Supply | 2 × 1.5V AAA Batteries |
| Weight | 1 kg |
| Dimensions (L x W x H) | 3.6 x 14.2 x 6.8 cm |

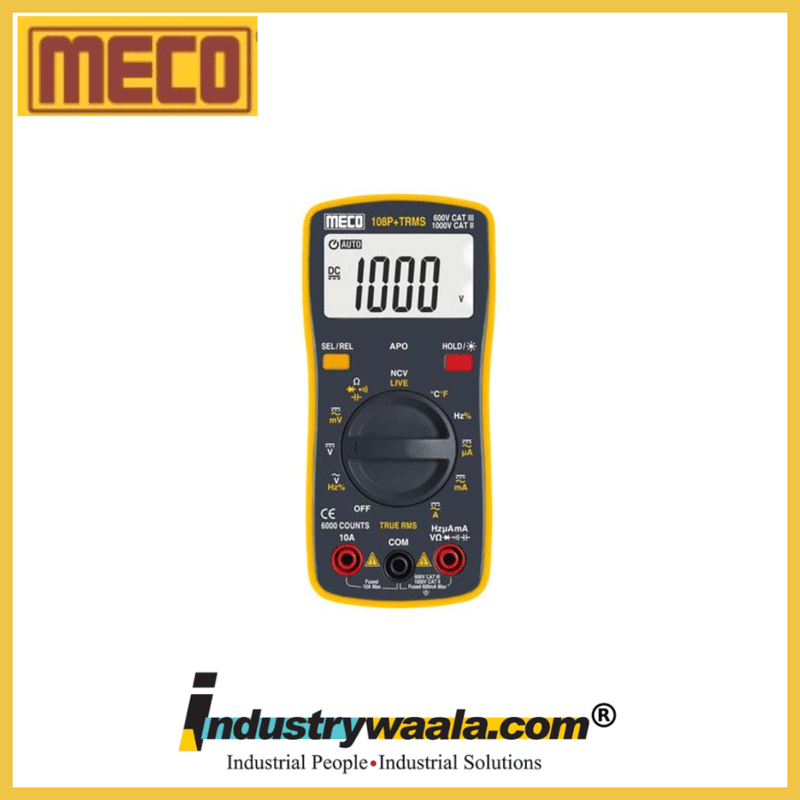

The MECO 108P+TRMS Digital Multimeter is a high-performance True RMS autoranging pocket multimeter that combines precision, versatility, and portability in one compact instrument. Featuring a 3⅚-digit LCD with 6000 counts, the meter delivers highly accurate measurements while automatically selecting the optimum measurement range, allowing users to work faster and more efficiently.
Equipped with True RMS technology, the 108P+TRMS accurately measures both sinusoidal and non-sinusoidal AC signals, making it suitable for modern electrical systems, inverters, UPS units, industrial drives, and power electronics.
The meter measures DC and AC Voltage up to 1000V, DC and AC Current up to 10A, Resistance up to 60MΩ, Capacitance up to 9.999mF, Frequency up to 10MHz, Duty Cycle, and Temperature from -20°C to 1000°C using the supplied K-Type thermocouple. Advanced safety functions such as Non-Contact Voltage (NCV) Detection and LIVE Wire Test allow quick identification of energized circuits without direct contact.
Additional features including Data Hold, Relative Measurement (REL Δ), Diode Test, Audible Continuity, LCD Backlight, Low Battery Indication, and Auto Power Off improve usability while extending battery life.
Designed to meet CAT III 600V / CAT II 1000V safety standards, the MECO 108P+TRMS is suitable for electrical contractors, maintenance engineers, technicians, HVAC professionals, automotive mechanics, solar installers, telecom engineers, railway maintenance teams, and educational laboratories. Its rugged construction, compact size, and comprehensive measurement capabilities make it an ideal everyday diagnostic tool.
Key Features:
- 3⅚-Digit LCD Display
- 6000 Count Digital Display
- True RMS (TRMS) Measurement
- Auto-Ranging Operation
- Pocket-Size Lightweight Design
- DC Voltage Measurement up to 1000V
- AC Voltage Measurement up to 1000V
- DC Current Measurement up to 10A
- AC Current Measurement up to 10A
- Resistance Measurement up to 60MΩ
- Capacitance Measurement up to 9.999mF
- Frequency Measurement up to 10MHz
- Duty Cycle Measurement
- Temperature Measurement (-20°C to 1000°C)
- Non-Contact Voltage (NCV) Detection
- LIVE Wire Detection
- Relative Measurement (REL Δ)
- Data Hold Function
- Diode Test
- Audible Continuity Buzzer
- LCD Display with Backlight
- Auto Power Off
- Low Battery Indication
- CAT III 600V / CAT II 1000V Safety Rating
- Compact, Durable & Easy-to-Carry Design
