| Model | MECO 126B+TRMS |
| Display | 4-Digit LCD |
| Display Count | 9999 Counts |
| Measurement Type | True RMS |
| Ranging | Auto / Manual |
| DC Voltage | Up to 999.9V |
| AC Voltage | Up to 750V |
| DC Current | Up to 9.999A |
| AC Current | Up to 9.999A |
| Resistance | Up to 9.999MΩ |
| Capacitance | Up to 9.999mF |
| Frequency | Up to 9.999MHz |
| Duty Cycle | 1%–99% |
| Square Wave Output | Yes |
| Diode Test | Yes |
| Continuity | Audible |
| Data Hold | Yes |
| LCD Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Safety Category | CAT II 1000V / CAT III 600V |
| Power Supply | 2 × 1.5V AAA Batteries |
| Weight | 1 kg |
| Dimensions (L x W x H) | 3.2 x 13 x 6.5 cm |

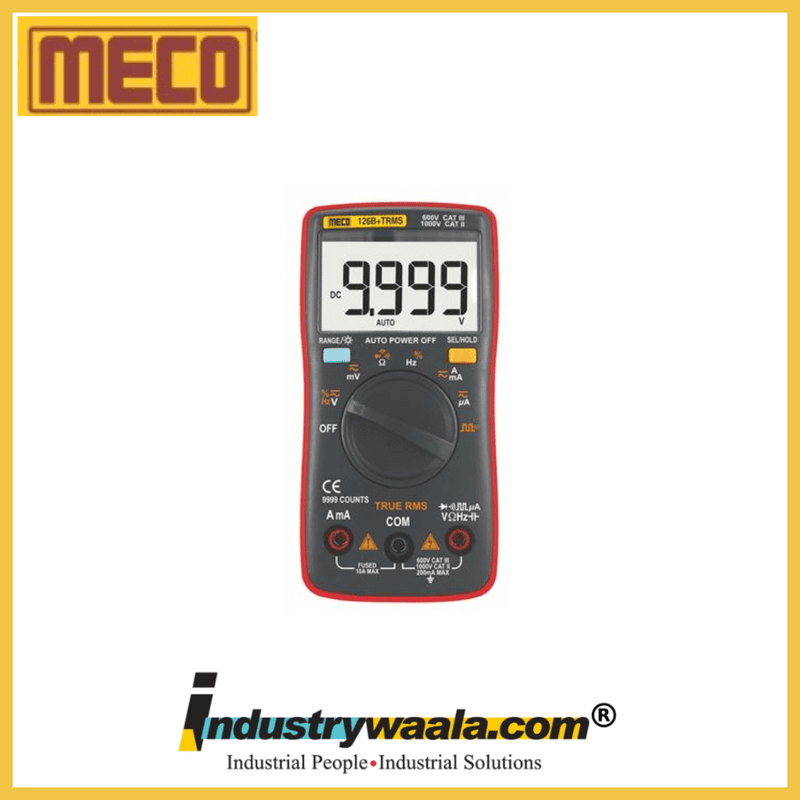

The MECO 126B+TRMS Digital Multimeter is a compact, high-precision measuring instrument engineered for professionals who require dependable and accurate electrical testing. Featuring a 4-digit LCD display with 9999 counts, the meter supports both Auto and Manual Ranging, allowing users to quickly select the most suitable measurement mode for various testing applications.
Equipped with True RMS (TRMS) technology, the 126B+TRMS provides accurate AC voltage and current measurements even when working with distorted or non-linear waveforms generated by inverters, variable frequency drives (VFDs), UPS systems, and industrial equipment.
The multimeter measures DC Voltage up to 999.9V, AC Voltage up to 750V, DC & AC Current up to 9.999A, Resistance up to 9.999MΩ, Capacitance up to 9.999mF, Frequency up to 9.999MHz, and Duty Cycle from 1% to 99%. It also features a Square Wave Output, making it useful for signal testing and electronic circuit diagnostics.
Additional functions such as Diode Test, Audible Continuity, Data Hold, LCD Backlight, Auto Power Off, and Low Battery Indication improve user convenience and operational efficiency. Designed to meet CAT II 1000V / CAT III 600V safety standards, the meter ensures safe operation in residential, commercial, and industrial environments.
Its lightweight pocket-sized construction, rugged housing, and long battery life make the MECO 126B+TRMS an excellent choice for field service engineers, electricians, maintenance technicians, HVAC professionals, laboratory personnel, and electronics enthusiasts seeking reliable performance in a portable format.
Key Features:
- 4-Digit LCD Display
- 9999 Count High-Resolution Display
- True RMS (TRMS) Measurement
- Auto & Manual Ranging
- DC Voltage Measurement up to 999.9V
- AC Voltage Measurement up to 750V
- DC Current Measurement up to 9.999A
- AC Current Measurement up to 9.999A
- Resistance Measurement up to 9.999MΩ
- Capacitance Measurement up to 9.999mF
- Frequency Measurement up to 9.999MHz
- Duty Cycle Measurement (1%–99%)
- Square Wave Output
- Diode Test
- Audible Continuity Buzzer
- Data Hold Function
- LCD Display with Backlight
- Auto Power Off (APO)
- Low Battery Indication
- CAT II 1000V / CAT III 600V Safety Rating
- Compact Palm / Pocket Size Design
