| Product Name | MECO 2250 Jr Digital Clampmeter |
| Product Type | AC TRMS Digital Clampmeter / Tong Tester |
| Display | 3½ Digit LCD |
| Counts | 1999 Counts |
| Measurement Type | True RMS |
| AC Current | Up to 1000A |
| AC Voltage | Up to 1000V |
| DC Voltage | Up to 1000V |
| Resistance | Up to 2kΩ |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes |
| Data Hold | Yes |
| Display Feature | Backlight |
| Torchlight | Yes |
| Power Supply | 2 × 1.5V AAA Batteries |
| Battery Life | Approx. 200 Hours |
| Weight | 1 kg |
| Dimensions (L x W x H) | 8.9 x 4.3 x 24.1 cm |

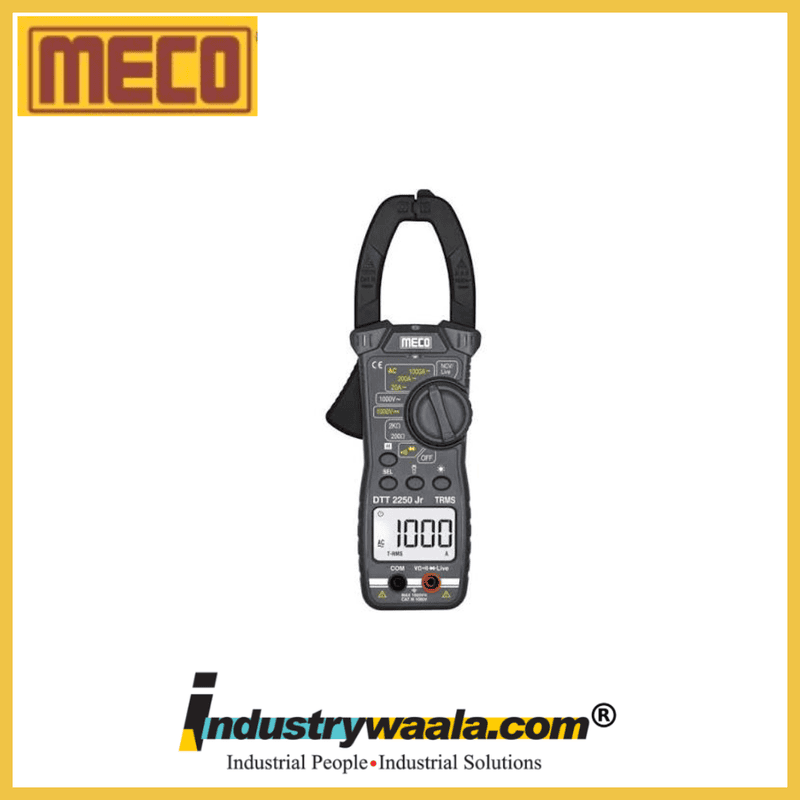

The MECO 2250 Jr Digital Clampmeter is a reliable and compact electrical testing instrument designed for professional troubleshooting, industrial maintenance, and field service applications. Using True RMS (TRMS) technology, this clamp meter provides accurate measurements even when testing modern electrical loads with distorted waveforms.
The clamp-type design allows users to measure current safely without disconnecting the circuit. This makes the MECO 2250 Jr highly suitable for checking electrical panels, motors, machines, power systems, and industrial equipment where quick and safe current measurement is required.
The instrument features a 3½-digit, 1999-count LCD display that provides clear and easy-to-read measurement results. It supports AC current measurement up to 1000A TRMS, along with AC voltage up to 1000V, DC voltage up to 1000V, and resistance measurement up to 2kΩ. These capabilities make it a versatile tool for electrical inspection and maintenance tasks.
The MECO 2250 Jr includes professional features such as audible continuity testing, diode testing, Data Hold, backlight display, clamp torchlight, Non-Contact Voltage (NCV) detection, live test function, Auto Power Off, and low battery indication. These features improve safety, convenience, and efficiency during electrical testing operations.
With its durable construction, ergonomic design, and large 38 mm jaw opening, the clamp meter can easily accommodate thick cables and conductors. It is an excellent choice for electrical contractors, service engineers, industrial maintenance teams, HVAC professionals, and technicians requiring dependable measurement performance.
Key Features:
Professional Digital Clampmeter / Tong Tester
True RMS (TRMS) Measurement Technology
3½ Digit LCD Display with 1999 Counts
AC Current Measurement Up to 1000A
AC Voltage Measurement Up to 1000V
DC Voltage Measurement Up to 1000V
Resistance Measurement Up to 2kΩ
Audible Continuity Test
Diode Test Function
Data Hold Function
Backlight LCD Display
Torchlight for Clamp Area
Non-Contact Voltage (NCV) Detection
Live Test Function
Auto Power Off
Low Battery Indication
Cable Diameter Support Up to 38 mm
Compact and Rugged Professional Design
