| Product Name | MECO 2502T-AUTO BL Digital Clampmeter |
| Product Type | AC TRMS Digital Clampmeter / Tong Tester |
| Display | 3½ Digit LCD |
| Counts | 2000 Counts |
| Measurement | Type True RMS |
| Ranging | Auto / Manual |
| AC Current | Up to 1000A |
| DC Voltage | Up to 1000V |
| Resistance | Up to 20MΩ |
| Temperature Range | -20°C to 750°C |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes |
| Data Hold | Yes |
| Backlight | Yes |
| Torchlight | Yes |
| Battery | 2 × 1.5V AA |
| Safety Standard | CAT III 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9.5 x 3.5 x 24.5 cm |

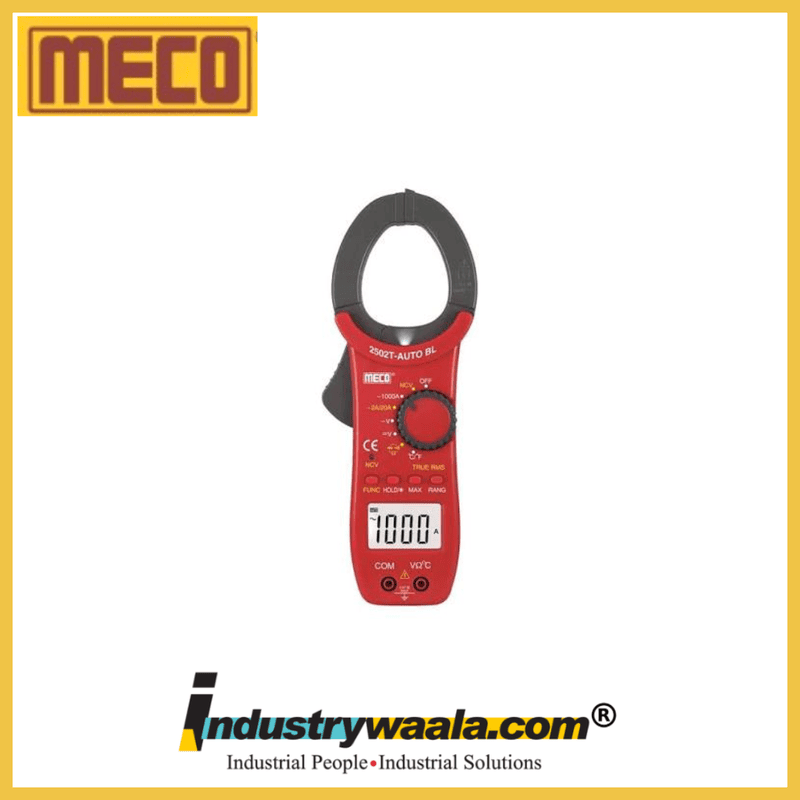

The MECO 2502T-AUTO BL Digital Clampmeter is a high-performance AC True RMS clamp meter designed for professional electrical testing, troubleshooting, and industrial maintenance applications. Its clamp-style design allows users to measure current safely without disconnecting the circuit, making it a convenient solution for electrical panels, motors, machines, and power systems.
Featuring True RMS measurement technology, the MECO 2502T-AUTO BL provides reliable readings even when testing modern electrical loads with complex waveforms. The instrument comes with a 3½-digit, 2000-count LCD display that delivers clear measurement visibility. The Auto and Manual Ranging feature improves testing efficiency by allowing users to quickly select or automatically adjust measurement ranges.
The clamp meter supports AC current measurement up to 1000A, making it suitable for heavy-duty electrical applications. It also measures AC voltage up to 750V, DC voltage up to 1000V, resistance up to 20MΩ, and temperature using a K-Type thermocouple. These multiple functions make it a versatile instrument for electrical inspection, troubleshooting, and preventive maintenance.
The MECO 2502T-AUTO BL is equipped with advanced features including Non-Contact Voltage (NCV) detection with LED, buzzer, and electric field strength indication, Data Hold, Maximum value measurement, audible continuity, diode testing, backlight display, and torchlight for clamp area illumination. These features improve safety and convenience during field operations and low-light working conditions.
With a large 52 mm jaw opening, the clamp meter can accommodate larger cables and conductors, making it suitable for industrial electrical systems. Its durable construction, ergonomic design, and professional measurement capabilities make the MECO 2502T-AUTO BL Digital Clampmeter an excellent choice for electrical contractors, service engineers, HVAC professionals, and industrial maintenance teams.
Key Features:
Professional AC True RMS Digital Clampmeter
3½ Digit LCD Display with 2000 Counts
Auto & Manual Ranging Operation
AC Current Measurement Up to 1000A
AC Voltage Measurement Up to 750V
DC Voltage Measurement Up to 1000V
Resistance Measurement Up to 20MΩ
Temperature Measurement with K-Type Thermocouple
Audible Continuity Test
Diode Test Function
Non-Contact Voltage (NCV) Detection
LED & Buzzer Voltage Warning
Data Hold Function
Maximum Reading Function
Backlit LCD Display
Clamp Torchlight
Auto Power Off
Low Battery Indication
Large Jaw Opening for Thick Cables
Suitable for Industrial & Professional Applications
