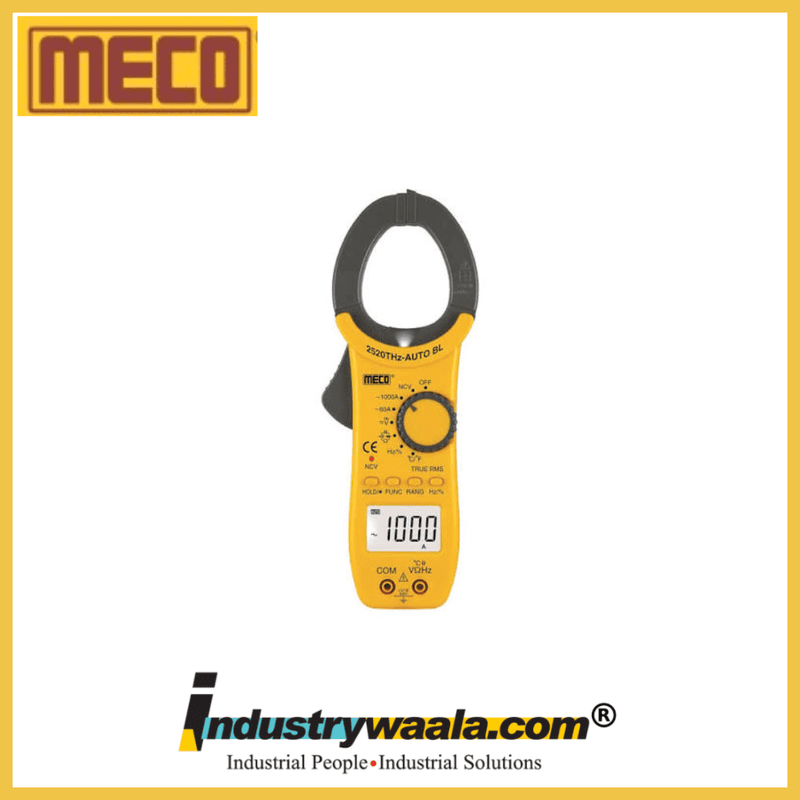

| Product Name | MECO 2520THz-AUTO BL Digital Clampmeter |
| Product | Type AC TRMS Digital Clampmeter / Tong Tester |
| Display | 3⅚ Digit LCD |
| Counts | 6000 Counts |
| Measurement | ype True RMS |
| Ranging | Auto / Manual |
| AC Current | Up to 1000A |
| AC Voltage | Up to 750V |
| DC Voltage | Up to 1000V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 600µF |
| Frequency | Up to 10MHz |
| Duty Cycle | 0.1% – 99% |
| Temperature | Yes (K-Type Thermocouple) |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes |
| Data Hold | Yes |
| Display Feature | Backlight |
| Torchlight | Yes |
| Power Supply | 2 × 1.5V AA Batteries |
| Safety Standard | CAT II 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9.5 x 3.5 x 24.5 cm |
The MECO 2520THz-AUTO BL Digital Clampmeter is a high-performance AC True RMS clamp meter designed for professional electrical testing, troubleshooting, and industrial maintenance applications. Its clamp-type design allows users to measure current safely without disconnecting the circuit, making it suitable for power systems, electrical panels, motors, machines, and industrial equipment.
Equipped with True RMS measurement technology, the MECO 2520THz-AUTO BL provides accurate readings even on complex electrical waveforms. The instrument features a 3⅚-digit, 6000-count LCD display with backlight for clear visibility in low-light working conditions. The Auto and Manual Ranging function allows technicians to select measurement modes according to their requirements for faster and more accurate testing.
The clamp meter supports AC current measurement up to 1000A, AC voltage up to 750V, and DC voltage up to 1000V. It also measures resistance up to 60MΩ, capacitance up to 600µF, frequency up to 10MHz, duty cycle, and temperature using the supplied K-Type thermocouple. These features make it a versatile instrument for electrical maintenance, automation systems, HVAC servicing, and electronic troubleshooting.
For improved safety and convenience, the MECO 2520THz-AUTO BL includes Non-Contact Voltage (NCV) detection with LED, buzzer, and electric field strength indication, audible continuity testing, diode testing, Data Hold, Auto Power Off, and Low Battery Indication. The built-in torchlight for clamp area illumination helps technicians work efficiently in dark panels and restricted spaces.
With a large 52 mm jaw opening, the clamp meter can easily accommodate thick cables and conductors. Its rugged construction, ergonomic design, and advanced measurement capabilities make the MECO 2520THz-AUTO BL Digital Clampmeter a reliable choice for industrial electricians, service engineers, maintenance teams, and professional technicians.
Key Features:
Professional AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Auto & Manual Ranging Operation
AC Current Measurement Up to 1000A
AC Voltage Measurement Up to 750V
DC Voltage Measurement Up to 1000V
Resistance Measurement Up to 60MΩ
Capacitance Measurement Up to 600µF
Frequency Measurement Up to 10MHz
Duty Cycle Measurement (0.1%–99%)
Temperature Measurement with K-Type Thermocouple
Audible Continuity Test
Diode Test Function
Non-Contact Voltage (NCV) Detection
LED & Buzzer Voltage Warning
Data Hold Function
Backlight LCD Display
Clamp Torchlight
Auto Power Off
Low Battery Indication
Large Jaw Opening for Heavy Cables
Professional Industrial Grade Design
