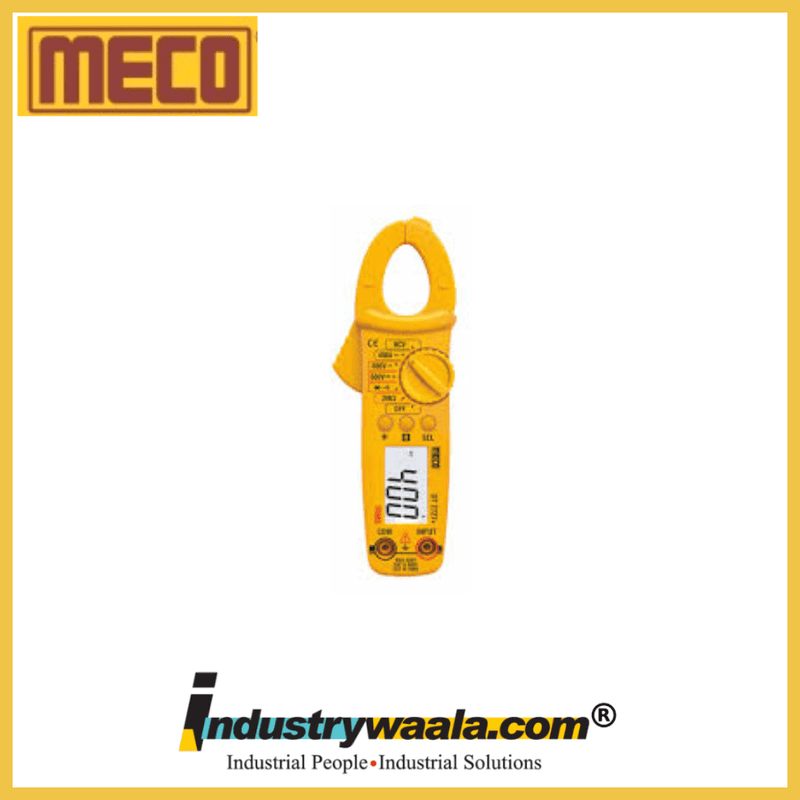

| Product Name | MECO 2727+ Digital Clampmeter |
| Product Type | AC Digital Clampmeter / Tong Tester |
| Display | 3½ Digit LCD |
| Counts | 1999 Counts |
| Measurement Type | True RMS |
| AC Current | Up to 400A |
| AC Voltage | Up to 600V |
| DC Voltage | Up to 600V |
| Resistance | Up to 2MΩ |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes |
| Display Feature | Backlight |
| Power Supply | 2 × 1.5V AAA Battery |
| Safety Feature | Overload Protection |
| Weight | 1 kg |
| Dimensions (L x W x H) | 6 x 3.4 x 17.5 cm |
The MECO 2727+ Digital Clampmeter is a reliable and lightweight professional testing instrument designed for electrical troubleshooting, industrial maintenance, and field service applications. Its clamp-style design allows users to measure AC current safely by clamping around a conductor without interrupting the electrical circuit, making it convenient for quick diagnostics and routine inspections.
Equipped with True RMS measurement technology, the MECO 2727+ provides accurate readings even when measuring non-linear AC loads. It features a 3½-digit LCD display with 1999 counts, offering clear measurement visibility for voltage, current, and resistance readings. The compact design makes it easy to carry and suitable for both workshop and onsite applications.
The clampmeter can measure AC current up to 400A, AC/DC voltage up to 600V, and resistance up to 2MΩ. It also includes essential testing functions such as audible continuity, diode testing, Non-Contact Voltage (NCV) detection, data hold, and backlight display for improved efficiency and safety during electrical testing.
Designed with user safety in mind, the MECO 2727+ includes overload protection, low battery indication, and auto power-off functionality to improve battery life and prevent operational errors. Its compact jaw opening supports cables up to approximately 23 mm diameter, making it suitable for general electrical wiring, panels, appliances, and industrial maintenance tasks.
The MECO 2727+ Digital Clampmeter is an excellent choice for electricians, electrical contractors, service engineers, HVAC technicians, and industrial maintenance teams who require a dependable, portable, and easy-to-use AC current measuring device.
Key Features:
3½ Digit LCD Display with 1999 Counts
True RMS AC Current Measurement
Measures AC Current up to 400A
AC/DC Voltage Measurement up to 600V
Resistance Measurement up to 2MΩ
Non-Contact Voltage (NCV) Detection with Buzzer & EF Strength
Audible Continuity Test
Diode Test Function
Data Hold Function
Backlight Display for Low-Light Conditions
Auto Power Off Feature
Low Battery Indication
Compact and Lightweight Design
Clamp Jaw Opening for Cable Diameter up to 23 mm
Supplied with Test Leads, Batteries, Carrying Case & Manual
