| Parameter | Details |
| Brand | MECO |
| Model | 3510PHW-AUTO |
| Product Type | Clamp-On TRMS Power Meter |
| Measurement Type | True RMS |
| System Support | 1 Phase & 3 Phase (3P3W / 3P4W) |
| Current Measurement | Up to 1000 A AC |
| Voltage Measurement | AC / DC Voltage |
| Power Measurement | kW, HP, kVA, kVAR, Power Factor |
| Display | 4 Digit 9999 Count Dual LCD |
| Frequency Measurement | Hz |
| Phase Function | 3 Phase Sequence Indicator |
| Jaw Opening | Cable Diameter up to 43 mm |
| Busbar Capacity | 65 mm × 16 mm |
| Power Supply | 9V Battery |
| Accessories | Test Leads, Battery, Carrying Case, Instruction Manual |
| Weight | 1 kg |
| Dimensions (L x W x H) | 4 x 24.7 x 9 cm |

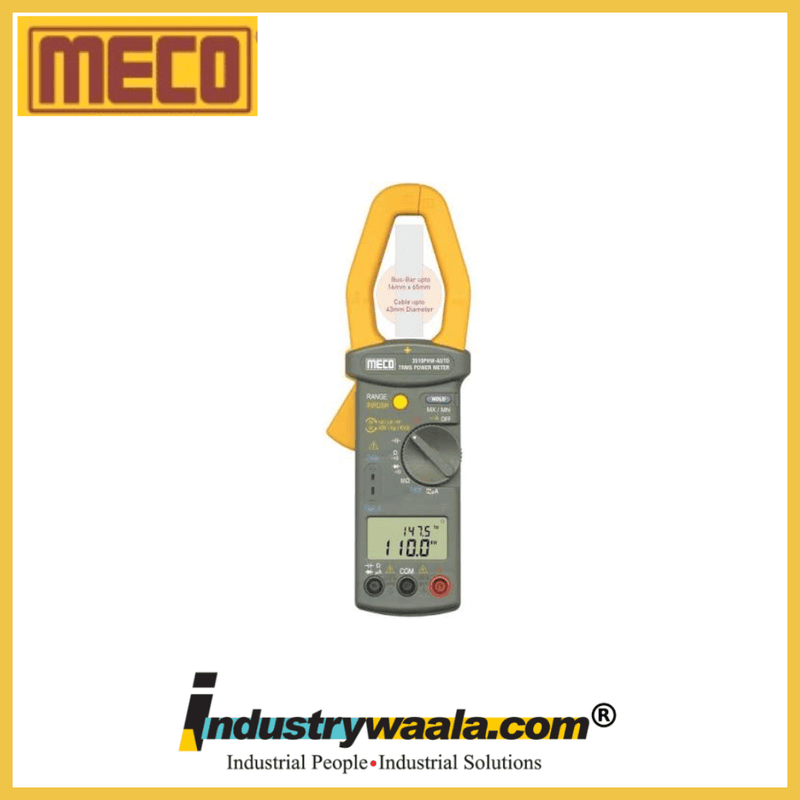

The MECO 3510PHW-AUTO Clamp-On Power Meter is an advanced electrical measurement instrument designed for professionals involved in power analysis, energy audits, and troubleshooting of electrical systems. Featuring True RMS technology, it provides accurate readings even in circuits with distorted waveforms and complex loads.
This clamp-on power meter is capable of measuring and automatically computing parameters for 1-phase and 3-phase electrical systems (3P3W / 3P4W). It measures AC voltage, AC current, true power (kW), horsepower (HP), apparent power (kVA), reactive power (kVAR), power factor (PF), frequency (Hz), phase angle, resistance, capacitance, diode testing, continuity, and temperature measurement.
The instrument features a 4-digit 9999-count LCD dual display, allowing users to view multiple parameters simultaneously such as kW + HP, kW + PF, kW + kVAR, kVA + phase angle, V + A, A + Hz, and V + Hz. This improves efficiency during electrical inspections by reducing the need for multiple instruments.
The 43 mm jaw opening allows easy measurement of large cables, while the meter can also accommodate busbars up to 65 mm × 16 mm, making it suitable for industrial panels, motors, compressors, generators, and power distribution systems. The clamp-on design enables safe current measurement without disconnecting circuits.
The MECO 3510PHW-AUTO also includes advanced features such as automatic ranging, 3-phase sequence indication, data hold, auto power-off, inrush current measurement, maximum/minimum recording, and low battery indication. These features make it a dependable tool for identifying load imbalance, checking motor performance, evaluating HVAC systems, and conducting preventive electrical maintenance.
With its compact design, rugged construction, and wide measurement capability, the MECO 3510PHW-AUTO Clamp-On Power Meter is an excellent choice for electrical engineers, technicians, energy auditors, and industrial maintenance professionals requiring accurate and reliable power measurements.
