| Product Name | MECO 36-AUTO BL Digital Clampmeter |
| Product Type | DC / AC TRMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Counts | 6000 Counts |
| Measurement Type | True RMS |
| Ranging | Auto Ranging |
| DC Current | 60A / 600A |
| AC Current | 60A / 600A |
| DC Voltage | 600mV, 6V, 60V, 600V |
| AC Voltage | 6V, 60V, 600V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 1MHz |
| Duty Cycle | 0.1% – 99.9% |
| Temperature | -20°C to 750°C |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes (LED, Buzzer & EF Strength) |
| Data Hold | Yes |
| Display | Backlit LCD |
| Torchlight | Yes |
| Auto Power Off | Yes |
| Battery | 2 × 1.5V AAA Batteries |
| Battery Life | Approx. 200 Hours |
| Safety Category | CAT II 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 6.5 x 2.8 x 18.5 cm |

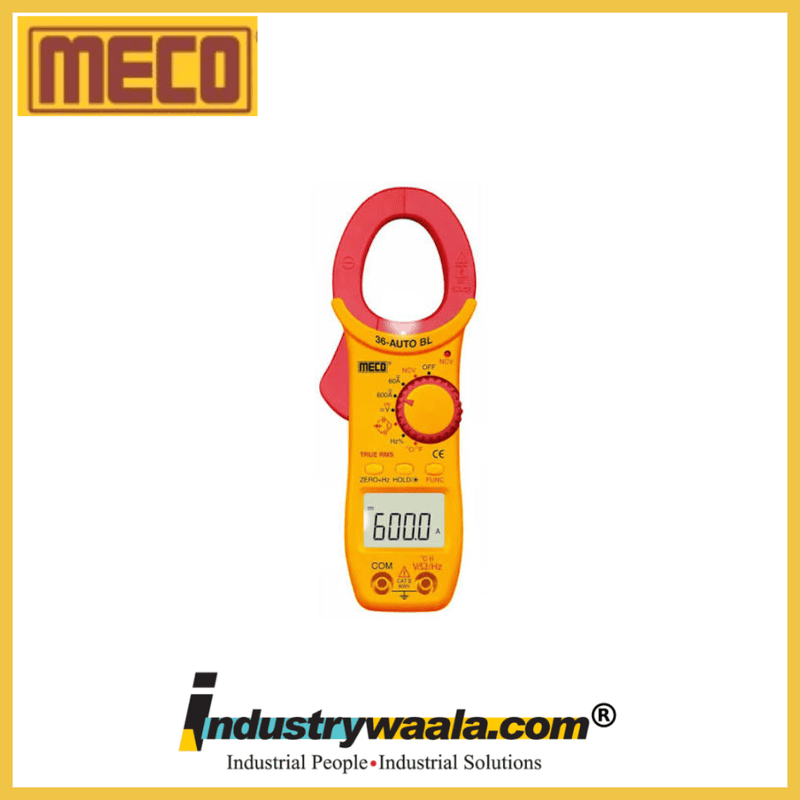

The MECO 36-AUTO BL Digital Clampmeter is a professional-grade DC/AC True RMS clamp meter designed for safe, accurate, and efficient electrical measurements in industrial, commercial, and residential environments. Its compact clamp design allows users to measure current without disconnecting the electrical circuit, making it an essential tool for troubleshooting, preventive maintenance, and electrical inspections.
Built with True RMS technology, the MECO 36-AUTO BL delivers highly accurate readings on both standard and non-linear electrical loads, making it suitable for modern electrical systems, motors, inverters, UPS systems, and automation equipment. The 3⅚-digit 6000-count LCD display ensures clear visibility of readings, while the auto-ranging function automatically selects the appropriate measurement range for quick and convenient operation.
This clamp meter measures DC and AC current up to 600A and DC/AC voltage up to 600V. It also supports resistance measurement up to 60MΩ, capacitance up to 60mF, frequency measurement up to 1MHz, duty cycle, and temperature measurement from -20°C to 750°C using the supplied K-Type thermocouple. These multiple functions make it suitable for a wide variety of electrical testing and diagnostic applications.
For enhanced safety, the MECO 36-AUTO BL features Non-Contact Voltage (NCV) detection with LED, buzzer, and electric field strength indication, allowing users to detect live voltage without direct contact. Additional functions including Data Hold, audible continuity, diode testing, backlit display, built-in torchlight, Auto Power Off, and Low Battery Indication improve convenience and reliability during field operations.
Its rugged construction, ergonomic grip, and 25 mm maximum jaw opening make it easy to carry and comfortable to use, even in confined electrical panels. The MECO 36-AUTO BL is an ideal choice for electricians, industrial maintenance teams, service engineers, solar technicians, HVAC professionals, and automotive electrical technicians requiring a dependable and portable clamp meter.
Key Features:
Professional DC / AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Auto Ranging Operation
Measures 600A DC Current
Measures 600A AC Current
Measures 600V DC Voltage
Measures 600V AC Voltage
Resistance Measurement up to 60MΩ
Capacitance Measurement up to 60mF
Frequency Measurement up to 1MHz
Duty Cycle Measurement
Temperature Measurement with K-Type Thermocouple
Non-Contact Voltage (NCV) Detection
LED & Buzzer Voltage Alert
Audible Continuity Test
Diode Test Function
Data Hold Function
LCD Backlight
Built-in Clamp Torchlight
Auto Power Off
Low Battery Indication
Compact, Lightweight & Durable Design
Suitable for Industrial, Commercial & Automotive Applications
