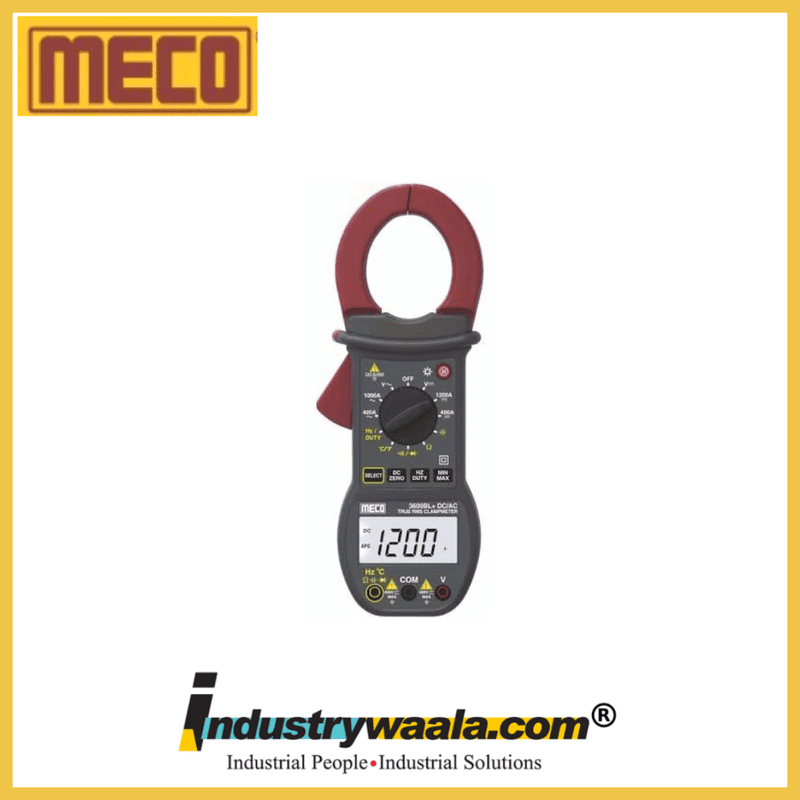

| Product Name | MECO 3600BL+ Digital Clampmeter |
| Product Type | DC / AC True RMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Display Count | 6000 Counts |
| Measurement Type | True RMS |
| DC Current | Up to 1000A |
| AC Current | Up to 1000A |
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 750V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 10MHz |
| Duty Cycle | Yes |
| Temperature | -20°C to 1000°C |
| NCV Detection | Yes |
| Live Wire Detection | Yes |
| Data Hold | Yes |
| MAX/MIN | Yes |
| Relative (REL) | Yes |
| Continuity Test | Audible |
| Diode Test | Yes |
| Backlight | Yes |
| Torchlight | Yes |
| Auto Power Off | Yes |
| Battery | 2 × 1.5V AA Batteries |
| Safety Category | CAT III 1000V / CAT IV 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9.3 x 4.2 x 25.2 cm |
The MECO 3600BL+ Digital Clampmeter is a high-performance True RMS DC/AC clamp meter developed for professional electrical testing, industrial maintenance, and troubleshooting applications. Its advanced True RMS technology ensures highly accurate measurements for both standard sinusoidal signals and non-linear waveforms generated by modern electrical equipment such as variable frequency drives (VFDs), UPS systems, inverters, and industrial automation controls.
The clamp-style design enables safe current measurement without disconnecting the circuit, making it ideal for electrical panels, switchgear, motors, generators, transformers, HVAC systems, renewable energy installations, and industrial machinery. The 3⅚-digit, 6000-count LCD display provides clear, high-resolution readings, while the backlight ensures excellent visibility in dark working environments.
The MECO 3600BL+ measures DC and AC current up to 1000A, DC voltage up to 1000V, and AC voltage up to 750V. It also offers resistance measurement up to 60MΩ, capacitance measurement up to 60mF, frequency measurement up to 10MHz, duty cycle, and temperature measurement using a K-Type thermocouple, making it a versatile instrument for complete electrical diagnostics.
For enhanced safety and convenience, the meter includes Non-Contact Voltage (NCV) detection, Live Wire Detection, Data Hold, MAX/MIN recording, Relative (REL) mode, audible continuity, diode testing, Auto Power Off, low battery indication, and a built-in LED torchlight for working inside electrical cabinets and poorly lit areas. The large clamp jaw allows easy measurement of thick cables and busbars.
With its rugged construction, ergonomic design, and advanced measurement functions, the MECO 3600BL+ is an ideal choice for professional electricians, maintenance engineers, industrial service technicians, HVAC specialists, renewable energy installers, and electrical contractors who require precision, durability, and safety in one compact instrument.
Key Features:
True RMS DC/AC Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Measures 1000A DC Current
Measures 1000A AC Current
Measures 1000V DC Voltage
Measures 750V AC Voltage
Resistance Measurement up to 60MΩ
Capacitance Measurement up to 60mF
Frequency Measurement up to 10MHz
Duty Cycle Measurement
Temperature Measurement with K-Type Thermocouple
Non-Contact Voltage (NCV) Detection
Live Wire Detection
MAX/MIN Recording
Relative (REL) Mode
Data Hold Function
Backlit LCD Display
Built-in LED Torchlight
Audible Continuity Test
Diode Test Function
Auto Power Off
Low Battery Indication
Large Clamp Jaw for Thick Conductors
Rugged Industrial Design
CAT III Safety Rated
