| Product Name | MECO 3690P+ AUTO Digital Clampmeter |
| Product Type | DC / AC TRMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Counts | :6000 Counts |
| Measurement Type | True RMS |
| Ranging | Auto Ranging |
| DC Current | Up to 600A |
| AC Current | Up to 600A |
| DC Voltage | Up to 600V |
| AC Voltage | Up to 600V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 9.999MHz |
| Duty Cycle | 0.1% – 99.9% |
| Continuity Test | Audible |
| Diode Test | Yes |
| NCV Detection | Yes |
| Data Hold | Yes |
| Torchlight | Yes |
| Battery Supply | 2 × 1.5V AAA Batteries |
| Jaw Opening | 35 mm Cable Diameter Max. |
| Weight | 1 kg |
| Dimensions (L x W x H) | 8.5 x 4.6 x 22 cm |

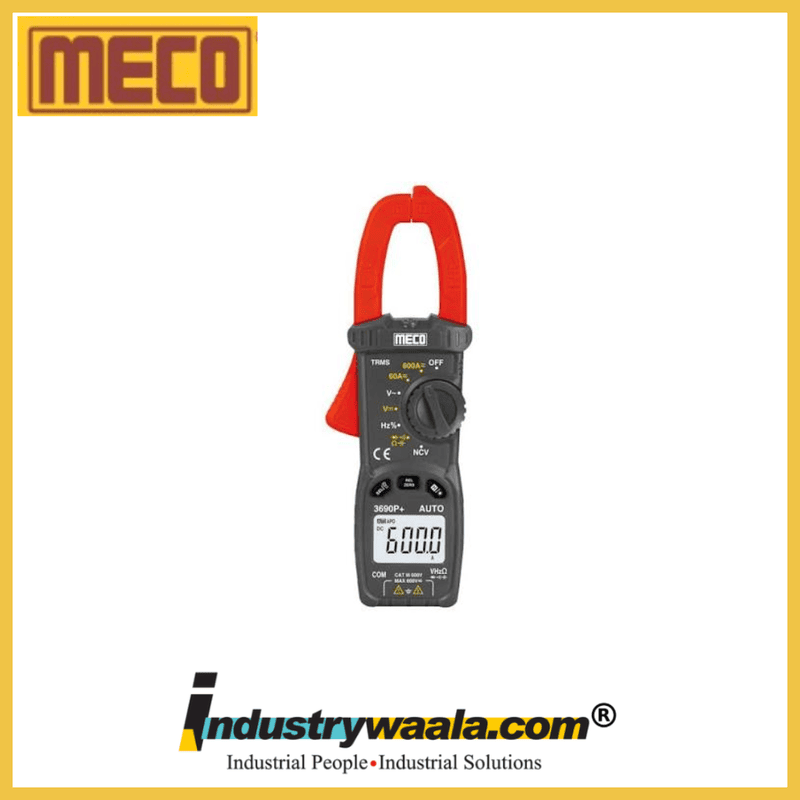

The MECO 3690P+ AUTO Digital Clampmeter is a high-quality True RMS DC/AC clamp meter designed for professional electrical testing, servicing, and maintenance applications. Its compact clamp design allows users to measure current safely without disconnecting the circuit, making it an ideal tool for electrical panels, motors, machinery, power systems, and field troubleshooting.
Featuring True RMS measurement technology, the MECO 3690P+ AUTO provides accurate readings even when measuring modern electrical loads with complex waveforms. The meter comes with a 3⅚-digit, 6000-count LCD display, offering clear and precise measurement results for professional applications.
The clamp meter supports DC and AC current measurement up to 600A, making it suitable for both industrial and commercial electrical testing. It also measures DC voltage and AC voltage up to 600V, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 9.999MHz, and duty cycle measurement. This wide range of functions makes it a versatile instrument for electrical inspection and troubleshooting.
The Auto Ranging function automatically selects the correct measurement range, improving testing speed and reducing operational errors. The instrument also includes professional features such as Non-Contact Voltage (NCV) detection, Data Hold, diode testing, audible continuity, backlight display, orange backlight high-voltage alert, clamp torchlight, Auto Power Off, and low battery indication.
Designed with a durable body and ergonomic grip, the MECO 3690P+ AUTO provides excellent portability and reliability for daily professional use. Its 35 mm maximum jaw opening allows measurement of commonly used electrical cables and conductors. It is an ideal choice for electrical contractors, HVAC technicians, service engineers, automotive technicians, and industrial maintenance teams.
Key Features:
Professional DC / AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Auto Ranging Operation
DC Current Measurement Up to 600A
AC Current Measurement Up to 600A
DC Voltage Measurement Up to 600V
AC Voltage Measurement Up to 600V
Resistance Measurement Up to 60MΩ
Capacitance Measurement Up to 60mF
Frequency Measurement Up to 9.999MHz
Duty Cycle Measurement
Audible Continuity Test
Diode Test Function
Non-Contact Voltage (NCV) Detection
Data Hold Function
Backlight Display
High Voltage Alert Backlight
Clamp Area Torchlight
Auto Power Off
Low Battery Indication
Compact and Portable Design
Suitable for Professional Electrical Applications
