| Product Name | MECO 4050 Digital Clampmeter |
| Product Type | DC / AC True RMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Display Count | 6000 Counts |
| Measurement | Type True RMS |
| DC Current | Up to 1000A |
| AC Current | Up to 1000A |
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 1000V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 10MHz |
| Duty Cycle | Yes |
| Temperature | -20°C to 1000°C |
| NCV Detection | Yes |
| Live Wire Detection | Yes |
| Data Hold | Yes |
| MAX/MIN | Yes |
| Relative (REL) | Yes |
| Continuity Test | Audible |
| Diode Test | Yes |
| Backlight | Yes |
| Torchlight | Yes |
| Auto Power Off | Yes |
| Power Supply | 2 × 1.5V AA Batteries |
| Safety Category | CAT III 1000V / CAT IV 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9.5 x 4.4 x 25.5 cm |

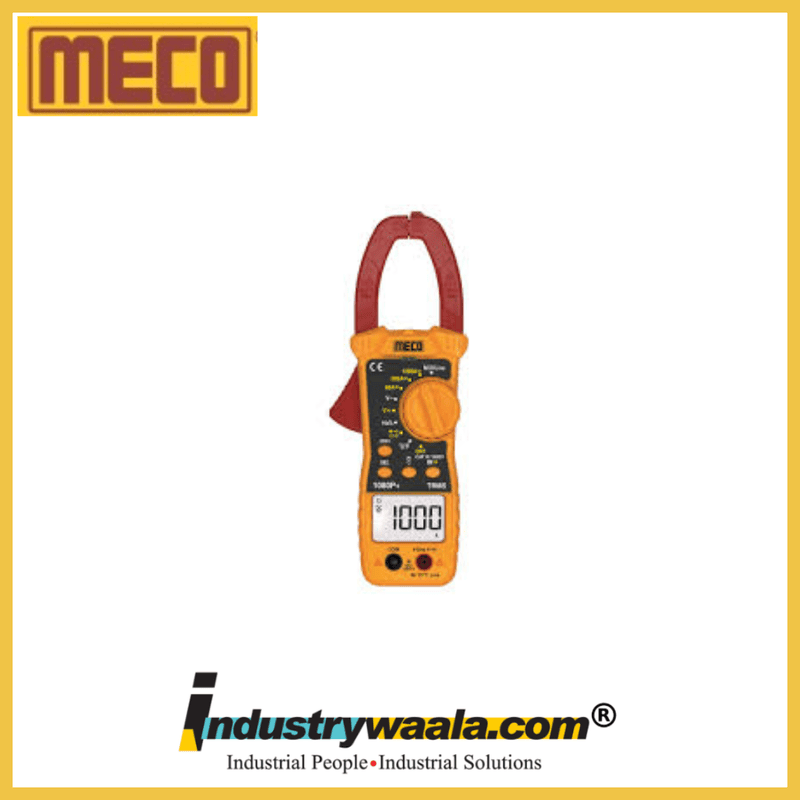

The MECO 4050 Digital Clampmeter is a high-performance True RMS DC/AC digital clamp meter designed to deliver accurate and reliable electrical measurements in demanding industrial, commercial, and maintenance applications. Built with advanced True RMS technology, it accurately measures both sinusoidal and distorted waveforms, making it suitable for testing modern electrical equipment including inverters, UPS systems, variable frequency drives (VFDs), motors, generators, transformers, and industrial automation systems.
The clamp-style design enables safe current measurements without disconnecting the electrical conductor, improving operator safety while reducing equipment downtime. Its 3⅚-digit, 6000-count backlit LCD display provides clear visibility and high-resolution readings even in dimly lit electrical panels and service environments.
The MECO 4050 measures DC and AC current up to 1000A and DC/AC voltage up to 1000V, making it suitable for heavy-duty electrical testing. It also offers resistance measurement up to 60MΩ, capacitance up to 60mF, frequency measurement up to 10MHz, duty cycle, and temperature measurement using a K-Type thermocouple, allowing technicians to perform comprehensive electrical diagnostics using a single instrument.
For enhanced safety and productivity, the MECO 4050 includes Non-Contact Voltage (NCV) detection, Live Wire Detection, Data Hold, MAX/MIN recording, Relative (REL) mode, audible continuity testing, diode testing, Auto Power Off, Low Battery Indication, and a built-in LED torchlight for working in dark or confined spaces. Its rugged construction and ergonomic design make it ideal for daily field use.
With a large clamp jaw and durable housing, the MECO 4050 Digital Clampmeter is an excellent choice for electrical contractors, industrial maintenance teams, HVAC technicians, renewable energy professionals, utility engineers, and service technicians who require dependable performance and advanced measurement capabilities.
Key Features:
Professional DC / AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Measures 1000A DC Current
Measures 1000A AC Current
Measures 1000V DC Voltage
Measures 1000V AC Voltage
Resistance Measurement up to 60MΩ
Capacitance Measurement up to 60mF
Frequency Measurement up to 10MHz
Duty Cycle Measurement
Temperature Measurement with K-Type Thermocouple
Non-Contact Voltage (NCV) Detection
Live Wire Detection
MAX/MIN Recording
Relative (REL) Function
Data Hold Function
Audible Continuity Test
Diode Test Function
LCD Backlight
Built-in LED Torchlight
Auto Power Off
Low Battery Indication
Large Clamp Jaw for Heavy Conductors
Rugged Industrial Design
CAT III 1000V / CAT IV 600V Safety Rating
