| pecification | Details |
| Product Name | MECO 4455 Digital Clampmeter |
| Product Type | DC / AC TRMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Display Count | 6000 Counts |
| Measurement | Type True RMS |
| DC Current | High Current Measurement |
| AC Current | High Current Measurement |
| DC Voltage | Up to 1000V |
| AC Voltage | Up to 750V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 60mF |
| Frequency | Up to 10MHz |
| Duty Cycle | Yes |
| Temperature | Yes (K-Type Thermocouple) |
| NCV Detection | Yes |
| Continuity Test | Audible |
| Diode Test | Yes |
| Data Hold | Yes |
| MAX/MIN | Yes |
| Backlight | Yes |
| Auto Power Off | Yes |
| Battery Supply | 2 × 1.5V AA Batteries |
| Safety Category | CAT III 1000V / CAT IV 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9.6 x 4.5 x 25.5 cm |

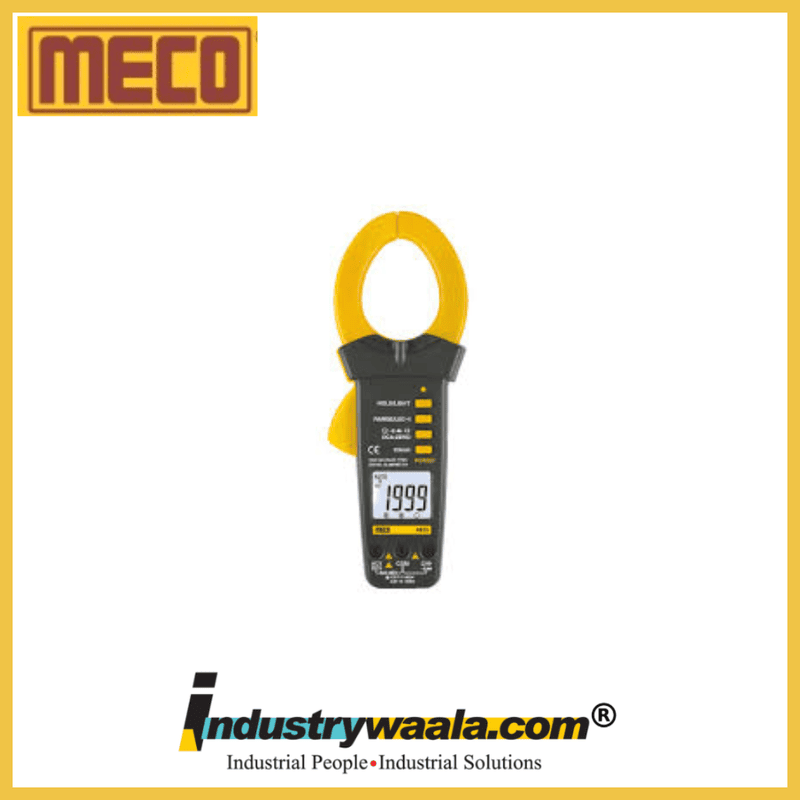

The MECO 4455 Digital Clampmeter is a high-performance True RMS DC/AC clamp meter developed for professional electrical measurement, maintenance, and troubleshooting applications. Designed with advanced measurement technology, it provides accurate and stable readings on both conventional electrical loads and modern electronic systems with complex waveforms.
The True RMS capability of the MECO 4455 ensures reliable measurement accuracy when testing equipment such as motors, generators, inverters, UPS systems, VFD drives, electrical panels, and industrial automation systems. Its clamp design allows technicians to measure current safely without interrupting the circuit, improving efficiency and reducing the risk of electrical hazards.
The instrument provides high-capacity electrical measurement functions including DC and AC current measurement, DC/AC voltage measurement, resistance, capacitance, frequency, duty cycle, and temperature measurement. These multiple functions make the MECO 4455 a versatile diagnostic tool suitable for industrial plants, electrical workshops, and professional service environments.
The large 3⅚-digit 6000-count LCD display provides clear and accurate readings, while the backlight feature allows easy viewing in dark electrical panels and low-light working areas. The ergonomic design and durable body construction ensure comfortable handling during extended field operations.
For enhanced user safety and convenience, the MECO 4455 includes features such as Non-Contact Voltage (NCV) detection, audible continuity testing, diode testing, Data Hold, MAX/MIN recording, Auto Power Off, and Low Battery Indication. These functions help technicians perform faster and more reliable electrical inspections.
With its rugged design, advanced measurement capability, and professional-grade performance, the MECO 4455 Digital Clampmeter is an ideal choice for electricians, industrial maintenance teams, electrical contractors, HVAC professionals, and engineers requiring accurate DC/AC True RMS measurements.
Key Features:
Professional DC / AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
True RMS Measurement Technology
DC Current Measurement
AC Current Measurement
DC Voltage Measurement
AC Voltage Measurement
Resistance Measurement
Capacitance Measurement
Frequency Measurement
Duty Cycle Measurement
Temperature Measurement with K-Type Thermocouple
Non-Contact Voltage (NCV) Detection
Audible Continuity Test
Diode Test Function
Data Hold Function
MAX/MIN Recording
Backlit LCD Display
Auto Power Off
Low Battery Indication
Overload Protection
Rugged Industrial Design
Compact and Portable Construction
