| Model | MECO 603 JUNIOR |
| Display | 3½-Digit LCD |
| Display Count | 2000 Counts |
| Ranging | Manual |
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V |
| AC Voltage | 200V / 750V |
| DC Current | 200mA / 10A |
| AC Current | 200mA / 10A |
| Resistance | 200Ω / 2kΩ / 200kΩ / 2MΩ / 20MΩ |
| NCV Detection | Yes |
| Diode Test | Yes |
| Transistor Test | hFE |
| Continuity Test | Audible |
| Data Hold | Yes |
| Torch Light | Yes |
| Auto Power Off | Yes |
| Power Supply | 3 × 1.5V AAA Batteries |
| Battery Life | Approx. 200 Hours |
| Safety Category | CAT II 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 4.5 x 14.7 x 7.1 cm |

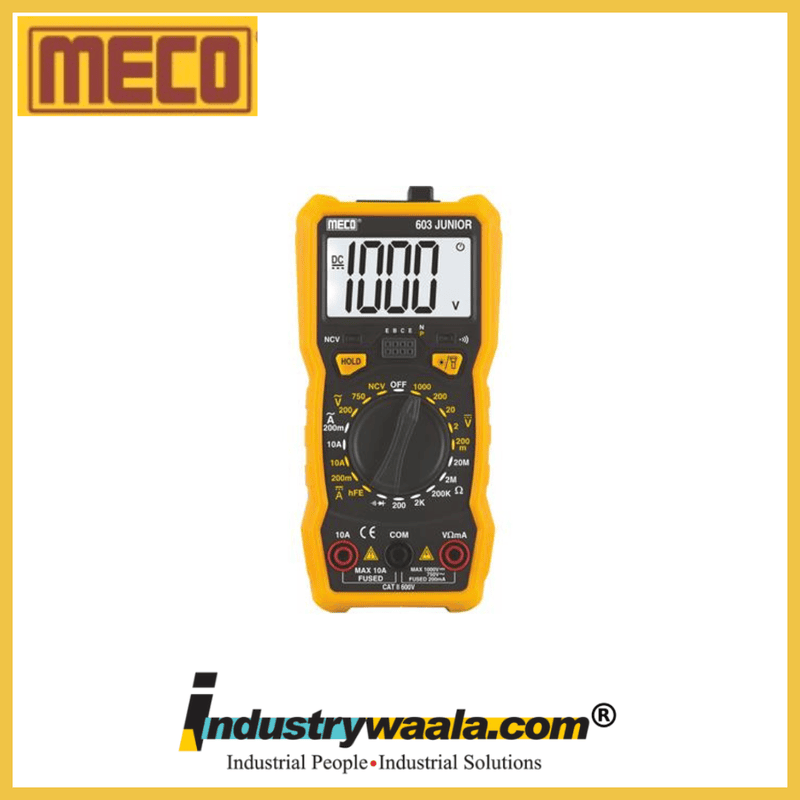

The MECO 603 JUNIOR Digital Multimeter is a compact yet powerful professional measuring instrument built for reliable electrical testing in industrial, commercial, and maintenance applications. Featuring a 3½-digit LCD display with 2000 counts, the meter delivers stable and accurate readings while allowing users to manually select the appropriate measurement range for greater control.
The multimeter measures DC Voltage up to 1000V, AC Voltage up to 750V, DC Current up to 10A, AC Current up to 10A, and Resistance up to 20MΩ, making it suitable for testing electrical panels, motors, appliances, wiring systems, and electronic circuits.
For enhanced convenience and safety, the 603 JUNIOR includes Non-Contact Voltage (NCV) Detection with LED, buzzer, and electric field (EF) strength indication, allowing users to detect live wires without direct contact. It also features Diode Test, Transistor (hFE) Test, Audible Continuity, Data Hold, LCD Backlight, Torch Light, Low Battery Indication, and Auto Power Off to improve efficiency during field work.
The included protective holster with a built-in magnet enables hands-free operation on metal surfaces, making the instrument especially useful during panel inspections and electrical maintenance. Designed to meet CAT II 600V safety standards, the MECO 603 JUNIOR is an excellent choice for electricians, technicians, industrial maintenance personnel, educational laboratories, and service engineers.
Key Features:
- 3½-Digit LCD Display
- 2000 Count Display
- Manual Ranging
- DC Voltage Measurement up to 1000V
- AC Voltage Measurement up to 750V
- DC Current Measurement up to 10A
- AC Current Measurement up to 10A
- Resistance Measurement up to 20MΩ
- Non-Contact Voltage (NCV) Detection
- LED, Buzzer & EF Strength Indication
- LCD Backlight
- Built-in Torch Light
- Data Hold Function
- Diode Test
- Transistor (hFE) Test
- Audible Continuity Test
- Auto Power Off (APO)
- Low Battery Indication
- Magnetic Protective Holster
- Test Lead Gripper
- CAT II 600V Safety Rating
- Compact Professional Design
