| Brand | Meco |
| Model | 7002 |
| Product Type | Milli-Ohmmeter / Micro-Ohmmeter |
| Basic Accuracy | ±0.25% |
| Maximum Test Current | 5A (120mΩ) |
| Measurement Type | Four Terminal Kelvin Measurement |
| Measurement Range | 1mΩ – 120mΩ |
| Resolution | 1µΩ Best Resolution |
| Display | 4 5/6 Digit LCD with Backlight |
| Range Selection | Auto / Manual |
| Memory | 3000 Measurements |
| Interface | RS232C to USB Communication |
| Battery | Rechargeable Battery |
| Charging Time | Approx. 10 Hours |
| Operating Temperature | 0°C to 50°C |
| Weight | 1 kg |
| Dimensions (L x W x H) | 15.8 x 7 x 26 cm |

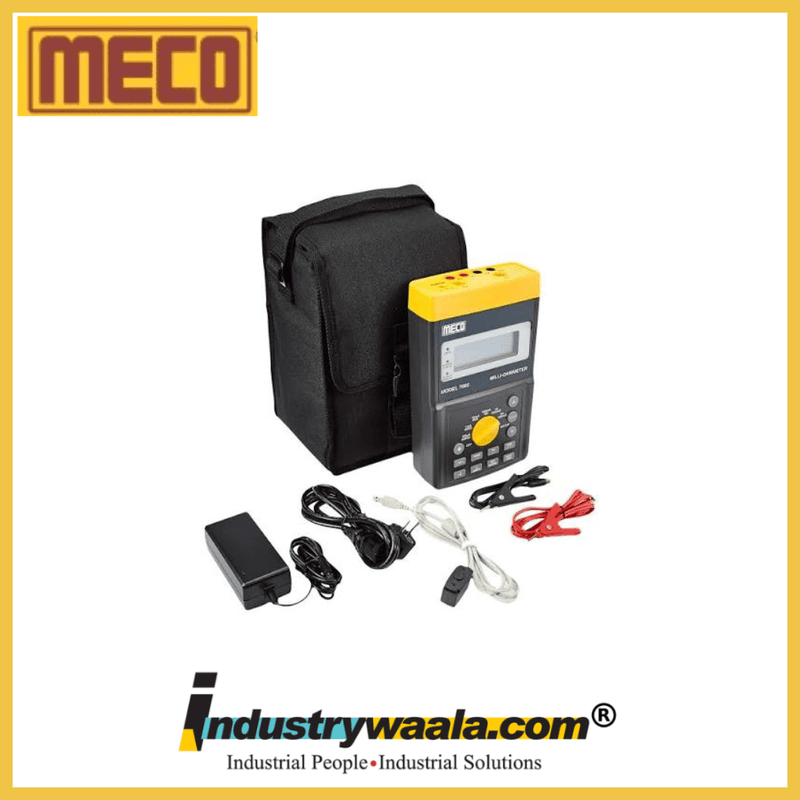

The Meco 7002 Milli-Ohmmeter and Micro-Ohmmeter is designed for engineers, technicians and quality control professionals who require accurate measurement of extremely low resistance values. This advanced measuring instrument is capable of measuring resistance in the milli-ohm range with excellent accuracy by using the four-wire Kelvin measurement method.
The Kelvin measurement system compensates for the resistance of test leads and contact points, ensuring precise readings even when testing low-resistance components. The instrument is widely used in electrical manufacturing industries, transformer testing, motor winding inspection, cable resistance measurement and component quality testing.
Key Features:
1. High Accuracy Low Resistance Measurement
The Meco 7002 provides a basic accuracy of ±0.25% and is designed for precise measurement of low resistance values. It supports measurement ranges from 1mΩ to 120mΩ with high sensitivity, making it suitable for testing electrical connections, conductors and industrial components.
2. Four Terminal Kelvin Measurement Technology
The advanced four-terminal Kelvin measurement method eliminates errors caused by test lead resistance and contact resistance. This feature ensures stable and accurate measurement results for low resistance applications where conventional ohmmeters may not provide reliable readings.
3. Auto & Manual Range Selection
The instrument offers both automatic and manual range selection for convenient operation. Users can easily select suitable measurement ranges according to the testing requirement, improving efficiency during laboratory and field testing.
4. Data Storage & Communication Facility
Meco 7002 includes memory storage for up to 3000 measurement records and programmable HI-LO PASS limit settings with alarm memory. It also supports PC communication through RS232C to USB bridge cable for data analysis and reporting.
5. Portable Design with Rechargeable Battery
The compact design with rechargeable battery operation makes it suitable for both laboratory and onsite applications. The large backlit LCD display provides clear visibility, while features like HOLD function, low battery indication and invalid measurement LED indication improve user convenience.
