| Brand | Meco |
| Model | 90A |
| Product Type | Universal Calibrator |
| Display | 5½ Digit LED Display |
| DC Voltage Range | 200mV to 1000V |
| AC Voltage Range | 200mV to 1000V |
| DC Current Range | 100µA to 20A |
| AC Current Range | 100µA to 20A |
| Frequency Output | 50Hz / 60Hz / 400Hz |
| Resistance Range | 100Ω to 24kΩ |
| DC Stability | <0.01% FS / 2 Minutes |
| AC Stability | <0.03% FS / 2 Minutes |
| Distortion | <0.5% |
| Power Supply | 230V AC, 50/60Hz |
| Communication | PC Interface / Data Output |
| Application | Calibration & Testing Equipment |
| Weight | 1 kg |
| Dimensions (L x W x H) | 48 x 14.7 x 48 cm |

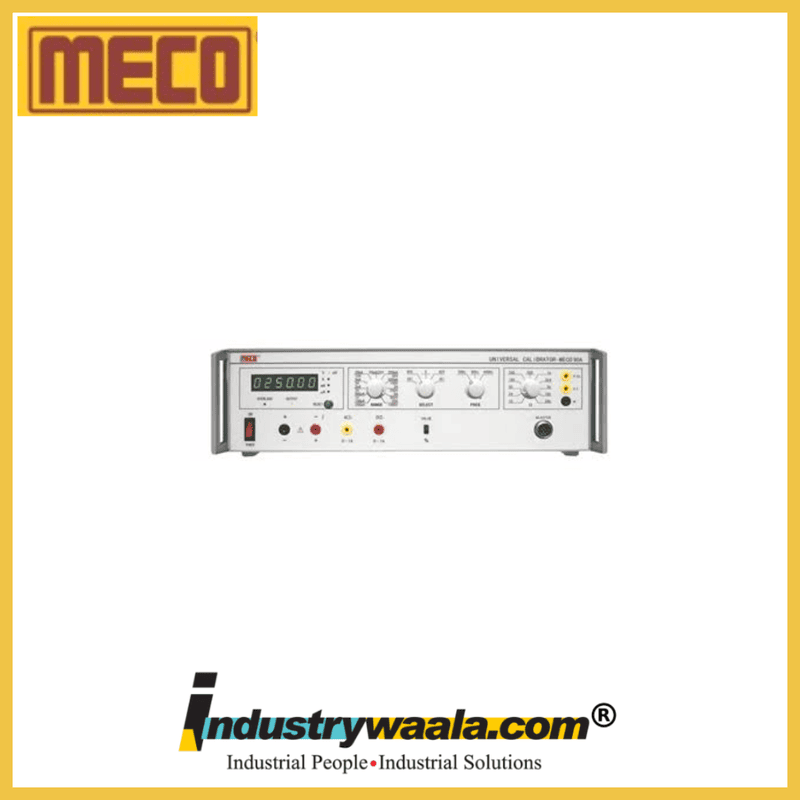

Meco 90A Universal Calibrator is a professional-grade calibration equipment designed to deliver precise and stable electrical outputs for calibration of various measuring instruments. It is widely used in industrial calibration laboratories, manufacturing units, research & development departments, and testing facilities where high accuracy measurement verification is required.
The Meco 90A calibrator provides multiple output functions including AC voltage, DC voltage, AC current, DC current, frequency, and resistance calibration. It helps engineers and technicians maintain accuracy and reliability of electrical testing instruments by comparing their readings with standard reference outputs.
This calibrator features a high-resolution digital display for easy monitoring of output values and enables smooth adjustment of calibration points. Its advanced design ensures excellent stability, low distortion, and dependable performance during long-duration calibration operations.
Key Features:
1. Multi-Parameter Calibration Capability
Meco 90A Universal Calibrator supports calibration of multiple electrical parameters including AC/DC voltage, AC/DC current, frequency, and resistance. It is suitable for calibration of digital multimeters, analog meters, clamp meters, insulation testers, and other electrical measuring instruments.
2. High Accuracy & Stable Output Performance
The instrument provides highly stable output signals with excellent accuracy, making it suitable for precision calibration applications. It ensures reliable testing results and helps maintain measurement standards in industrial environments.
3. Wide Output Range
The calibrator offers a wide range of outputs:
DC/AC Voltage: 200mV to 1000V
DC/AC Current: 100µA to 20A
Frequency Output: 50Hz / 60Hz / 400Hz
Resistance Output: 100Ω to 24kΩ
This wide range makes it suitable for various electrical testing requirements.
4. Easy Operation & Digital Display
The 5½ digit LED display provides clear readings of output values. The front panel controls allow quick selection and adjustment of calibration parameters, improving efficiency during testing procedures.
5. Industrial Grade Construction
Designed for professional use, Meco 90A offers robust construction and dependable operation. It is suitable for calibration labs, electrical industries, educational institutes, and quality assurance departments.
