| Brand | Meco |
| Model | 90P |
| Product Type | AC Multifunctional Calibrator |
| Display | 5½-Digit VFD Digital Display |
| AC Voltage Output | 0–1000 V |
| AC Current Output | 0–100 A |
| Power Output | 0–100 kW |
| Frequency Range | 40–70 Hz |
| Power Factor | -1 to +1 |
| Phase Angle | 0°–359.99° |
| Voltage & Current Stability | <0.01% FS / 2 min |
| Power Stability | <0.02% FS / 2 min |
| Distortion | <0.5% |
| Power Supply | 230V AC, 50/60 Hz |
| Power Consumption | <300 VA |
| Operating Temperature | 5°C to 35°C |
| Relative Humidity | ≤80% |
| Weight | 1 kg |
| Dimensions (L x W x H) | 54 x 19.2 x 48 cm |

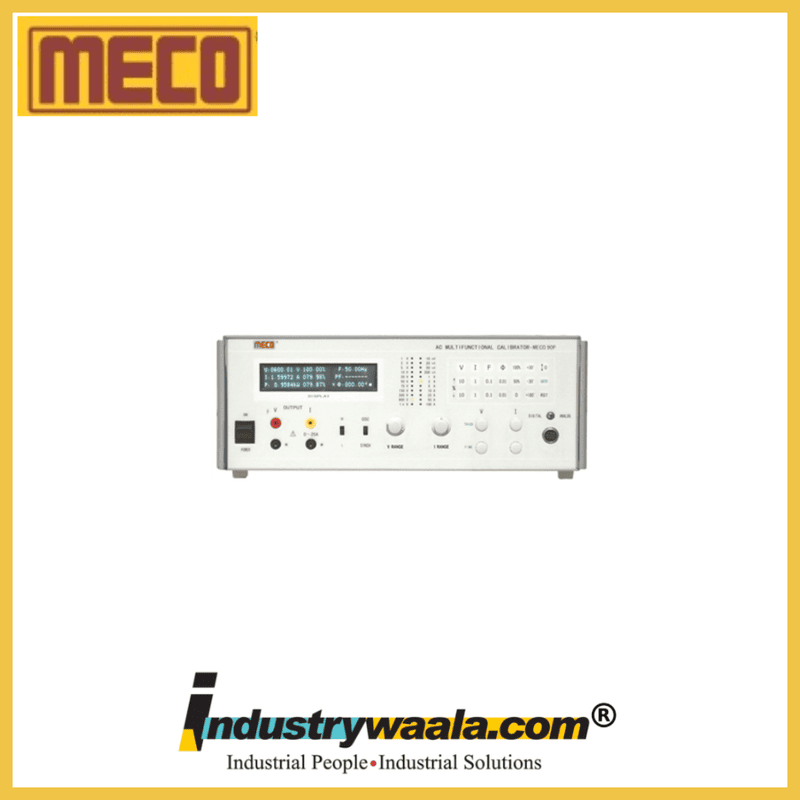

The Meco 90P AC Multifunctional Calibrator is a professional-grade calibrating equipment engineered to provide highly accurate AC electrical outputs for calibration of power measuring instruments and energy transducers. Designed with advanced electronic circuitry, it delivers stable voltage, current, frequency, power, phase angle, and power factor outputs, ensuring dependable calibration results in demanding industrial environments.
The instrument is capable of generating AC Voltage from 0–1000V, AC Current up to 100A, Power up to 100kW, Frequency from 40Hz to 70Hz, Power Factor from -1 to +1, and Phase Angle from 0° to 359.99°. It also supports calibration of energy meters and power transducers, making it an ideal solution for electrical testing laboratories and utility service centers.
Equipped with a bright 5½-digit VFD digital display, the Meco 90P provides clear and precise indication of output values. The front panel allows users to operate in Analog or Digital mode. Fine and coarse adjustment knobs enable smooth analog output adjustment, while the supplied key adjuster provides precise digital step adjustments for accurate calibration.
Designed for long-term reliability, the calibrator offers excellent stability, low distortion (<0.5%), and built-in overload and short-circuit protection. It is suitable for calibration of power meters, AC voltmeters, ammeters, wattmeters, VAR meters, frequency meters, power factor meters, phase angle meters, and energy meters across industries including power generation, manufacturing, R&D, educational institutes, and NABL calibration laboratories.
Key Features:
High-precision AC Multifunctional Calibrator.
Generates AC Voltage up to 1000V.
AC Current output up to 100A.
Power output up to 100kW.
Frequency output from 40Hz to 70Hz.
Power Factor range -1 to +1.
Phase Angle output 0° to 359.99°.
5½-digit VFD Digital Display.
Analog and Digital output adjustment modes.
Excellent stability with low distortion.
Built-in overload and short-circuit protection.
Suitable for calibration of power meters and energy transducers.
