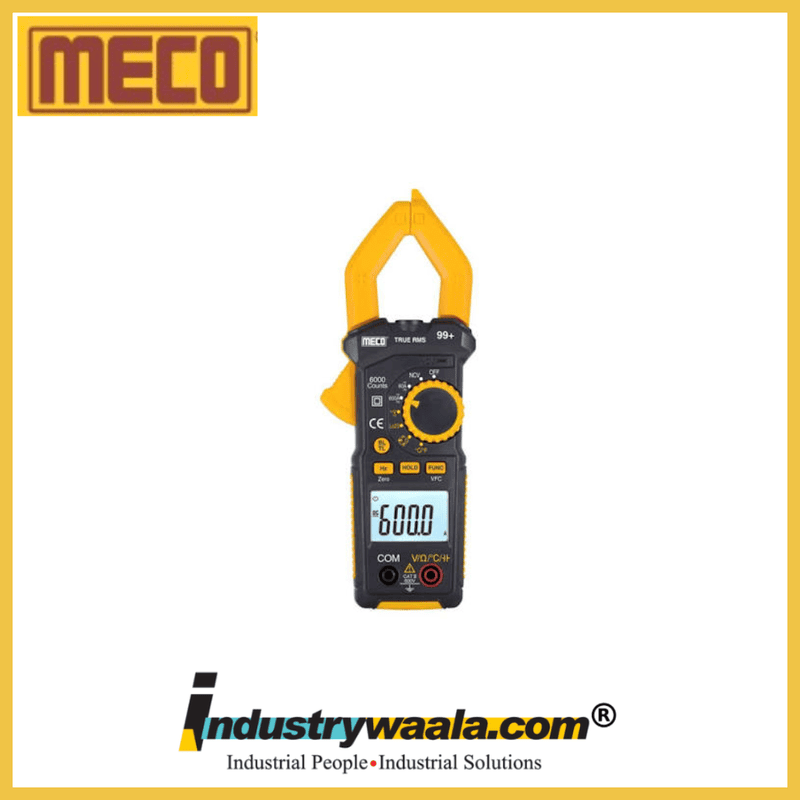

| Product Name | MECO 99+ Digital Clampmeter |
| Product Type | DC / AC TRMS Digital Clampmeter |
| Display | 3⅚ Digit LCD |
| Counts | 6000 Counts |
| Measurement Type | True RMS |
| Ranging | Auto Ranging |
| DC Current | Up to 600A |
| AC Current | Up to 600A |
| DC Voltage | Up to 600V |
| AC Voltage | Up to 600V |
| Resistance | Up to 60MΩ |
| Capacitance | Up to 100mF |
| Frequency | Up to 100kHz |
| Duty Cycle | 0.1% – 99.9% |
| Temperature | Up to 260°C (K-Type Thermocouple) |
| LoZ Function | Yes |
| VFC Mode | Yes |
| NCV Detection | Yes |
| Continuity Test | Audible |
| Diode Test | Yes |
| Data Hold | Yes |
| Display | Backlit LCD |
| Torchlight | :Yes |
| Auto Power Off | Yes |
| Power Supply | 2 × 1.5V AAA Batteries |
| Safety Category | CAT II 600V |
| Weight | 1 kg |
| Dimensions (L x W x H) | 7.1 x 3 x 19 cm |
The MECO 99+ Digital Clampmeter is a high-performance DC/AC True RMS digital clamp meter built for professional electrical inspection, troubleshooting, and preventive maintenance. Its compact clamp design allows users to safely measure current without disconnecting the electrical circuit, making it ideal for industrial machinery, electrical panels, commercial installations, renewable energy systems, and automotive diagnostics.
Featuring True RMS technology, the MECO 99+ delivers highly accurate readings for both sinusoidal and non-linear electrical loads commonly found in modern electrical equipment. The 3⅚-digit, 6000-count LCD display provides clear, precise measurements, while the auto-ranging function automatically selects the appropriate measurement range for faster and easier operation.
The instrument measures DC and AC current up to 600A and DC/AC voltage up to 600V, making it suitable for a wide range of residential, commercial, and industrial applications. It also offers temperature measurement using a K-Type thermocouple, resistance up to 60MΩ, capacitance, frequency, and duty cycle measurement for comprehensive electrical diagnostics.
For enhanced safety and reliability, the MECO 99+ includes Non-Contact Voltage (NCV) detection with LED and buzzer alerts, LoZ (Low Impedance Voltage) mode to eliminate ghost voltages, and VFC (Variable Frequency Drive) mode for accurate voltage measurements on VFD-controlled equipment. Additional features such as Data Hold, audible continuity, diode testing, backlit LCD, built-in torchlight, Auto Power Off, and Low Battery Indication make it a dependable tool for demanding fieldwork.
Its ergonomic body, durable construction, and 30 mm jaw opening ensure comfortable handling and reliable operation in tight workspaces. The MECO 99+ is ideal for electrical contractors, industrial maintenance teams, HVAC professionals, service engineers, solar installers, and automotive technicians who require a compact, feature-rich, and accurate clamp meter.
Key Features:
Professional DC / AC True RMS Digital Clampmeter
3⅚ Digit 6000 Count LCD Display
Auto Ranging Operation
Measures 600A DC Current
Measures 600A AC Current
Measures 600V DC Voltage
Measures 600V AC Voltage
Resistance Measurement up to 60MΩ
Capacitance Measurement
Frequency Measurement
Duty Cycle Measurement
Temperature Measurement (K-Type Thermocouple)
LoZ (Low Impedance Voltage) Mode
VFC (Variable Frequency Drive) Mode
Non-Contact Voltage (NCV) Detection
Audible Continuity Test
Diode Test Function
Data Hold Function
LCD Backlight
Built-in Clamp Torchlight
Auto Power Off
Low Battery Indication
Compact, Lightweight & Durable Design
Suitable for Industrial, Commercial & Automotive Applications
