| Display | 3½ Digit LCD (1999 Counts) |
| Ranging | Auto & Manual |
| DC Voltage | 200mV – 1000V |
| AC Voltage | 200mV – 750V |
| DC Current | 200µA – 10A |
| AC Current | 200µA – 10A |
| Resistance | Up to 20MΩ |
| Temperature | -20°C to 1300°C |
| Continuity Test | Yes (Audible) |
| Diode Test | Yes |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Power Supply | 2 × 1.5V AA Batteries |
| Safety Category | CAT II |
| Weight | 1 kg |
| Dimensions (L x W x H) | 3.3 x 16.1 x 8.6 cm |

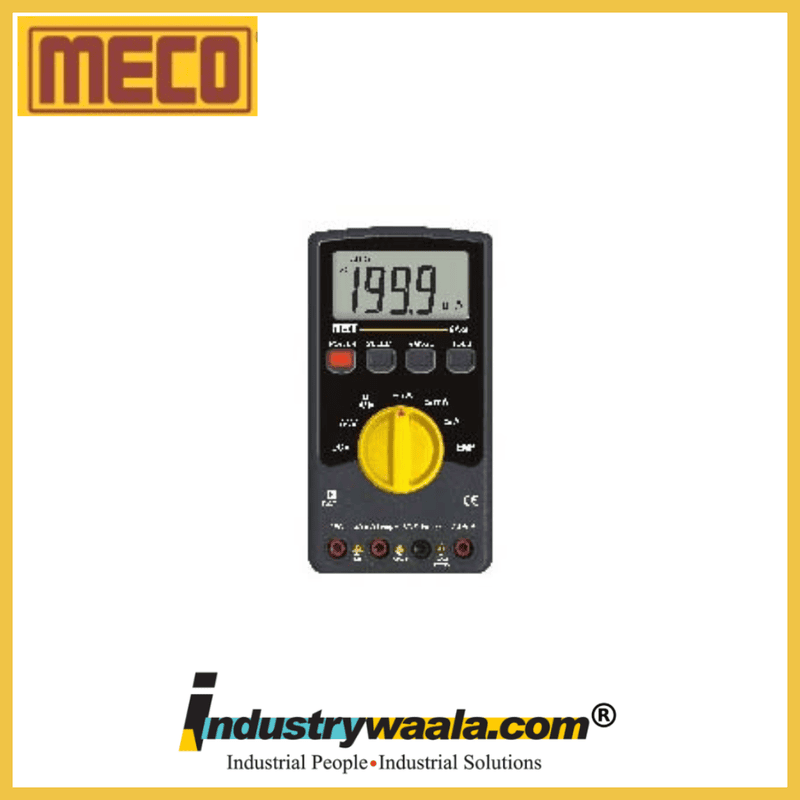

The MECO 9A06 Professional Digital Multimeter is a versatile and dependable measuring instrument engineered for precision electrical testing in industrial, commercial, educational, and maintenance applications. Its 3½-digit LCD display with 1999 counts provides clear and accurate readings, while the Auto and Manual Ranging functions allow users to choose between convenience and precise control.
The multimeter measures DC Voltage up to 1000V, AC Voltage up to 750V, AC/DC Current up to 10A, Resistance up to 20MΩ, and Temperature from -20°C to 1300°C (with K-Type thermocouple). It also includes diode testing, audible continuity, and data hold, making circuit diagnostics faster and more efficient.
Designed with user safety and convenience in mind, the MECO 9A06 features Auto Power-Off (APO) to extend battery life, overload protection, and low battery indication. Its compact and rugged design makes it suitable for field service, electrical installations, laboratory testing, HVAC maintenance, and electronics repair.
The multimeter is supplied with test leads, carrying case, batteries, instruction manual, and a K-Type thermocouple, making it ready for immediate professional use.
Key Features:
- 3½ Digit LCD Display (1999 Counts)
- Auto & Manual Range Selection
- Measures AC/DC Voltage up to 1000V/750V
- AC/DC Current Measurement up to 10A
- Resistance Measurement up to 20MΩ
- Temperature Measurement (-20°C to 1300°C)
- Audible Continuity Test
- Diode Test Function
- Data Hold Feature
- Auto Power-Off (APO)
- Low Battery Indication
- Rugged Compact Design
- Suitable for Industrial, Electrical & Electronic Applications
