| Brand | Meco |
| Model | BCM 6300 |
| Product Type | Battery Capacity (IR) Meter |
| Measurement Parameters | Internal Resistance, Voltage & Temperature |
| Measurement Method | 4 Wire Kelvin Measurement |
| Battery Types Tested | Lithium, Ni-Cd, Lead Acid, Alkaline & Others |
| Resistance Range | 19.999mΩ / 199.99mΩ / 1.9999Ω / 19.999Ω / 199.99Ω |
| Voltage Measurement Range | ±0.000V to 99.999V AC |
| Measurement Current | 50mA, 5mA, 500µA, 50µA |
| Measurement Frequency | 1kHz AC ±10% |
| Measurement Speed | 3 Times / Second |
| Temperature Measurement Range | -10°C to 50°C |
| Comparator Function | PASS / WARNING / FAIL |
| Comparator Memory | 30 Sets |
| Maximum Input Voltage | 100V DC |
| Power Supply | 6 × 1.5V AA Batteries |
| Weight | 1 kg |
| Dimensions (L x W x H) | 4 x 10.5 x 17.5 cm |

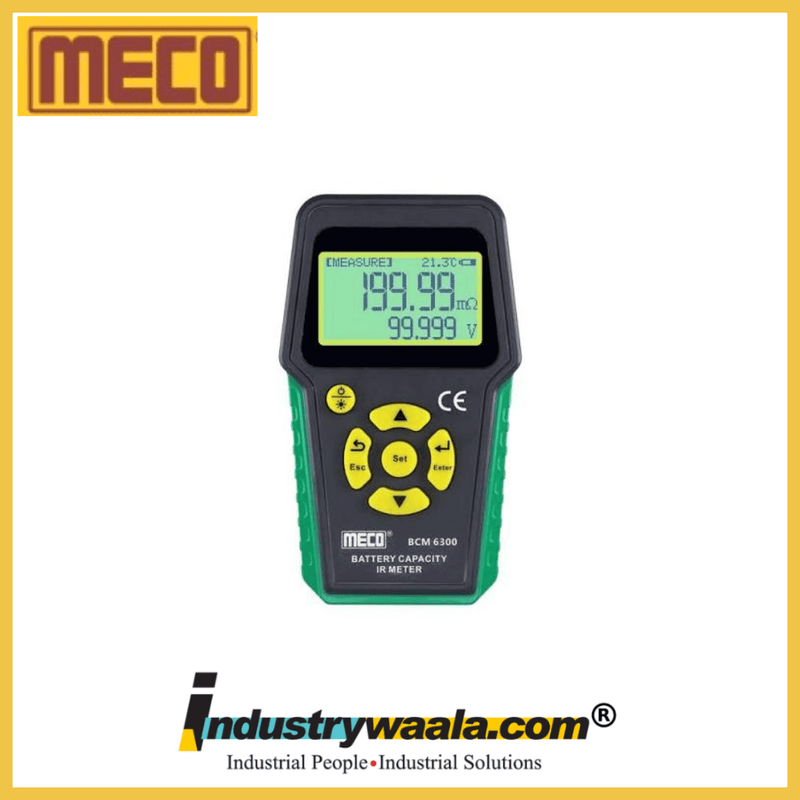

The Meco BCM 6300 Battery Capacity (IR) Meter is an advanced testing instrument developed for checking battery performance, capacity condition and operational reliability. It helps users identify battery degradation by measuring internal resistance, voltage and temperature simultaneously, providing a complete overview of battery health.
Unlike conventional battery testers, the BCM 6300 uses a four-wire Kelvin measurement method, which reduces measurement errors caused by lead resistance and contact resistance. It allows users to perform online battery testing without shutting down the battery system, making it suitable for critical power backup applications.
Key Features:
1. Accurate Internal Resistance Measurement
The Meco BCM 6300 measures battery internal resistance with high accuracy to determine battery ageing and performance condition. Increased internal resistance generally indicates battery deterioration, helping users identify weak batteries before failure.
2. Four Wire Kelvin Measurement Technology
The advanced four-terminal Kelvin measurement system eliminates errors caused by test lead resistance and provides stable, accurate readings. This makes the meter suitable for professional battery inspection and maintenance applications.
3. Multiple Battery Type Testing
The BCM 6300 supports testing of various battery technologies including:
Lithium Batteries
Nickel-Cadmium Batteries
Lead-Acid Batteries
Alkaline Batteries
Other rechargeable and non-rechargeable battery types
This makes it a versatile solution for industrial and electronic battery testing.
4. PASS / WARNING / FAIL Battery Evaluation
The built-in comparator function allows users to set resistance and voltage limits. The instrument automatically evaluates battery condition and displays status as:
PASS – Battery condition is good
WARNING – Battery requires monitoring
FAIL – Battery replacement recommended
5. Portable Design with Easy Operation
The compact and lightweight design makes the BCM 6300 convenient for field testing and maintenance work. It features a large LCD display with backlight, auto power-off function, data hold facility and low battery indication for user convenience.
