| Brand | Meco |
| Model | DBM72 |
| Product Type | Digital Battery Meter / Load Tester |
| Battery Type | Lead Acid & Li-ion Battery |
| Battery Voltage | 6V / 12V DC |
| Battery Capacity | Range 40Ah – 200Ah |
| Battery Load Test Current | 80A |
| Internal Resistance Measurement | Load Test & 4-Wire Method |
| Battery Condition Display | GOOD / WEAK / BAD |
| Load Test Timer | Approx. 10 Seconds Auto Cut-Off |
| Data Function | Auto Data Hold |
| Safety Rating | CAT III 600V |
| Cable Length | Approx. 300 mm |
| Weight | 1 kg |
| Dimensions (L x W x H) | 11.5 x 7 x 20.5 cm |

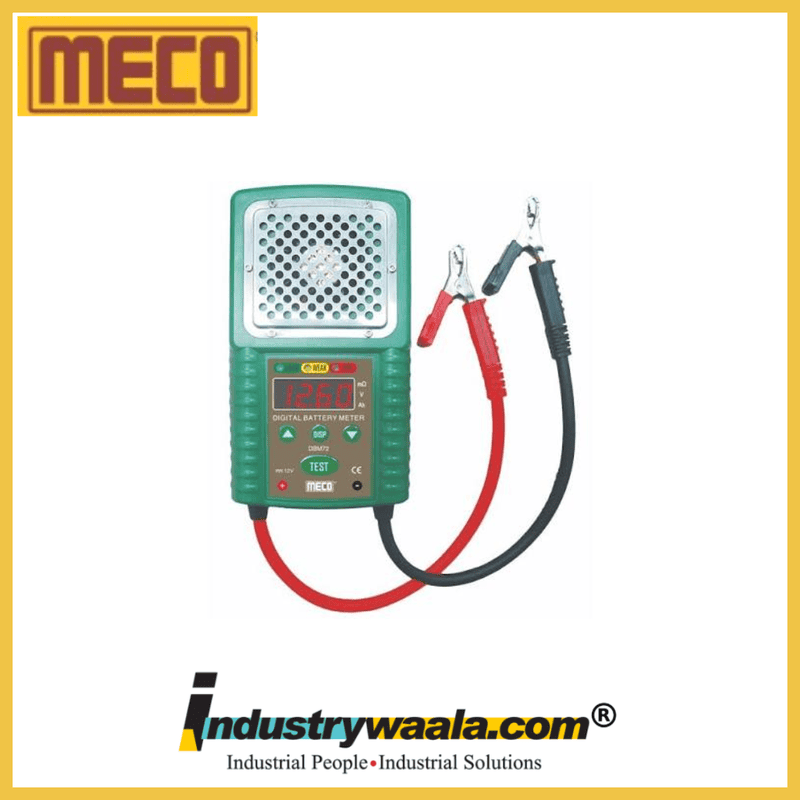

The Meco DBM72 Digital Battery Meter is a reliable and accurate testing solution for analyzing the condition of medium-capacity batteries used in vehicles, power systems and industrial equipment. It helps technicians quickly determine battery performance by applying a controlled load and measuring voltage drop, internal resistance and overall battery condition.
The instrument supports 6V and 12V Lead Acid & Li-ion batteries with a capacity range of 40Ah to 200Ah. It is designed to perform load testing with an 80A discharge current, helping identify weak batteries that may fail under operating conditions.
Key Features:
1. High Current Battery Load Testing
The Meco DBM72 performs an 80A discharge current load test to evaluate actual battery performance under load conditions. This helps identify battery strength and remaining operational capability for automotive and industrial applications.
2. Supports 6V & 12V Battery Testing
This battery meter is designed for testing 6V and 12V DC batteries with capacity ranging from 40Ah to 200Ah. It is suitable for Lead Acid and Li-ion battery testing applications.
3. Dual Internal Resistance Measurement
The DBM72 provides two methods of internal resistance checking:
Load Test Method
Four-Wire Measurement Method
This helps provide accurate analysis of battery condition and performance.
4. Easy Battery Condition Indication
The tester displays battery health status through LED indicators:
Green – GOOD
Yellow – WEAK
Red – BAD
This allows users to quickly identify battery condition without complex calculations.
5. Safety Protection & User-Friendly Operation
The instrument includes a built-in timer that automatically cuts off the load after approximately 10 seconds. It also provides temperature control, reverse polarity protection, overload voltage protection and auto data hold for safe and convenient operation.
