| Brand | Meco |
| Model | DIT 936PI |
| Product Type | Digital Insulation Tester |
| Insulation Test Voltage | 100V / 250V / 500V / 1000V DC |
| Insulation Resistance Range | Up to 20 GΩ |
| Low Resistance Range | Up to 60 Ω |
| AC Voltage Measurement | Up to 600V AC |
| Display | 4 Digit LCD |
| Display Count | 2000 Counts |
| Display Type | Large LCD with Backlight |
| PI Function | Available |
| DAR Function | Available |
| Data Hold | Available |
| High Voltage Indication | Available |
| Safety Standard | IEC/EN 61010-1 |
| Safety Category | CAT II 1000V, CAT III 600V |
| Power Supply | 8 × 1.5V AA Batteries / 12V DC |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Humidity | RH < 80% Operating |
| Weight | 1 kg |
| Dimensions (L x W x H) | 7 x 17.9 x 13.3 cm |

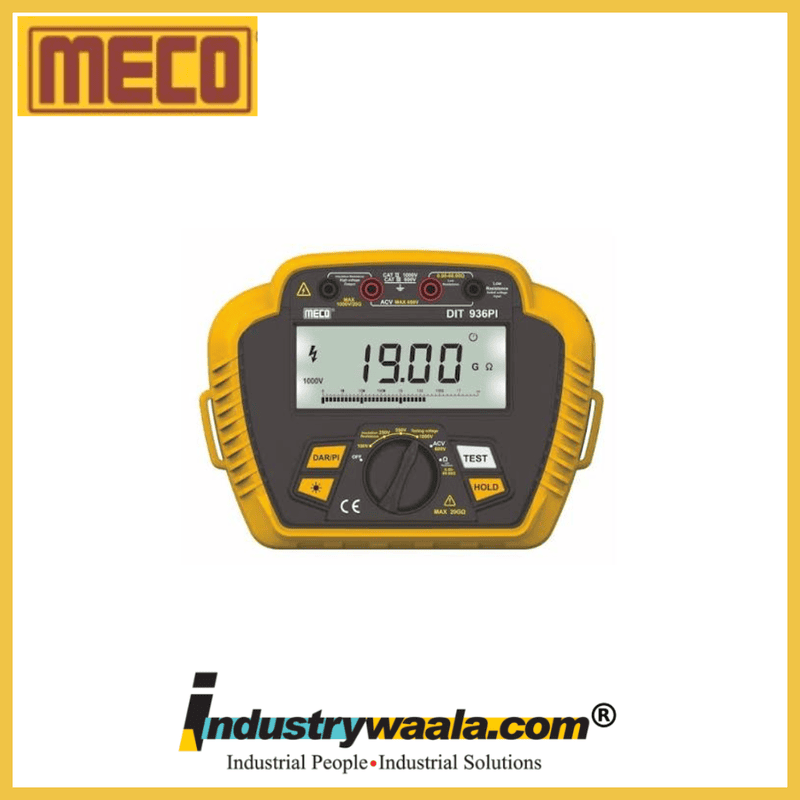

The Meco DIT 936PI Digital Insulation Tester is an advanced electrical testing instrument developed for professional insulation resistance measurement and preventive maintenance applications. It is designed to evaluate insulation quality and detect potential electrical faults in industrial and commercial electrical equipment.
With selectable insulation test voltages of 100V, 250V, 500V, and 1000V DC, the DIT 936PI provides versatile testing capability for different types of electrical installations. It can measure insulation resistance up to 20 GΩ, making it suitable for testing high-performance electrical equipment such as transformers, motors, generators, cables, switches, and power systems.
The instrument includes advanced diagnostic functions such as:
PI (Polarization Index) measurement for evaluating insulation condition over time
DAR (Dielectric Absorption Ratio) measurement for analyzing insulation absorption characteristics
Low resistance measurement up to 60 Ω
AC voltage measurement up to 600V
These functions make the Meco DIT 936PI highly useful for preventive maintenance and condition monitoring of electrical systems.
The tester features a 4-digit (2000 counts) large LCD display with backlight, providing clear visibility of measurement readings even in low-light environments. The built-in High Voltage indication alerts the user during insulation testing to improve operational safety.
The Meco DIT 936PI offers range selection and single-person push-button operation, allowing technicians to perform insulation tests quickly and efficiently. The Auto Power Off (APO) and Data Hold functions improve convenience during field operations.
Designed for durability, the tester comes with a shock, dust, and moisture-resistant casing along with a heavy-duty rubber holster, making it suitable for industrial environments. It complies with IEC/EN 61010-1 safety standards and supports CAT II 1000V and CAT III 600V safety categories.
The Meco DIT 936PI can operate using eight 1.5V AA batteries or 12V DC supply, providing flexibility for both field and workshop applications. It is supplied with insulation test leads, alligator clips, batteries, 12V connector cable, carrying bag, instruction manual, and calibration certificate.
Key Features:
1kV Digital Insulation Tester
Insulation resistance measurement up to 20 GΩ
Test voltage selection:
100V / 250V / 500V / 1000V DCPI (Polarization Index) function
DAR (Dielectric Absorption Ratio) function
Low resistance measurement up to 60 Ω
AC voltage measurement up to 600V
4-digit (2000 counts) large LCD display with backlight
Auto range insulation testing
Data Hold function
Auto Power Off (APO) function
High voltage indication
Battery / 12V DC operated
Shock, dust & moisture-resistant casing
Heavy-duty rubber holster
CAT II 1000V / CAT III 600V safety rating
