| Brand | Meco |
| Model | DIT 954-6R |
| Product Type | Digital Insulation Tester |
| Test Voltage | 100V / 250V / 500V / 1000V / 2500V / 5000V DC |
| Insulation Resistance Range | 0.1 MΩ to 200 GΩ |
| Display | 3½ Digit LCD |
| Display Count | 1999 Counts |
| Digit Height | 29 mm |
| Display Type | Large LCD with Backlight |
| Test Current | 2 mA Maximum |
| Accuracy | ±(3% rdg + 5 dgt) (Typical) |
| Data Hold | Available |
| Auto Range | Available |
| High Voltage Warning | Red LED Indicator |
| Power Supply | 8 × 1.5V AA Batteries + AC Adaptor |
| Safety Standard | IEC/EN 61010-1 & 61010-31 |
| EMC Standard | IEC 61326-1 Class B |
| Protection Rating | IP44 |
| Over Voltage Category | CAT III 600V |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Weight | 1 kg |
| Dimensions (L x W x H) | 7.5 x 19 x 15.5 cm |

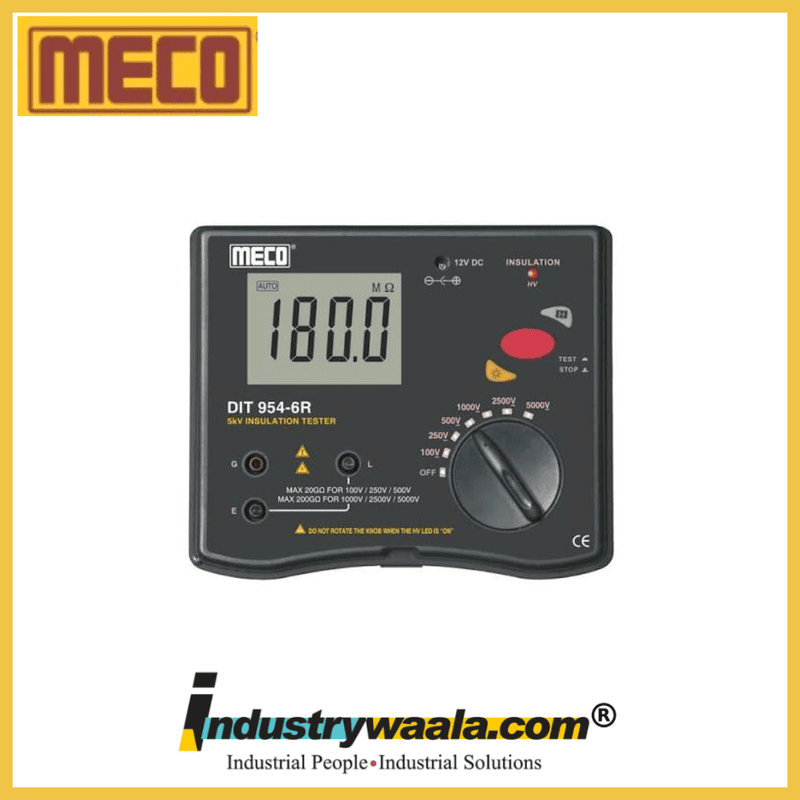

The Meco DIT 954-6R Digital Insulation Tester is an advanced and reliable testing instrument designed for professional insulation resistance measurement and preventive maintenance of electrical equipment. It helps engineers and technicians evaluate insulation quality, identify insulation deterioration, and prevent electrical failures in industrial and commercial installations.
This model provides six selectable DC insulation test voltages including 100V, 250V, 500V, 1000V, 2500V, and 5000V, making it suitable for testing a wide range of low-voltage and high-voltage electrical systems. The instrument measures insulation resistance from 0.1 MΩ up to 200 GΩ, providing accurate results for critical electrical maintenance applications.
The Meco DIT 954-6R is ideally suited for testing:
Power transformers
High-voltage switches
Motors and generators
Electrical cables
Industrial machinery
Electrical appliances
Power capacitors
High-voltage electrical systems
The tester features a 3½ digit (1999 counts) large LCD display with green backlight and annunciators, allowing easy reading of measurement values in different lighting conditions. The built-in Red LED High Voltage Indicator provides a safety warning during insulation testing.
The instrument offers range selection and single-person push-button operation, allowing quick and convenient testing without additional assistance. The auto-range insulation test function automatically selects the suitable measurement range, improving testing efficiency.
The DIT 954-6R includes a data holding function for recording readings during inspections. It also incorporates a protection circuit to prevent damage caused by reverse voltages, improving reliability and safety during field operations.
Designed for industrial environments, the tester complies with IS 10656-1983, IEC/EN 61010-1 & 61010-31 safety standards, and IEC 61326-1 Class B EMC standards. It provides CAT III 600V overvoltage protection and IP44 protection, making it suitable for demanding electrical testing conditions.
The Meco DIT 954-6R operates on eight 1.5V AA batteries with AC adaptor support, making it convenient for both field and workshop applications. It is supplied with high-voltage insulation test leads, batteries, AC adaptor, heavy-duty carrying bag, instruction manual, and calibration certificate.
Key Features:
5kV Digital Insulation Tester
6 selectable insulation test ranges
100V DC
250V DC
500V DC
1000V DC
2500V DC
5000V DC
Insulation resistance measurement up to 200 GΩ
Large 3½ digit (1999 counts) LCD display
Green backlight display
Auto-range insulation testing
Range selection facility
Single-person push-button operation
Data Hold function
High Voltage Red LED indicator
Reverse voltage protection circuit
CAT III 600V overvoltage protection
IP44 protection
Battery operated with AC adaptor
Suitable for PI & DAR calculation manually
Complies with IS 10656-1983 standards
