| Brand | Meco |
| Model | DIT 954 |
| Product Type | Digital Insulation Tester |
| Test Voltage | 1000V / 2500V / 5000V DC |
| Insulation Resistance Range | 0.1 MΩ to 200 GΩ |
| AC Voltage Measurement | 0–600V AC (40–60Hz) |
| Phase Sequence Test | 100V–450V Phase to Phase |
| Display | 3½ Digit LCD |
| Display Count | 1999 Counts |
| Digit Height | 29 mm |
| Backlight Green | LCD Backlight |
| Data Hold | Available |
| Auto Range | Available |
| High Voltage Indicator | Red LED |
| Power Supply | 8 × 1.5V AA Batteries + AC Adaptor |
| Safety Standard | IEC/EN 61010-1 & 61010-31 |
| EMC Standard | IEC 61326-1 Class B |
| Over Voltage Category | CAT III 600V |
| Protection Rating | IP44 |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 50°C |
| Weight | 1 kg |
| Dimensions (L x W x H) | 7.5 x 19 x 15.5 cm |

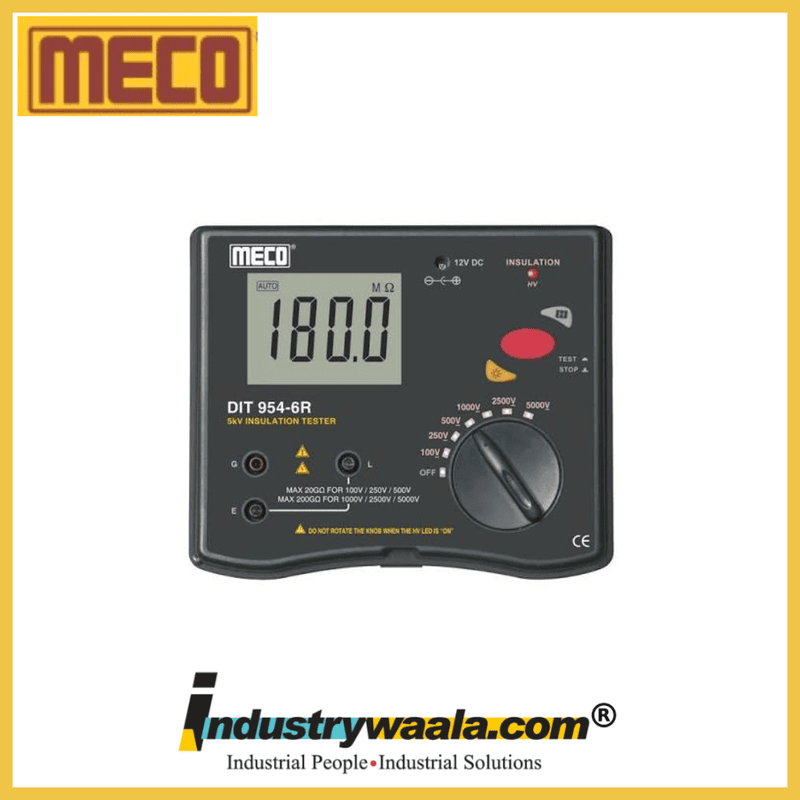

The Meco DIT 954 Digital Insulation Tester is an advanced and reliable electrical testing instrument designed for professional insulation resistance measurement and preventive maintenance applications. It helps electrical engineers and technicians evaluate insulation conditions, identify insulation deterioration, and prevent electrical failures in industrial and commercial electrical systems.
The tester provides three selectable DC insulation test voltages – 1000V, 2500V, and 5000V, allowing testing of a wide range of electrical equipment. It measures insulation resistance from 0.1 MΩ up to 200 GΩ, making it suitable for high-voltage equipment inspection and critical maintenance operations.
The Meco DIT 954 is ideally suitable for testing:
Power transformers
High-voltage switches
Motors and generators
Electrical cables
Industrial machines
Electrical appliances
Power capacitors
High-voltage electrical systems
The instrument is equipped with a 3½ digit (1999 counts) large LCD display with green backlight, providing clear visibility of readings even in low-light working environments. The built-in Red LED High Voltage Indicator alerts users during insulation testing for improved safety.
The DIT 954 offers single-person push-button operation with range selection and auto-range insulation testing, allowing technicians to perform tests quickly and efficiently. The Data Hold function helps record readings during inspection and maintenance work.
This model also provides additional electrical testing functions including AC voltage measurement up to 600V AC, phase sequence testing between phase-to-phase voltage, and phase status indication with LED and beep facility. These features make it a versatile tool for electrical troubleshooting and preventive maintenance.
The instrument includes an inbuilt protection circuit to prevent damage from reverse voltages and is designed according to IS 10656-1983, IEC/EN 61010-1 & 61010-31 safety standards, and IEC 61326-1 Class B EMC standards. It also provides CAT III 600V overvoltage protection and IP44 protection for industrial environments.
The Meco DIT 954 operates using eight 1.5V AA batteries with AC adaptor support, making it suitable for both field testing and workshop applications. It is supplied with high-voltage insulation test leads, phase sequence measurement wires, batteries, AC adaptor, carrying bag, instruction manual, and calibration certificate.
Key Features:
5kV Digital Insulation Tester
Three insulation test voltages
1000V DC
2500V DC
5000V DC
Insulation resistance measurement up to 200 GΩ
AC voltage measurement up to 600V AC
Phase Sequence & Phase Status indication
3½ digit (1999 counts) large LCD display
Green backlight display
Auto-range insulation testing
Range selection facility
Single-person push-button operation
Data Hold function
Red LED High Voltage warning indicator
Reverse voltage protection circuit
Battery operated with AC adaptor
Suitable for PI & DAR calculation manually
CAT III 600V protection
IP44 protection rating
