| Brand | Meco |
| Model | HIT 1K - 2 |
| Product Type | Analog Insulation Tester (Hand Cranking Type) |
| Test Voltage | 1000V DC |
| Insulation Resistance Range | 0–200 MΩ |
| Display Type | Analog |
| Accuracy | ±1% Full Scale |
| Scale Length | Approx. 65 mm |
| Operating Method | Manual Hand Cranking |
| Cranking Speed | Approx. 120 RPM |
| Measurement Range | 10% to 100% of Insulation Resistance Range |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Relative Humidity | Maximum 80% |
| Insulation Resistance Between Circuit & Case | More than 20 MΩ at 500V |
| Accessories | Test & Calibration Certificate, Crocodile Test Leads, Carrying Case, Instruction Manual |
| Weight | 1 kg |
| Dimensions (L x W x H) | 15 x 21 x 12 cm |

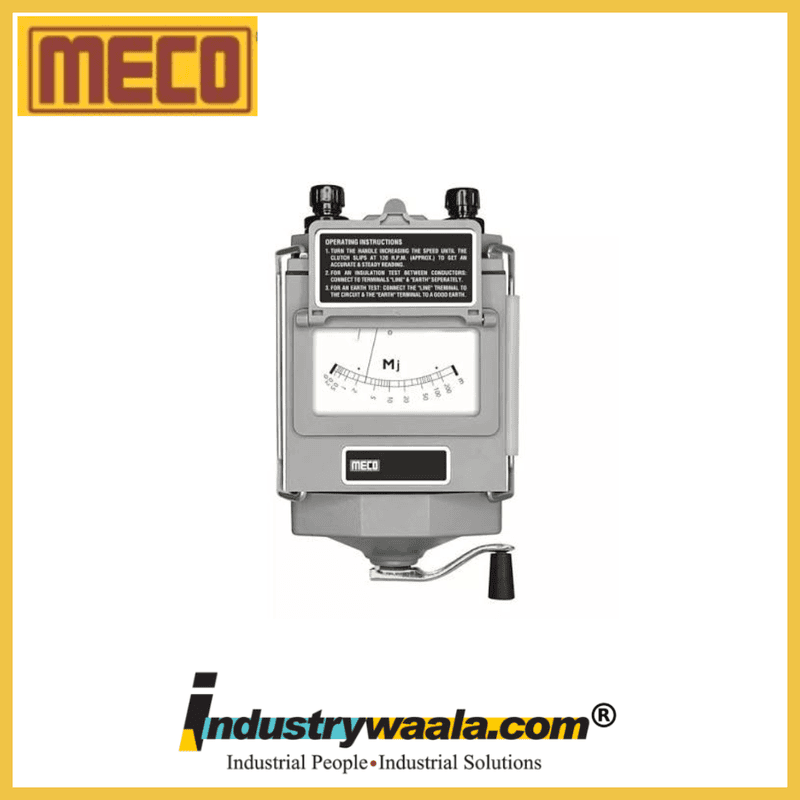

The Meco HIT 1K-2 Analog Insulation Tester is a reliable and durable hand cranking type insulation resistance measuring instrument designed for electricians, maintenance engineers, and industrial professionals. It is specially developed for checking insulation quality and identifying insulation weaknesses in electrical equipment and installations to ensure safe and efficient operation.
The tester operates with a 1000V DC test voltage and provides an insulation resistance measurement range of 0–200 MΩ, making it suitable for a wide range of electrical testing applications. The Meco HIT 1K-2 is ideal for insulation resistance measurement of:
Electrical motors and transformers
Generators and industrial machines
Electrical panels and switchgear
Power distribution cables
Communication and telecom cables
Industrial, commercial, and residential installations
Household appliances such as washing machines, mixers, and toasters
The HIT 1K-2 features a single-person hand-driven mechanism with an approximate 120 RPM cranking speed, providing stable output voltage and accurate insulation readings. Its 65 mm analog scale allows easy reading of measurement values, while the ±1% Full Scale accuracy ensures reliable and repeatable testing performance.
The instrument is equipped with a Guard Terminal that helps reduce measurement errors caused by surface leakage current, improving testing accuracy. Its rugged plastic/metal protective casing helps prevent moisture ingress and provides excellent durability for industrial and field applications.
The Meco HIT 1K-2 provides measurement from 10% to 100% of the insulation resistance range and delivers steady and accurate readings during testing. It is supplied with essential accessories including a test and calibration certificate, crocodile/alligator test leads, carrying case, and instruction manual, making it ready for professional insulation testing applications.
Key Features:
1000V DC insulation test voltage
0–200 MΩ insulation resistance range
Hand cranking type operation
Single-person hand-driven design
High accuracy:
±1% Full ScaleApprox. 120 RPM cranking speed
Approx. 65 mm analog scale length
Provides steady output voltage
Guard terminal to minimize surface leakage errors
Measurement from 10% to 100% of insulation resistance range
Rugged plastic/metal moisture-resistant housing
Suitable for motors, transformers, generators, cables, panels, and machines
Supplied with test leads, carrying case, calibration certificate, and instruction manual
