| Brand | Meco |
| Model | LDM100+ |
| Product Type | Laser Distance Meter |
| Measuring Range | 0.05 to 100 m |
| Accuracy | ±1.5 mm |
| Measurement Time | 0.25 to 1 Second |
| Measurement Units | m / in / ft / ft'in" |
| Smallest Display Unit | 1 mm |
| Laser Class | Class II |
| Laser Type | 630–670 nm, <1mW |
| Historical Storage | 99 Readings |
| Battery Type | 1.5V AAA × 2 |
| Battery Life | Up to 5000 Measurements |
| Protection Rating | IP40 |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Weight | 1 kg |
| Dimensions (L x W x H) | 4.4 x 2.6 x 11 cm |

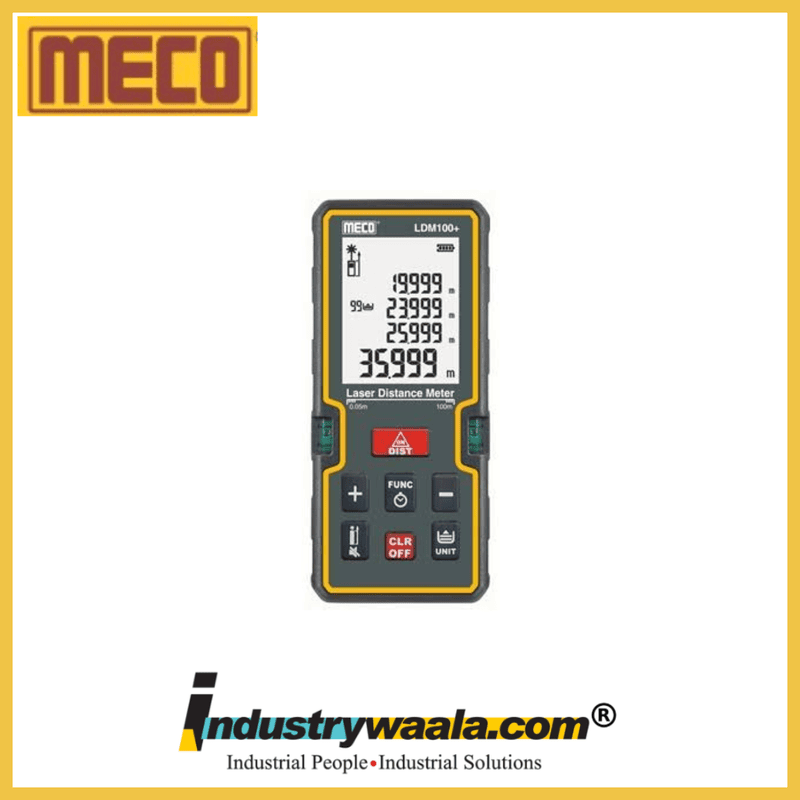

The Meco LDM100+ Laser Distance Meter is an advanced precision measuring device designed for professionals who require fast and reliable distance measurement. It replaces traditional measuring tapes by providing accurate laser-based measurements with minimum effort and improved efficiency.
The instrument offers a wide measurement range of 0.05 meters to 100 meters with measurement accuracy of ±1.5 mm. The laser technology enables users to measure distances quickly and accurately, making it highly useful for construction sites, building inspections, electrical installations, interior projects, and industrial applications.
The LDM100+ comes with multiple intelligent measurement functions such as single distance measurement, continuous measurement, addition and subtraction, area calculation, volume calculation, wall area measurement, triangular area calculation, Pythagoras indirect measurement, and stake-out measurement. These functions help users perform complex calculations directly through the meter without manual calculations.
The device features a clear LCD display with illumination for easy viewing in different lighting conditions. It also provides MAX/MIN measurement, timer function, front/back benchmark selection, battery indicator, laser emission indicator, and stored data display. The built-in memory allows storage of up to 99 historical measurements, helping professionals review previous readings when required.
Its compact handheld design makes the Meco LDM100+ easy to carry and operate at different work locations. With low power consumption, IP40 protection, and long battery life of up to 5000 measurements, it is a dependable tool for engineers, contractors, surveyors, architects, and maintenance professionals.
Key Features:
1. Long Range Laser Measurement
The Meco LDM100+ provides:
Measurement Range: 0.05 m to 100 m
Accuracy: ±1.5 mm
Resolution: 1 mm
It delivers accurate measurements for professional distance calculation requirements.
2. Multiple Measurement Functions
The instrument supports:
Single Distance Measurement
Continuous Measurement
Addition & Subtraction
Area Calculation
Volume Calculation
Wall Area Measurement
Triangular Area Measurement
Pythagoras Measurement
Stake-Out Function
These functions make it suitable for advanced construction and engineering measurements.
3. Smart Display & Memory Function
Features include:
Backlight LCD Display
MAX/MIN Measurement
Battery Indicator
Laser Emission Indicator
Front/Back Reference Selection
99 Measurement Data Storage
Suitable for professional documentation and repeated measurements.
4. Compact & Portable Design
The lightweight design allows easy handling for:
Construction Engineers
Architects
Interior Designers
Surveyors
Electrical Contractors
Maintenance Technicians
5. Energy Efficient Operation
The LDM100+ provides:
Up to 5000 Measurements Battery Life
Auto Laser Switch Off After 30 Seconds
Auto Power Off After 3 Minutes Inactivity
This ensures longer operating performance during field work.
