| Brand | Meco |
| Model | MC-906 |
| Product Type | Analog Insulation Tester |
| Test Voltage | 1000V DC |
| Insulation Resistance Range | 0–200 MΩ |
| Display | Analog |
| Accuracy | ±5% of indicated value |
| Scale Length | Approx. 80 mm |
| Power Supply | 6 × 1.5V AA Batteries (9V) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Relative Humidity | Maximum 80% |
| Dielectric Strength | 3.5 kV AC at 50 Hz for 1 minute |
| Safety Standard | IEC 61010 Installation Category II (1000V Phase-Earth) |
| Standard Compliance | Generally conforms to IS 10656-1983 |
| Weight | 1 kg |
| Dimensions (L x W x H) | 7.25 x 14.45 x 9.5 cm |

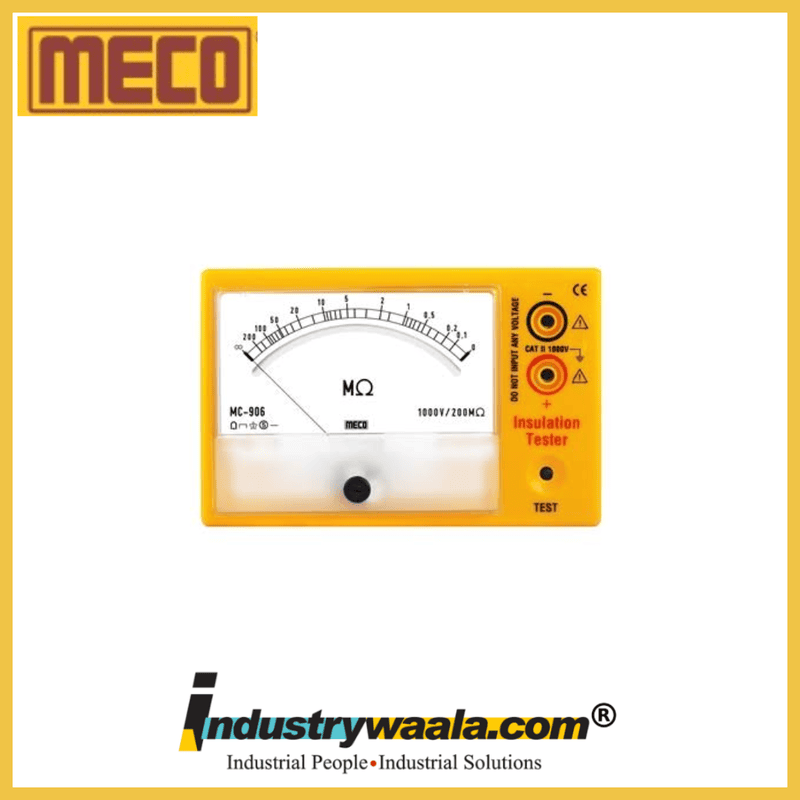

The Meco MC-906 Analog Insulation Tester is a reliable and easy-to-use insulation resistance measuring instrument developed for electricians, maintenance engineers, utilities, and industrial professionals. It generates a 1000V DC test voltage and measures insulation resistance from 0 to 200 MΩ, making it suitable for evaluating the insulation quality of electrical equipment and installations.
Designed for demanding industrial environments, the MC-906 features a high-visibility analog display that allows technicians to obtain quick and accurate readings without requiring complex settings. The tester uses a single-person push-button operation, enabling fast and convenient insulation testing in both field and workshop applications.
The rugged ABS yellow housing with a polycarbonate meter front cover provides excellent durability against everyday wear and impact. The instrument offers ±5% accuracy within the effective measuring range and is designed to comply with IEC 61010 Installation Category II (1000V Phase-Earth) while generally conforming to IS 10656-1983 standards, ensuring dependable performance and operator safety.
The MC-906 is ideal for measuring insulation resistance of:
Electric motors and generators
Power transformers
Industrial machines
Distribution and communication cables
Commercial and residential electrical installations
Household electrical appliances including washing machines, mixers, and toasters
Powered by six 1.5V AA batteries (9V), the tester is lightweight and portable for on-site maintenance. It comes complete with crocodile test leads, batteries, a carrying case, and a test & calibration certificate, making it ready for immediate use. Whether used for routine preventive maintenance or fault diagnosis, the Meco MC-906 delivers accurate, reliable, and long-lasting performance.
Key Features:
1000V DC insulation test voltage
Insulation resistance range:
0–200 MΩHigh accuracy of ±5% of indicated value
Easy single-person push-button operation
Durable ABS resin body with polycarbonate meter cover
Large analog display for clear readings
Ideal for motors, transformers, cables, generators, and electrical installations
IEC 61010 Installation Category II compliant
Battery-powered portable design
Supplied with batteries, carrying case, test leads, and calibration certificate
