| Model | MECO PM-ADC-5R |
| Display | 5-Digit LCD with Backlight |
| Measurement Type | DC Current |
| Current Ranges | 0–2 mA, 0–20 mA, 0–200 mA, 0–2 A, 0–20 A |
| Accuracy | ± (0.5% Reading + 3 Digits) |
| Resolution | 0.0001 to 1 Count (Depending on Range) |
| Sampling Rate | 3 Samples/Second |
| Maximum Overload | 1.2 Times Continuous |
| Power Supply | 4 × 1.5V AA Batteries |
| Optional Power | 6V DC Adapter |
| USB Interface | Standard |
| Power Consumption | < 0.2 VA |
| Protection | Overload Protection |
| Operating Temperature | 0°C to +50°C |
| Weight | 1 kg |
| Dimensions (L x W x H) | 24 x 17 x 8 cm |

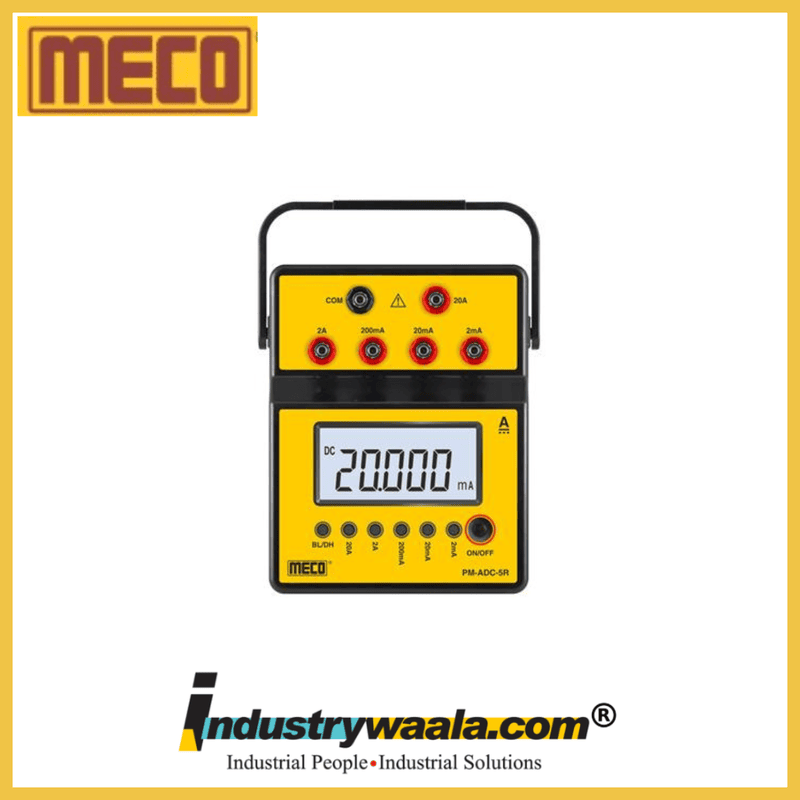

The MECO PM-ADC-5R Digital Multi-Range Portable Meter is a high-precision 5-digit DC Digital Ammeter engineered to deliver reliable and accurate DC current measurements across multiple ranges. Designed using advanced microcontroller technology and SMT (Surface Mount Technology), the instrument ensures stable performance without the wear and inaccuracies associated with conventional moving-coil meters.
The meter provides five selectable DC current ranges, making it suitable for a wide variety of electrical and electronic testing applications:
0–2 mA
0–20 mA
0–200 mA
0–2 A
0–20 A
Its high-resolution 5-digit LCD display with backlight ensures excellent visibility in laboratories, workshops, and field environments. Built-in features such as USB connectivity, Data Hold, Auto Power Off, Low Battery Indication, and Overload Protection enhance convenience, safety, and productivity during testing.
The rugged ABS enclosure with an integrated tilt stand makes the PM-ADC-5R ideal for both bench-top and portable use. Designed for continuous operation, it is widely used in calibration laboratories, industrial maintenance, educational institutions, production testing, quality control, and research laboratories. The instrument also serves as a reliable reference meter for verification and recalibration of secondary standard instruments. A Calibration Certificate traceable to NABL is included for dependable measurement assurance.
Key Features:
- 5-Digit DC Multi-Range Digital Ammeter
- Precision Class 0.5 Accuracy
- Five DC Current Measurement Ranges
- Current Range: 0–2 mA to 0–20 A
- Bright LCD Display with Backlight
- USB Interface for Data Transfer
- Data Hold Function
- Auto Power Off
- Low Battery Indication
- Overload Indication & Protection
- Microcontroller-Based Design
- No Moving Parts for Long-Term Accuracy
- Rugged Portable Casing with Tilt Stand
- Calibration Certificate Traceable to NABL
- Suitable for Laboratory, Industrial & Field Applications
