| Brand | Meco |
| Model | VBSM6246 |
| Product Type | Vehicle Battery System Meter |
| Battery Voltage | 12V / 24V |
| CCA Range | 100 ~ 1700 |
| IEC Range | 100 ~ 1000 |
| EN Range | 100 ~ 1700 |
| DIN Range | 100 ~ 1000 |
| Battery Measurement | Voltage, Internal Resistance, CCA |
| Battery Condition Display | GOOD / OK / Pay Attention / Replace |
| Cable Length | Approx. 700 mm |
| Display | LCD with Backlight |
| Safety Rating | CAT III 600V |
| Protection | Reverse Polarity & Overload Protection |
| Weight | 1 kg |
| Dimensions (L x W x H) | 9 x 3.2 x 18 cm |

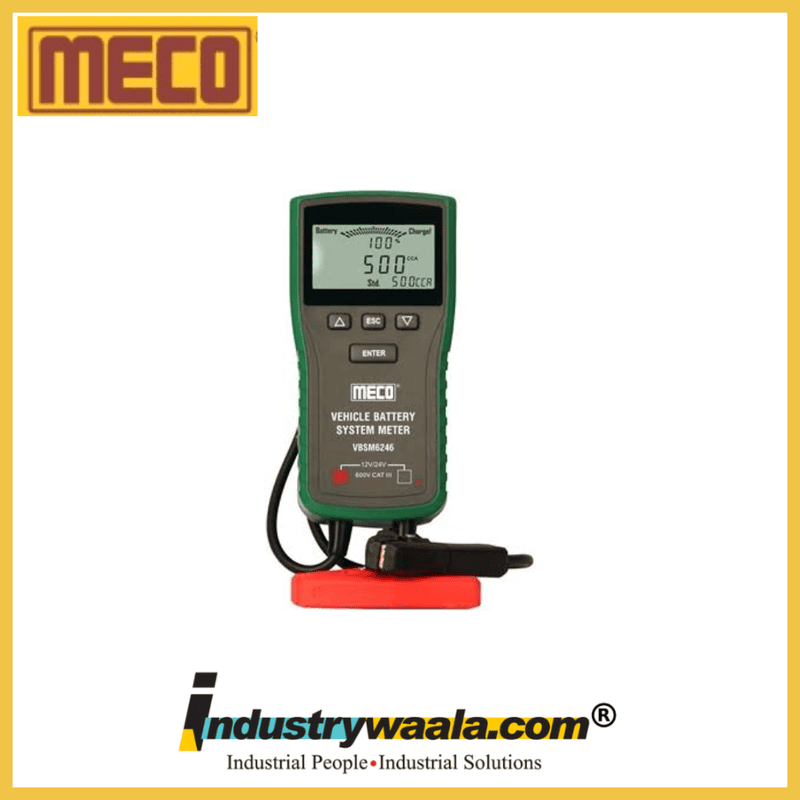

The Meco VBSM6246 Automotive Battery Meter is an advanced diagnostic tool developed for testing vehicle batteries and electrical systems. It provides quick and accurate analysis of battery performance without requiring battery removal from the vehicle.
The meter is designed to test 12V and 24V automotive batteries and helps technicians evaluate battery health by measuring Cold Cranking Amps (CCA), internal resistance, and battery voltage. It also performs engine activation load testing and charging system checks, making it a complete solution for automotive electrical diagnostics.
The VBSM6246 supports multiple battery rating standards including CCA, IEC, EN, and DIN, allowing compatibility with different battery specifications used in automotive applications. Its large LCD display with backlight provides clear readings even in low-light workshop conditions.
Key Features:
1. Complete Vehicle Battery Diagnosis
The Meco VBSM6246 analyzes important battery parameters including:
Battery Voltage
Internal Resistance
Cold Cranking Amps (CCA)
Battery Condition
Charging System Performance
This helps technicians identify weak batteries and prevent unexpected failures.
2. Supports 12V & 24V Batteries
The tester is designed for automotive applications requiring testing of both 12V and 24V battery systems, making it suitable for cars, commercial vehicles, trucks, and fleet vehicles.
3. Multiple Battery Rating Standards
The instrument supports automatic conversion between:
CCA
IEC
EN
DIN
This allows accurate testing of different battery brands and specifications.
4. Safety Protection Features
The VBSM6246 includes advanced safety functions such as:
Reverse Polarity Protection
Overload Protection
Loose Lead Detection
Bad Cell Detection
These features improve operator safety and measurement reliability.
5. Easy Battery Condition Evaluation
The meter provides simple battery status indications:
GOOD
OK
Pay Attention
Replace
This allows quick decision-making during vehicle servicing.
